1971-1976 Caprice/Impala and related B-Body
*Also fits a host of other 2WD models incl C10/C10 Blazer, Suburban/C15 and many more.
One-Off SPECIAL Offer:
A 15" Front and Rear Combo from below, with drilled and slotted rotors.
In the new Miami Autodrone Teal finish!
Shipped $5500
Please Review the Spindle information at the bottom!
TCE will not exchange or replace bearings or hubs free of charge. You must know what you need.
|
Front Kits
|
Ordering
|
|
TCE Budget 13" Front Kit
- Wilwood FSL calipers (4 piston)
- Choice of BLACK or RED powder coat finish

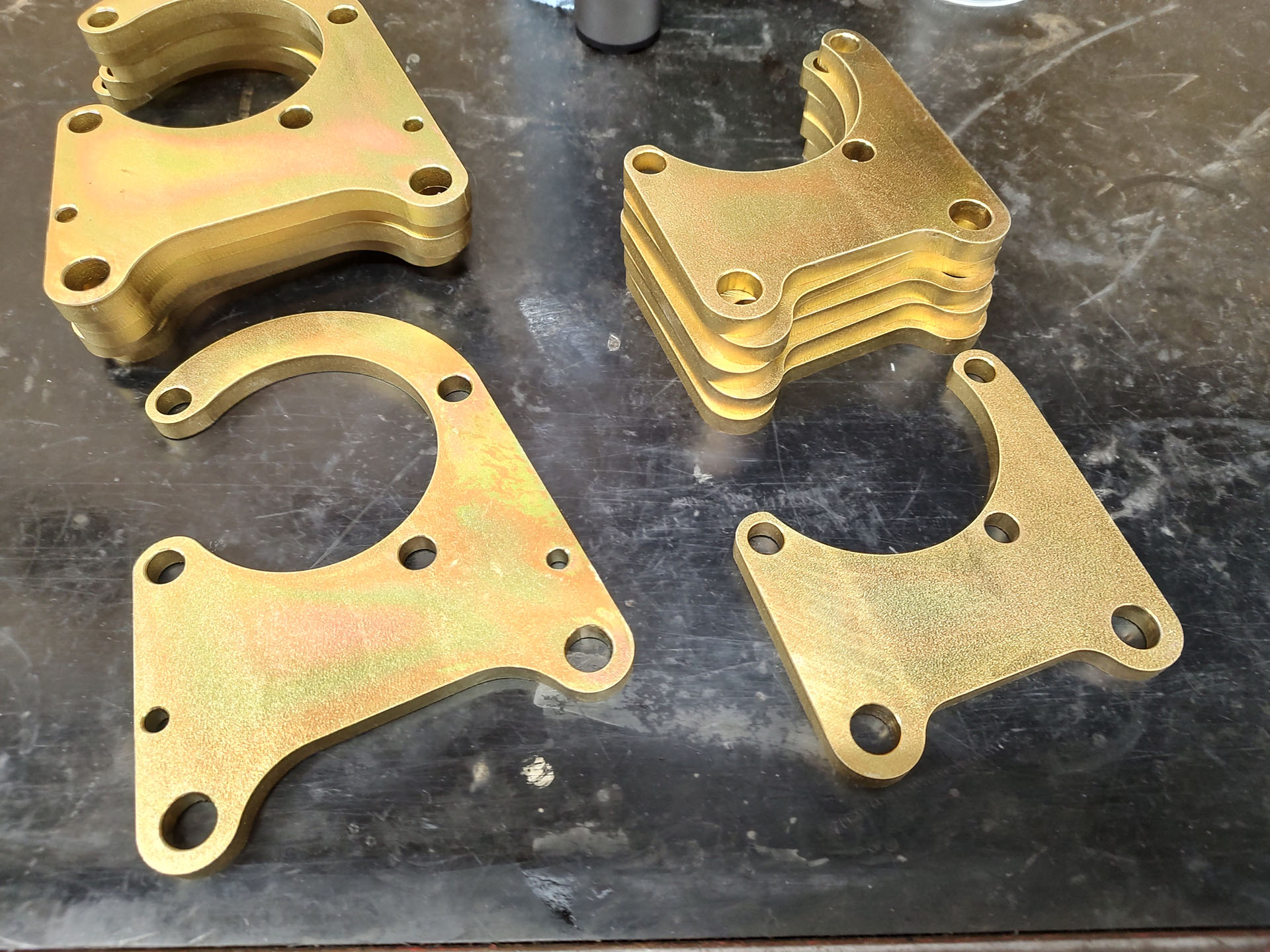

- TCE spec steel mounting brackets
- 13" directional cast rotors
- Drilled and slotted
- Wilwood aluminum rotor hats
- BP10 pads
- TCE spec stainless steel hose kit
- TCE custom 5 on 5" or 5 on 4.75" hubs
- New bearings: Set 3 and Set 5 for 5x5 orders
- New bearings: Set 3 and Set 6 for 5x4.75 orders
- New seals and longer studs
- All required hardware
- Optional spindle mods
|
Application: Base kit offering big kit performance. Get better braking and looks with our new 13" kit. This kit will exceed the function of the stock front brakes and offers improved performance without the higher costs of our popular 15 and 16" kits.
Fit: Requires 17" and larger wheels.
Notes: Requires spindle modification. You can DIY or select to have TCE modify your spindles in the Ordering table. You must send your spindles to us. Expect 3-4wks. Increases track width .25" per side. TCE kits have been engineered to fit GM spindles. The use of aftermarket or reproduction spindles is on the end user.
READ and understand your bearing requirements below. TCE will not exchange hubs and bearings free of charge. You get what is noted to the left unless you contact us with your spedic needs.
|
YOU MUST SHIP US YOUR SPINDLES FOR THIS OPTIONAL PROCESS
|
|
The 15" kit
- Wilwood SX6 calipers (6 piston)
- Choice of BLACK or RED powder coat finish
- TCE billet aluminum radial mount brackets
- 15" x 1.25" directional cast rotors
- Slotted rotors standard
- Wilwood aluminum rotor hats
- BP10 pads
- TCE spec stainless steel hose kit
- TCE custom 5 on 5" or 5 on 4.75" hubs
- New bearings: Set 3 and Set 5 for 5x5 orders
- New bearings: Set 3 and Set 6 for 5x4.75 orders
- New seals, and longer studs
- All required hardware
- Optional drilled and slotted rotors
- Optional spindle mods
|
Application: For those who know what big brakes are all about; this kit sets the standard for simple bolt on performance. Proven products combine with our rear kit for a fully matched appearance!
Fit: Requires 19" or larger wheels.
Notes: Requires spindle modification. You can DIY or select to have TCE modify your spindles in the Ordering table. You must send your spindles to us. Expect 3-4wks. Increases track width .25" per side. TCE kits have been engineered to fit GM spindles. The use of aftermarket or reproduction spindles is on the end user.
READ and understand your bearing requirements below. TCE will not exchange hubs and bearings free of charge. You get what is noted to the left unless you contact us with your spedic needs.
|
YOU MUST SHIP US YOUR SPINDLES FOR THIS OPTIONAL PROCESS
|
|
The 16" kit
- Wilwood TC6 six piston calipers
- Choice of BLACK or RED powder coat finish
- TCE billet aluminum radial mount brackets
- 16" x 1.375" directional cast rotors
- Slotted rotors standard
- Wilwood aluminum rotor hats
- BP10 pads
- TCE spec stainless steel hose kit
- TCE custom 5 on 5" or 5 on 4.75" hubs
- New bearings: Set 3 and Set 5 for 5x5 orders
- New bearings: Set 3 and Set 6 for 5x4.75 orders
- New seals, and longer studs
- All required hardware
- Optional drilled and slotted rotors
- Optional spindle mods
|
Application: When the wheels go up so do the demands placed on the braking system. The TCE 16" kit takes Impala braking to a whole new level! Wilwood truck proven calipers are at home here as they are on an Escalade.
Fit: Requires 20" or larger wheels.
Notes: Requires spindle modification. You can DIY or select to have TCE modify your spindles in the Ordering table. You must send your spindles to us. Expect 3-4wks. Increases track width .25" per side. TCE kits have been engineered to fit GM spindles. The use of aftermarket or reproduction spindles is on the end user.
READ and understand your bearing requirements below. TCE will not exchange hubs and bearings free of charge. You get what is noted to the left unless you contact us with your spedic needs.
|
YOU MUST SHIP US YOUR SPINDLES FOR THIS OPTIONAL PROCESS
|
|
Rear Kits
|
Ordering
|
|
TCE Budget 13" Rear Kit
- Wilwood FSL calipers (4 piston)
- Choice of BLACK or RED powder coat finish
- TCE spec steel mounting brackets
- 13" directional cast rotors
- Drilled and slotted
- Wilwood aluminum rotor hats
- 5 on 5" Stud pattern
- BP10 pads
- TCE spec stainless steel hose kit
- Assortmenbt of oversized C-clips (3 thicknesses)
- TCE spec stainless steel hose kit
- All required hardware
- Optional "Low Hung" base plates
|
Application: Adding a rear kit enhances both the look AND the function of your total build. Fit one of our 13" rear kits to match the new 13" front kit and enjoy the benefits of big brakes! These are NON parking brake kits.
Fit: Requires 17" or larger wheels. C-Clip rear axle.
Notes: These kits requires the removal and adjustment of what is called 'axle float'. This will be done by working on the differential and installing an assortment of the supplied C-clips to get the float to a space of .006-.008" when done. Installation of this kit should be left to a qualified professional.
Low Hung base plates for tubbed cars requiring caliper to frame cleraance.
|
|
|
The 15" kit
- Wilwood Aero4 four piston calipers
- Choice of BLACK or RED powder coat finish
- TCE billet aluminum radial mount brackets
- 15" x 1.25" directional cast rotors
- Slotted rotors standard
- Wilwood aluminum rotor hats
- 5 on 5" Stud pattern
- BP10 pads
- TCE spec stainless steel hose kit
- All required hardware
- Assortment of oversized C-clips (3 thicknesses)
- Optional drilled and slotted rotors
- Optional "Low Hung" base plates
|
Application: Adding a rear kit enhances both the look AND the function of your total build. Fit one of our 15" rear kits on your ride and see what the butt end of your car will do to slow you down! These are NON parking brake kits.
Fit: Requires 19" or larger wheels. C-Clip rear axe
Notes: These kits requires the removal and adjustment of what is called 'axle float'. This will be done by working on the differential and installing an assortment of the supplied C-clips to get the float to a space of .006-.008" when done. Installation of this kit should be left to a qualified professional.
Low Hung base plates for tubbed cars requiring caliper to frame cleraance.
|
|
|
The 15" kit **Late 1976**
For NON C-Clip Rear Axle- Must verify
- Wilwood Aero4 four piston calipers
- Choice of BLACK or RED powder coat finish
- TCE billet aluminum radial mount brackets
- 15" x 1.25" directional cast rotors
- Slotted rotors standard
- Wilwood aluminum rotor hats
- 5 on 5" Stud pattern
- BP10 pads
- TCE spec stainless steel hose kit
- All required hardware
- Optional drilled and slotted rotors
|
Application: Adding a rear kit enhances both the look AND the function of your total build. Fit one of our 15" rear kits on your ride and see what the butt end of your car will do to slow you down! These are NON parking brake kits.
Fit: Requires 19" or larger wheels.

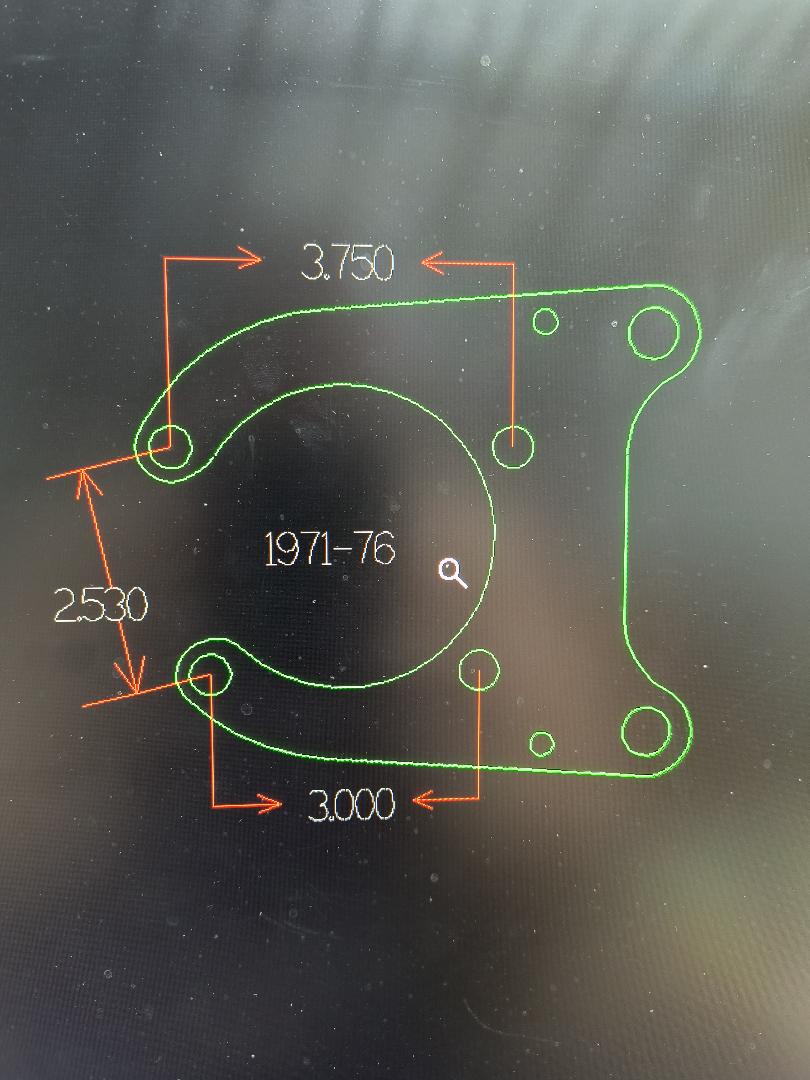

Notes: This kit is for the NON C-Clip rear axle. It uses an alternative base plate that fits around the retainer plate
|
|
THE FINE PRINT:
FITMENT: It is up to the consumer to verify proper vehicle and wheel fit. Wheel clearance requirements can be found on the WHEEL FIT page in the TOOLBOX above. If you are unsure of the fit or application please call or email prior to ordering. TCE makes no guarantee of wheel clearance.
TERMS AND CONDITIONS: All sales subject to 20% restocking fee. Return shipping is on you. No credit will be given for installed, mishandled or damaged goods.
SHIPPING: Shipping charges will be applied in the Shopping Cart prior to check out. Prices are based on an average delivery zone. Additional shipping charges will apply to AK, CA and HI. Call before you order for details.
|
15" Front Kit
|

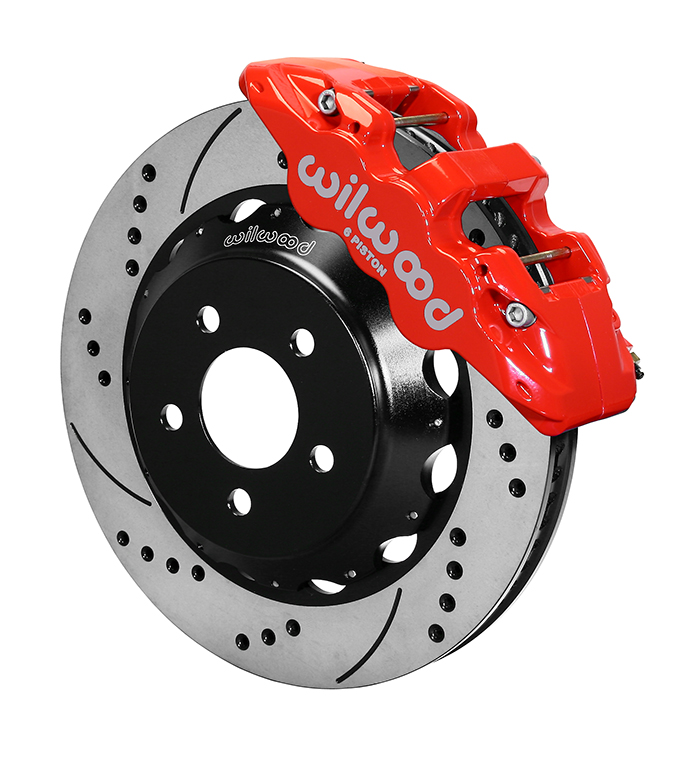

15" Front Drilled & Slotted
|

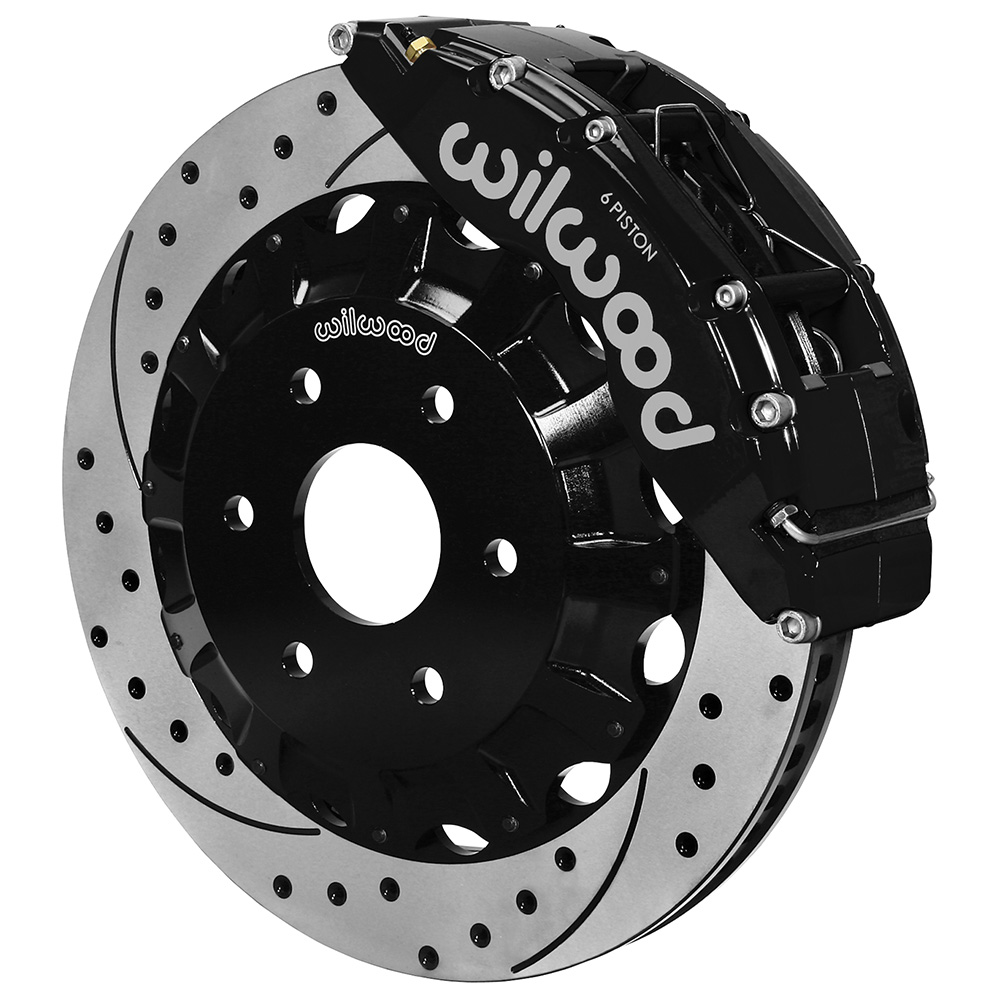

16" Drilled & Slotted
|
16" Drilled & Slotted
|
|

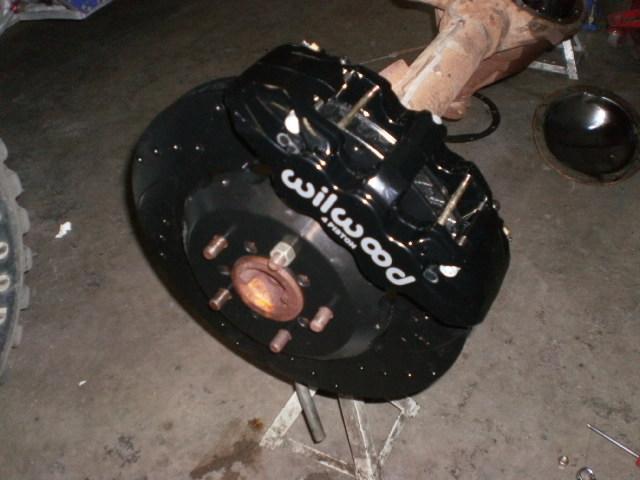

15" Rear Kit
|
15" Rear Drilled & Slotted
|
13" Budget Kit
Black or Red, Drilled and Slotted
|

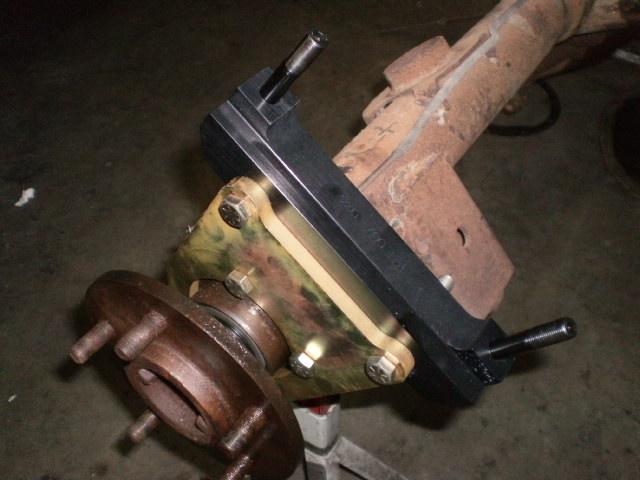

Optional Low Hung Base Plate
|
 |
 |
Modified Early Caprice
|
Before/After Spindle Mods
|
|
These kits are disigned to use the factory B-Body spindle only.
If your wish to purchase new spindles Summit Racing has them. But...
1. You must order the Correct Spindles! The spindle on the left is a G-body part. Despite the fine print that you can use a stock Caprice rotor it does not matter to TCE as we are not selling you stock Caprice rotors. Your purchase must match that of the hubs and bearings TCE supplies. Which vary in the late '70s to later '80s.
2. The correct Summit Racing spindles use Set 3 and Set 6 wheel bearings. They will work with both 5" as well as 4.75" wheel stud partterns. But..! You must notify TCE of your using these items so we can be sure you receive the proper parts. A standard early Caprice uses sets 3 & 5 which will not work on these spindles.
3. Spindle diamter: If you do not know wha you have then you must Mic the diamter of the spindle (the snout) at the larger spot where the inner bearing rides. All the outer or smaller bearings are the same: Set 3 = .750" . The largr diamter porition changes and is critical to you order: Set 5 is 1.375" and Set 6 is 1.250"
4. TCE is not replacing free of charge incorrectly ordered hubs and bearings. The parts listed per kit as shown above and that's what we will ship UNLESS you notify us via email that you need a different combination.
|
|
NOT a B-Body spindle
Does not fit the above kits
|
B-body Spindle
Uses sets 3 and 6 bearings
Can be used in both 5 x 5 and 5 x 4.75 builds
|
|
