Plus 1: The 13" Street kit- $1469

  *Sale: Drilled only Kits $1300!

TCE has a couple sets of drilled only (not slotted) rotors we wan to move off the shelf, add them to this kit and take the entire pacakage for the low, low price of only $1300 plus shipping. A bargain price even before the drilled option!

• Wilwood DP6 calipers w/ss pistons (6 piston)

• Choice of BLACK or RED powder coat finish
• CNC'd aluminum mounting brackets

• TCE billet aluminum rotor hats

• 13.0" x .81" directional cast rotors
• Gas slotted and zinc plated
• BP-10 pads

• TCE spec stainless steel flex lines
• Optional cross drilled rotor finish- ADD $135

APPLICATION: This value packed kit puts the Solstice into serious braking performance yet retains a low profile for wheel clearance. Standard are directional, gas slotted and zinc plated 13" rotors with DynaPro Six calipers. Combined with our .81" rotors it still keeps wheel fit options open where others companies can't. Nets up to 11lbs per corner weight savings also!

FIT: Fits stock and many after market 17" and larger wheels.

NOTES:

Plus 1 HD- $1499

The "HD" version is identical to the above kit but includes 1.10 wide rotors rather than the .810 parts. This wider rotor increases thermal mass for more heat saturation when more spirited driving place greater demands on the kit.

APPLICATION: The HD kit enhances the above kit by replacing the .810 rotors with heavier 1.10" wide parts while retaining the DP6 caliper. This kit can take track day punishment for a longer time as cooling is enhanced. Wheel clearance is compromised as the caliper is now closer to the wheel, available with the same options listed above.

FIT: Fits after market 17" and larger wheels, may fit stock wheels with minimal wheel spacer.

• Wilwood FSL calipers w/ss pistons (4 piston)
• Steel mounting brackets

• TCE billet aluminum rotor hats

• 13.0" x 1.10" directional cast rotors
• Gas slotted and zinc plated

• BP-10 pads

• TCE spec stainless steel flex lines

• Optional BSL6 calipers- ADD $275

• Optional RED powder coat finish- ADD $125
• Optional cross drilled rotor finish- ADD $135

APPLICATION:  This kit pushes the Solstice into serious braking performance. Standard are over sized, directional, gas slotted 13" rotors with full size Forged SuperLite (FSL) calipers. A true work horse for both street and track duty use! The FSL caliper offers improved stiffness and larger, thicker pads than nearly any kit on the market. Combined with our full 1.10" wide rotors your needs for greater thermal mass on the track are answered

FIT: Will not clear stock wheels. Fits many 'brake friendly' 17" and larger wheels.

NOTES: Lower cost due to fit of FSL caliper. Comes with 20mm thick brake pads for sustained track day use. Optional six piston calipers nice for pad wear longevity.

Plus 3: The 14" kit- $2029 By special order only.

• Wilwood BSL6r calipers w/ss pistons (6 piston)

• Choice of BLACK or RED powder coat finish
• TCE aluminum radial mount brackets

• Wilwood billet aluminum rotor hats

• 14.0" x 1.10" directional cast rotors
• Gas slotted and zinc plated

• BP-10 pads

• TCE spec stainless steel flex lines

• Optional cross drilled rotor finish- ADD $135

APPLICATION: When larger wheels demand a bolder look this 14" front kit is just the ticket! A great kit for all uses but at a much higher price point due to the cost of components.

FIT: Stock and 18" or larger wheels.

• Wilwood Combo Parking Brake Calipers
• Choice of BLACK or RED powder coat finish
• Radial mount brackets
• BP10 pads
• TCE billet aluminum rotor hats

• 12.3 x .750" vented rotors
• Gas slotted and zinc plated

• TCE spec stainless steel hose kit
• All required hardware
• Cable mounts and clips

• Optional cross drilled rotor finish- ADD $135

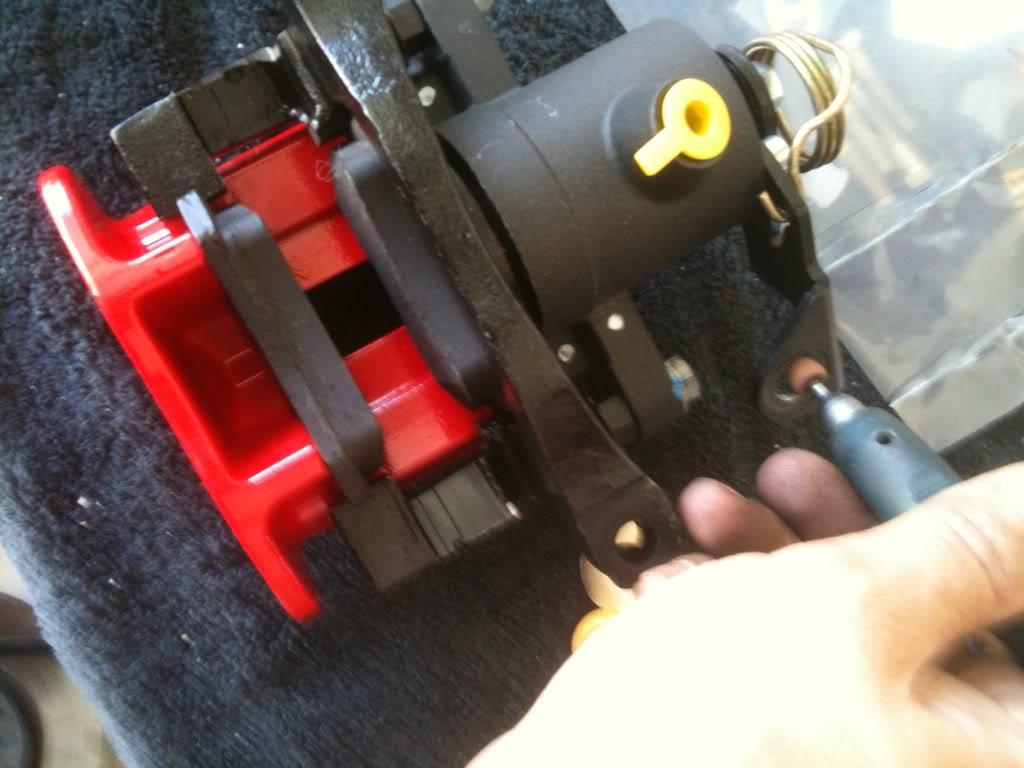

APPLICATION: Move on up to some larger, sexy looking calipers to match the front FSL or DP6 kits! This kit comes with Wilwood's combo parking brake caliper with a much larger anvil yet retains the function of the oe parking brake cable. Larger 12.3" rotors to match your front kit make this an easy choice. Increased performance, same total weight.

FIT: Stock and 17" or larger wheels.

NOTES: Simple installation but requires some effort to deal with parking brake cables. Patience a plus.

• Wilwood Combo Parking Brake Calipers
• Choice of BLACK or RED powder coat finish
• Radial mount brackets
• BP10 pads
• Wilwood billet aluminum rotor hats

• 13.0 x .810" vented rotors
• Gas slotted and zinc plated

• TCE spec stainless steel hose kit
• All required hardware
• Cable mounts and clips

• Optional cross drilled rotor finish- ADD $135

APPLICATION: Taking the above kit one step larger for those customers looking at 14" front kits TCE can produce a custom version of the above Parking Brake kit with full size 13" rear rotors. The added cost comes from both the added expense of the larger TCE aluminum rotor hats as well as the higher cost casting necessary to produce the final kit.

FIT: Stock and 17" or larger wheels.

NOTES: Same as P1 rear kit but includes beefier rotor castings.
