TCE 13" Front Kit

• Wilwood FSL calipers (4 piston)
• Choice of BLACK or RED powder coat finish
• TCE spec steel mounting brackets
• 13" directional cast rotors
• Drilled and slotted
• Wilwood aluminum rotor hats
• BP10 pads
• TCE spec stainless steel hose kit
• TCE custom 5 on 5" hubs
• New bearings, seals and longer studs
• All required hardware

Application: Base kit offering big kit performance. Get better braking and looks with our new 13" kit. This kit will exceed the function of the stock front brakes and offers improved performance without the higher costs of our popular 15 and 16" kits.

Fit: Requires 17" and larger wheels.

Notes: Requires spindle modification. Increases track width .25" per side. TCE kits have been engineered to fit GM spindles. The use of aftermarket or reproduction spindles is on the end user. SS hose kits are 3/8 IF chassis ends and 18" long.

The 15" kit

• Wilwood SX6 calipers (6 piston)
• Choice of BLACK or RED powder coat finish
• TCE billet aluminum radial mount brackets
• 15" x 1.25" directional cast rotors
• Drilled and slotted
• Wilwood aluminum rotor hats
• BP10 pads
• TCE spec stainless steel hose kit
• TCE custom 5 on 5" hubs
• New bearings, seals, and longer studs
• All required hardware

Application: For those who know what big brakes are all about; this kit sets the standard for simple bolt on performance. Proven products combine with our rear kit for a fully matched appearance!

Fit: Requires 19" or larger wheels.

Notes: Requires spindle modification. Increases track width .25" per side. TCE kits have been engineered to fit GM spindles. The use of aftermarket or reproduction spindles is on the end user. SS hose kits are 3/8 IF chassis ends and 18" long.

The 16" kit

• Wilwood TC6 six piston calipers
• Choice of BLACK or RED powder coat finish
• TCE billet aluminum radial mount brackets
• 16" x 1.375" directional cast rotors
• Drilled and slotted
• Wilwood aluminum rotor hats
• BP10 pads
• TCE spec stainless steel hose kit
• TCE custom 5 on 5" hubs
• New bearings, seals, and longer studs
• All required hardware

Application: When the wheels go up so do the demands placed on the braking system. The TCE 16" kit takes Impala braking to a whole new level! Wilwood truck proven calipers are at home here as they are on an Escalade.

Fit: Requires 20" or larger wheels.

Notes: Requires spindle modification. Increases track width .25" per side. TCE kits have been engineered to fit GM spindles. The use of aftermarket or reproduction spindles is on the end user. SS hose kits are 3/8 IF chassis ends and 18" long.

13" Kit

15" Kit

16" Kit

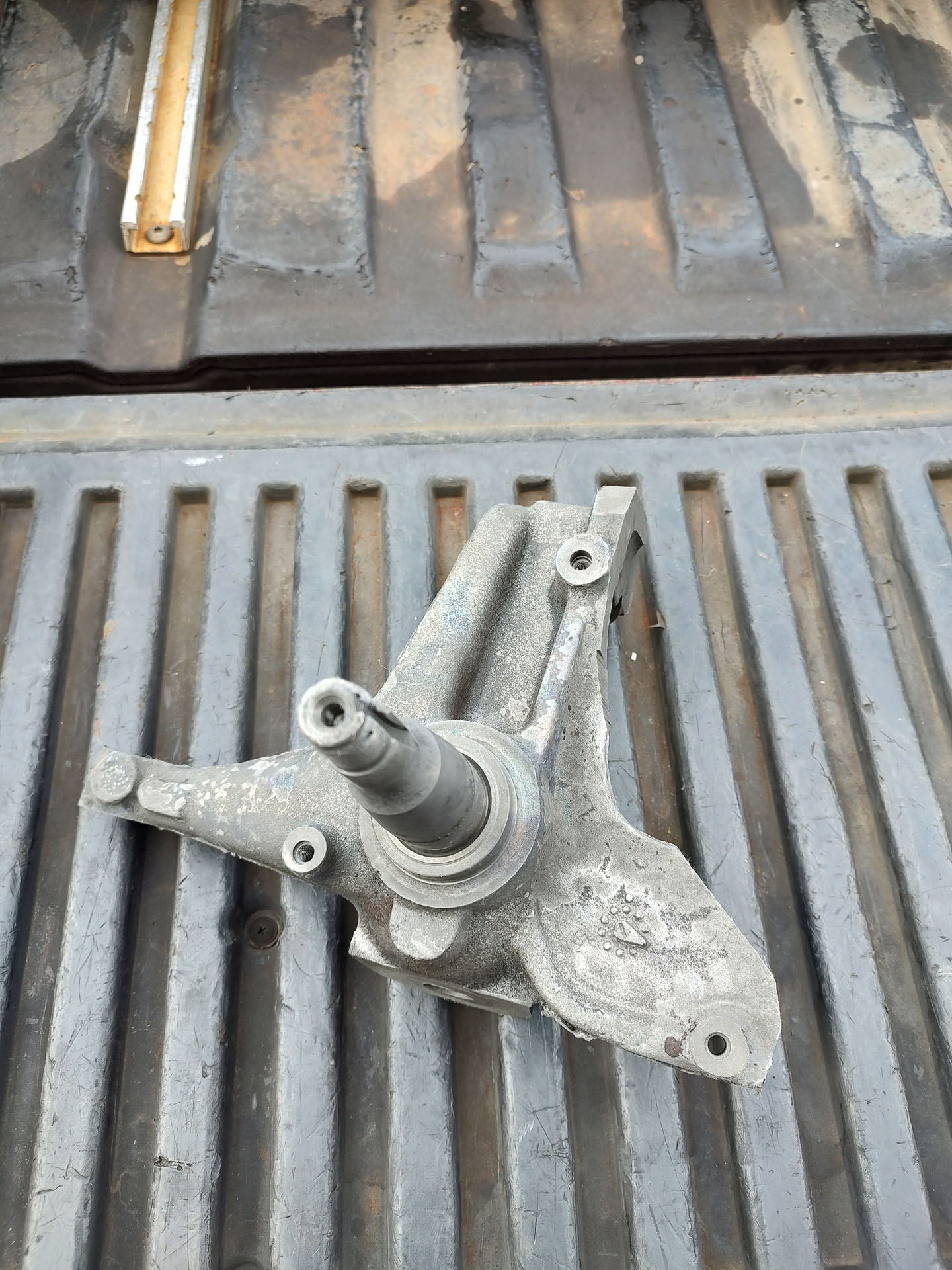

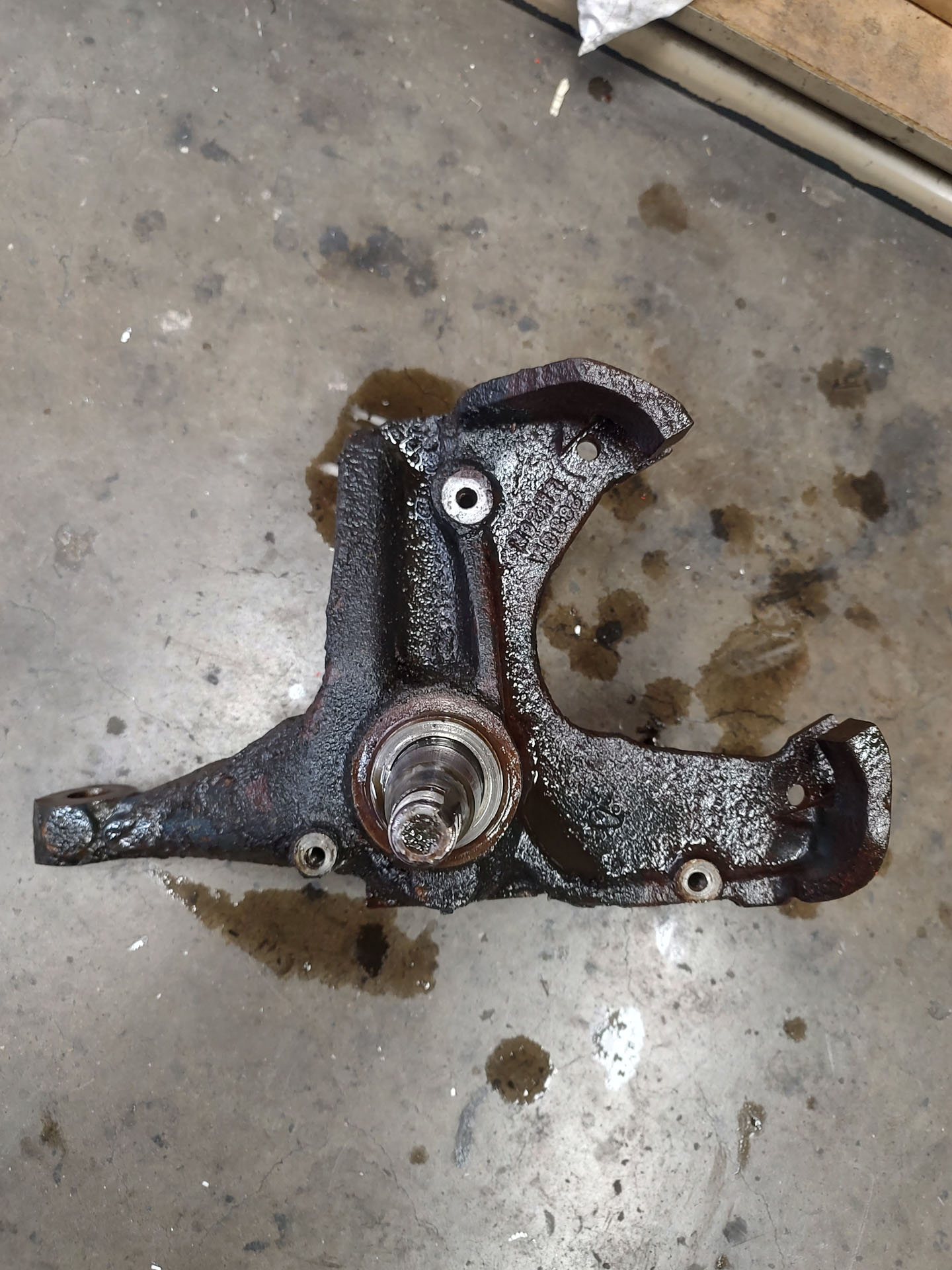

Spindle Mods Required 1

Cut off the spindle ears

Spindle Mods 2

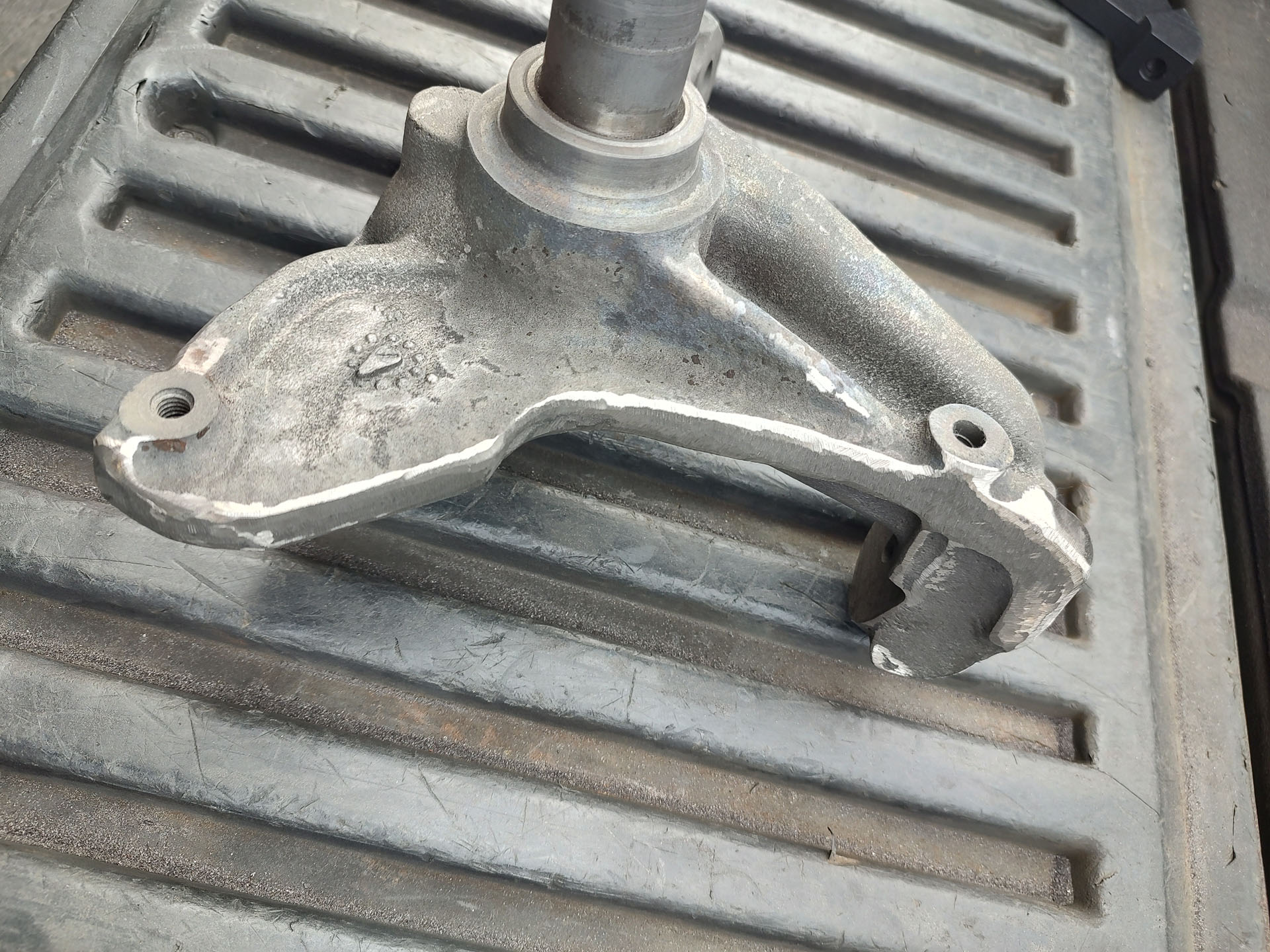

Grind the edges until bracket clears

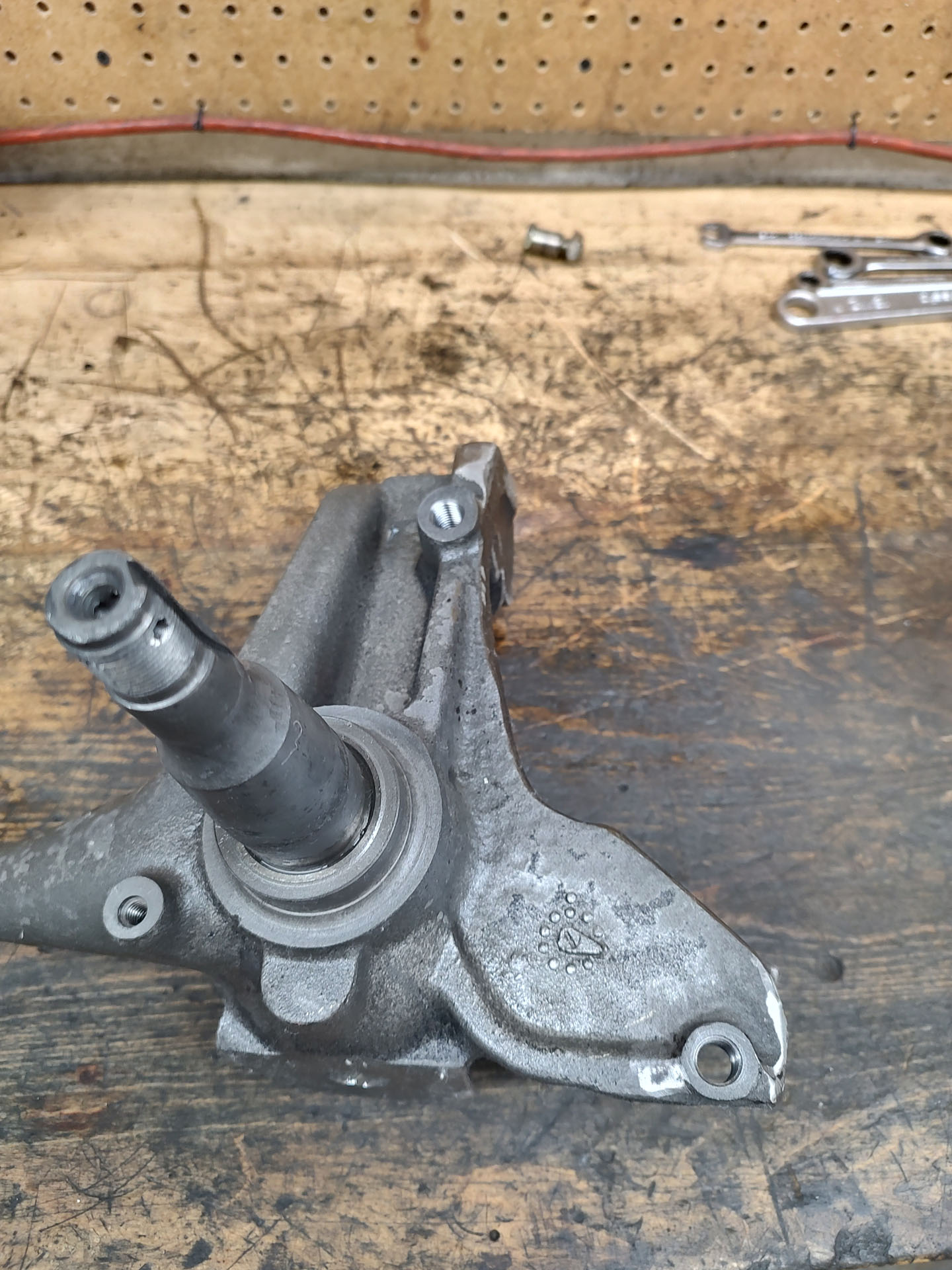

Drill and tap M12 x 1.50

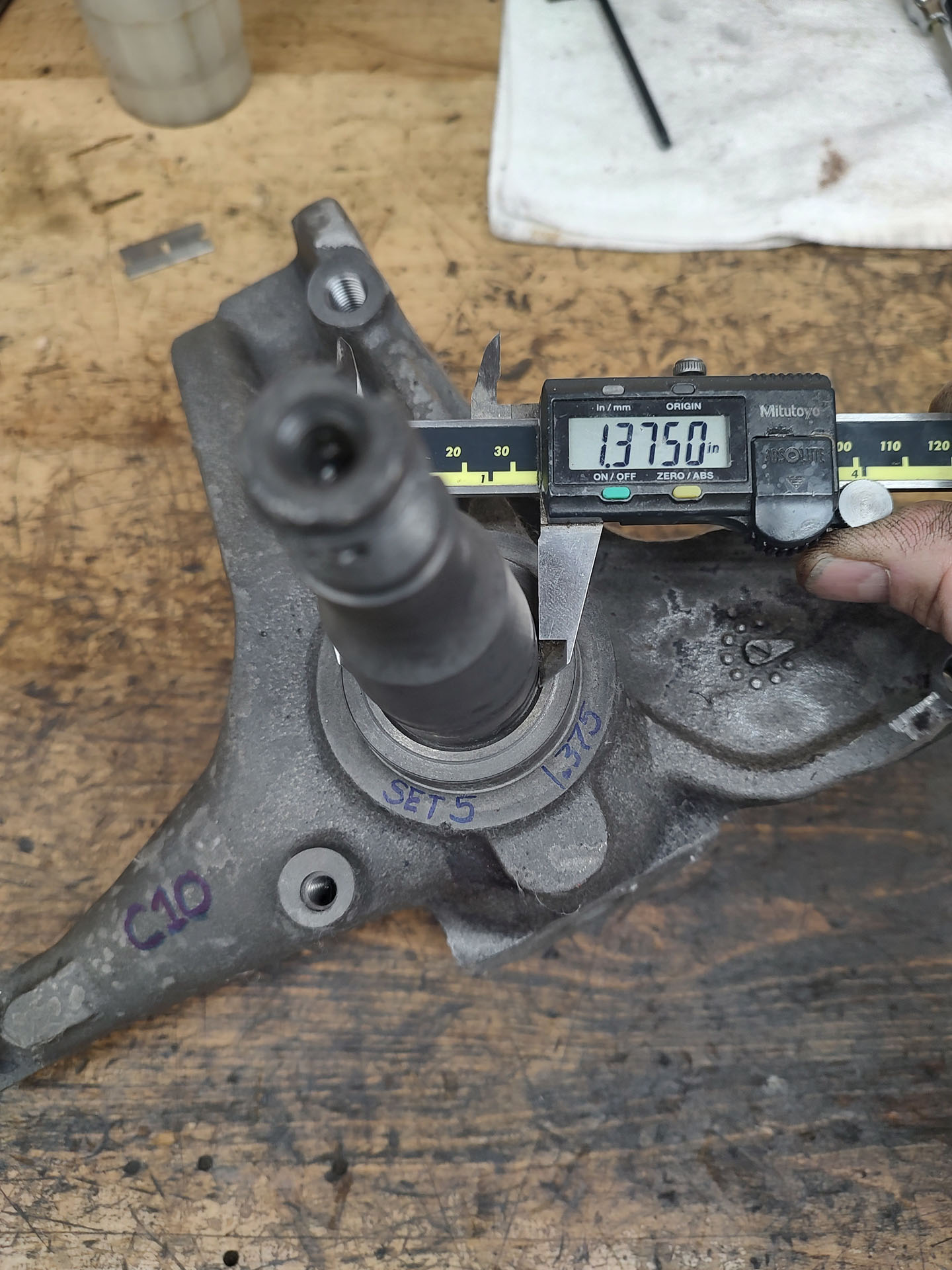

Checking Inner Bearing Spec
