Chevy Colorado
2003-2012 Chevrolet Colorado / GMC Canyon
|
TCE/Wilwood 12.8" Front Kit
-
Wilwood Aero6 calipers (6 piston)
-
Choice of BLACK or RED powder coat finish
-
12.8 x 1.25" directional cast rotors
-
TCE billet aluminum rotor plates with lock rings
-
Wilwood BP10 street pads
-

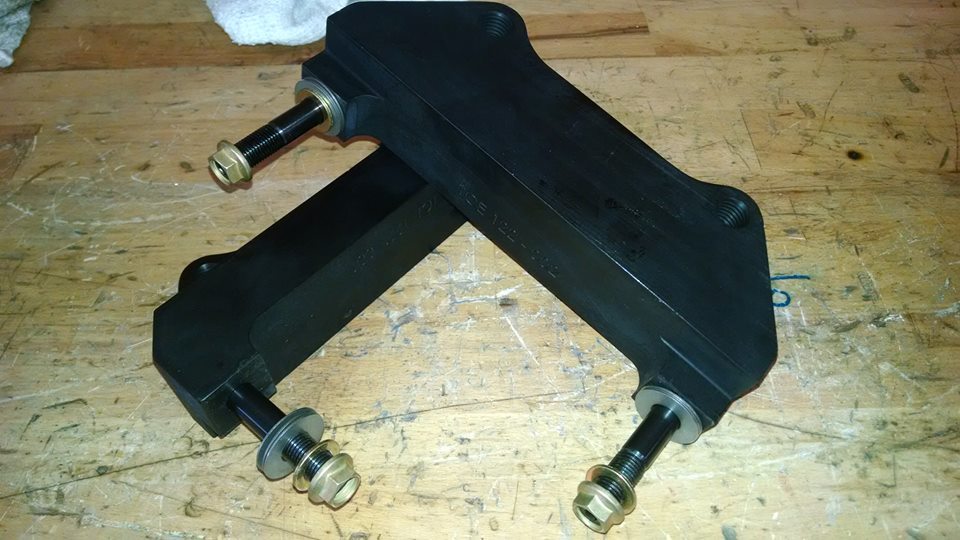

TCE billet aluminum radial mount brackets
-
TCE spec SS hose kit RWD/4WD are different
-
All required hardware
-
Optional drilled and slotted rotor finish
|
Application: Our basic front kit for those running 17" wheels. A work horse kit with six piston clamping force and modest performance brake pads. Slightly larger rotor comparted to stock, wider, directionally cast and superior quality iron.
Fit: Requires 17" or larger wheels.
Notes: A fairly simple, bolt on kit that replaces the stock one piece rotor to the back side of the factory hub with our 2pc hat and rotor combo. Please be prepared to send a picture of your front hoses so we can match them up. There are variables in this application. Check wheel barrell diameter berfor ordering: will require 15.25" diameter clearance.
|
|
TCE/Wilwood 15" Front Kit
-
Wilwood Aero6 calipers (6 piston)
-
Choice of BLACK or RED powder coat finish
-
15 x 1.25" directional cast rotors
-
TCE billet aluminum rotor plates with lock rings
-
Wilwood BP10 street pads
-
TCE billet aluminum radial mount brackets
-
TCE spec SS hose kit RWD/4WD are different
-
All required hardware
-
Optional drilled and slotted rotor finish
|
Application: The larger kit for those running 20 or larger wheels. Same calipers as above but far more rotor mass and great looks!
Fit: Requires 19" or larger wheels.
Notes: A fairly simple, bolt on kit that replaces the stock one piece rotor to the back side of the factory hub with our 2pc hat and rotor combo. Please be prepared to send a picture of your front hoses so we can match them up. There are variables in this application.
|
|
Chevrolet Colorado / GMC Canyon 2014+
|
TCE/Wilwood 12.8" Kit
-
Wilwood Aero4 calipers (4 piston)
-
Choice of BLACK or RED
-
12.8 x 1.25" directional cast rotors
-
TCE billet aluminum rotor hats
-
Wilwood BP20 performance pads
-
TCE billet aluminum radial mount brackets
-
TCE spec SS hose kit
-
All required hardware
|
Application: THE option for owners running 17" wheels. This workhorse kit is engineered to provide the most torque and mass we can shoehorn into a smaller wheel. The directional cast GT rotors manage heat well and the Aerolite calipers off a ridgid package with modest amounts of pad material.
Fit: Requires 17" or larger wheels.
Notes: Simple and straight forward bolt on kit. Optional Race compound pads available for competiton uses. The later kits use Aero4 calipers due to volume requirements established by the Master Cylinder size. The older kits had a larger bore and thus used a larger (6 pot) displacement caliper model.
|
|
TCE/Wilwood 14" Front Kit
-
Wilwood Aero4 calipers (4 piston)
-
Choice of BLACK or RED
-
14.0 x 1.25" directional cast rotors
-
TCE billet aluminum rotor hats
-
Wilwood BP20 performance pads
-
TCE billet aluminum radial mount brackets
-
TCE spec SS hose kit
-
All required hardware
|
Application: When big wheels are available our 14 and 15" kits will fill the bill for both performance and great looks.
Fit: Requires 18" or larger wheels.
Notes: Simple and straight forward bolt on kit. The later kits use Aero4 calipers due to volume requirements established by the Master Cylinder size. The older kits had a larger bore and thus used a larger (6 pot) displacement caliper model.
|
|
TCE/Wilwood 15" Front Kit
-
Wilwood Aero4 calipers (4 piston)
-
Choice of BLACK or RED
-
15.0 x 1.25" directional cast rotors
-
TCE billet aluminum rotor hats
-
Wilwood BP20 performance pads
-
TCE billet aluminum radial mount brackets
-
TCE spec SS hose kit
-
All required hardware
|
Application: A supersized version of the 14" kit for those with larger wheels.
Fit: Requires 19" or larger wheels.
Notes: Simple and straight forward bolt on kit. The later kits use Aero4 calipers due to volume requirements established by the Master Cylinder size. The older kits had a larger bore and thus used a larger (6 pot) displacement caliper model.
|
|
FITMENT: It is up to the consumer to verify both vehicle and wheel fit. Application data is available by clicking the HELP ME INSTALL IT link for both front and rear kits. Wheel fit data can be viewed on page 3 of that pdf. It is up to the consumer to determine the suitablity of use for any and all products upon their vehicle. TCE makes no claim to fit beyond the data referenced above.
Unsure?: If you are unsure of the fit or application please call or email so we can help you select the proper kit!
