Plus 1:  The TCE Drag Kit- $1128

• Wilwood Dyna Pro calipers (4 piston)
• Radial mount brackets
• Wilwood aluminum rotor hats
• 11.50 x .810 scalloped rotors
• Plain finish- no plating, no slots, no holes
• BP 10 Pads
• TCE spec stainless steel hose kit
• All required hardware
• Optional RED caliper color- ADD $100

APPLICATION: A compact, low clearance, light weight front kit for the Drag Racing enthusiast. This kit combines the tried and proven DPr caliper with light weight scalloped rotors for an exceptional value front kit. Total weight is roughly 35lbs boxed making it a true weight reduction purchase.

FIT: Minimum Wheel Size 15"

NOTES: Drag Racing use only due to the light weight nature of the components. Should not be considered for street use with supplied rotors. Alternate non-scalloped possibly.

Shipping Weight:

Plus 2: The Wilwood 12.2 Factory kit- $call

• Wilwood Dyna Pro Radial calipers (4 piston)
• Fully dust booted
• Wilwood Radial mount brackets
• Wilwood aluminum hats
• 12.2 x .810 UL-32 HP Rotors
• BP10 pads
• TCE spec stainless steel hose kit
• All required hardware
• Optional Wilwood GT rotors (slotted)- ADD $150
• Optional Drilled/Slotted rotors (black)- ADD $150
• Optional RED caliper color- ADD $100

APPLICATION: Intended for Street/Strip use where light weight and daily driver durability is desired. A great street performer for the enthusiast but not a hard core track kit. Very affordably priced with many options for appearance.

FIT: Minimum Wheel Size 16"

NOTES: Converted to 1G app requires about a week and increases cost $95 over conventional kit price.

Shipping Weight:

Plus 3: The 13" street/track kit- $1526

• Wilwood Dyna Pro Six (DP6) 6 piston calipers
• Choice of BLACK or RED powder coat finish
• TCE spec aluminum mount brackets
• TCE aluminum hats
• 13 x 1.10" directional cast rotors
• Gas slotted
• BP10 pads
• TCE spec stainless steel hose kit
• All required hardware
• Optional Drilled/Slotted rotor- ADD $150

APPLICATION: The most "all around" kit for the Street enthusiast. Offers modest weight and balance for wheel fit, light track day use and drag racing where larger wheels are used. Six pot caliper is standard and provides improved pad pressure points for longer wear and less tapering over conventional four pot calipers.

FIT: Minimum Wheel Size 17"

NOTES:

Shipping Weight: 48lbs

Plus 4: The 13" Track kit- $1280

• Wilwood Forged Super Lite (FSL) 4 piston calipers
• TCE spec steel mount brackets
• TCE aluminum hats
• 13 x 1.10" directional cast rotors
• Gas slotted
• BP10 pads
• TCE spec stainless steel hose kit
• All required hardware
• Optional Wilwood FNSL6 calipers- ADD $375 (incl. RD or BK finish)
• Optional RED caliper color- ADD $125

APPLICATION: For the open track day user who's demands place more stress on the caliper, this kit is available with the base FSL or optional BSL model for improved pad pressure points. These wider calipers offer full 20mm thick pads for long life and improved heat rejection to the caliper. Their larger size however will greatly compromise wheel fit.

FIT: Minimum Wheel Size 17"

NOTES:

Shipping Weight:

Plus 1: The TCE Drag Kit- $897

• Wilwood Dyna Lite Single calipers (2 piston)
• Bolt on aluminum brackets
• Wilwood rotor hats
• 11.5 x .350" solid, scalloped rotors
• Plain finish- no slots, no holes, no plating
• BP10 pads
• TCE spec stainless steel hose kit
• All required hardware

APPLICATION: Drag Racing only due to the very light weight nature of the components. Should not be considered for street use with supplied rotors. Calipers use small pads and should be inspected for wear often.

FIT: Minimum Wheel Size 15"

NOTES: No parking brake. Requires removal of stock caliper mounting ears from trailing arm.

Shipping Weight:

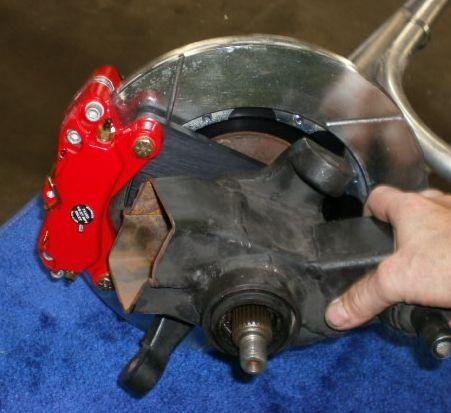

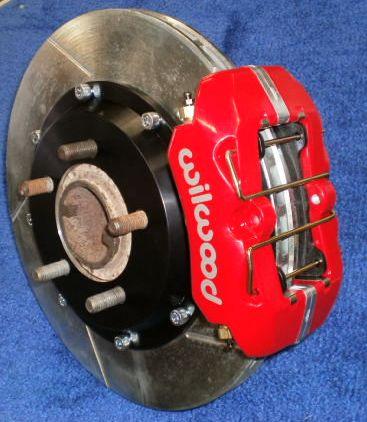

Plus 2: The street/track kit- $1091

• Wilwood Dyna Pro Lug Mount (Low Profile) calipers (4 piston)
• Choice of BLACK or RED powder coat finish
• TCE aluminum mounting brackets
• TCE aluminum hats
• 12.2 x .810" rotors
• Gas slotted
• BP10 Street Pads  (*Plate 4816)
• TCE spec stainless steel hose kit
• All required hardware
• Optional Drilled/Slotted rotor- ADD $150

APPLICATION: Revised for 2013 this kit now comes with the new Low Profile, four pot Dyna Pro caliper. A slight increase in piston area it's ideal for most rear kit applications. Kit is suitable for all uses but will require modification for fitting open track pads- current pad choice is limited. Can be mounted fore or aft of the axle no longer requiring removal of stock iron mount lugs. Standard in powder coated finish to pair with other TCE front kits. Available only as a NON parking brake kit.

FIT: Minimum Wheel Size 16"

NOTES: No Parking Brake. Can be mounted ahead or behind centerline. Stock mounts must be cut off if mounted behind. Bolts to three M8 hole pattern on trailing arm requiring removal of rear bearing for installation. *Plate 4816 is street only. Use 7812 for track pads. Must cut off pad stop in caliper.

Shipping Weight: 48lbs
