1999-2004 Super Duty

Late 1999-2004 F250, F350 and Excursion; 4x4, Single Rear Wheel



'99-'04 FRONT KITS

The 16" TC6R Front Kit

  • Wilwood TC6R calipers  (six piston)
  • Choice of BLACK or RED
  • TCE spec radial mount brackets
  • Wilwood 16" x 1.375" rotors
  • Choice of Slotted Only or Drilled and Slotted rotors
  • Wilwood forged aluminum rotor hats
  • BP20 pads
  • TCE spec stainless steel flex hose kit
  • All required hardware

APPLICATION: Huge 16" rotors and calipers over 13" tall fill out your truck's wheels with gobs of torque and fade resistance that's second to none. Our custom radial mount brackets are an easy bolt on making the install very simple.



FIT: Requires 20" or larger wheels.



NOTES: A direct fit for all '99.5-'04 F250, 350 and Excursion. Does not fit early 'beam axle" 1999 trucks. Longer front hose kits available for high lift applications- please call after placing order.

TC6R Front Kit Options


'99-'04 REAR KITS

The 16" TC6R Rear Kit

  • Wilwood TC6R calipers (6 piston)
  • Choice of BLACK or RED

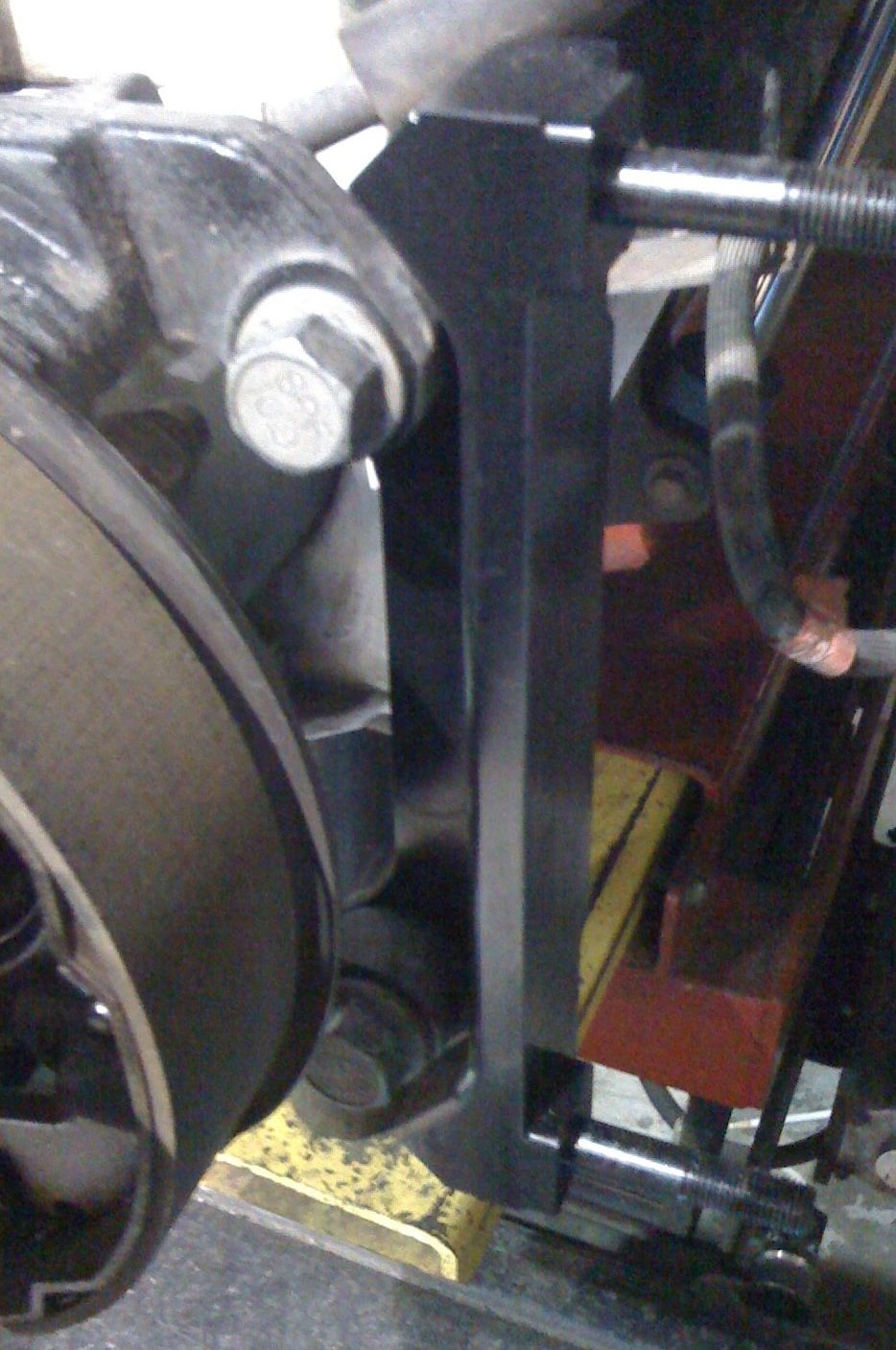

  • TCE spec radial mount brackets
  • Wilwood 16" x 1.375" rotors
  • Choice of Slotted Only or Drilled and Slotted rotors
  • TCE iron parking brake hats, powder coated
  • BP10 pads
  • TCE spec stainless steel flex hose kit
  • All required hardware
  • Wilwood adjustable proportioning valve incl
  • Optional Dual Rear Wheel Kit by spcl order- call

APPLICATION: Massive rear brakes to match the fronts! The TCE 16" rear kit retains the factory parking brake making fit and finish a no brainer. This rear kit not only increases fade resistance but by design adds some rear bias to your vehicle accounting for the long wheelbase and rear weight. Less nose-diving and more stable braking is the result.



FIT: Requires 20" or larger wheels.

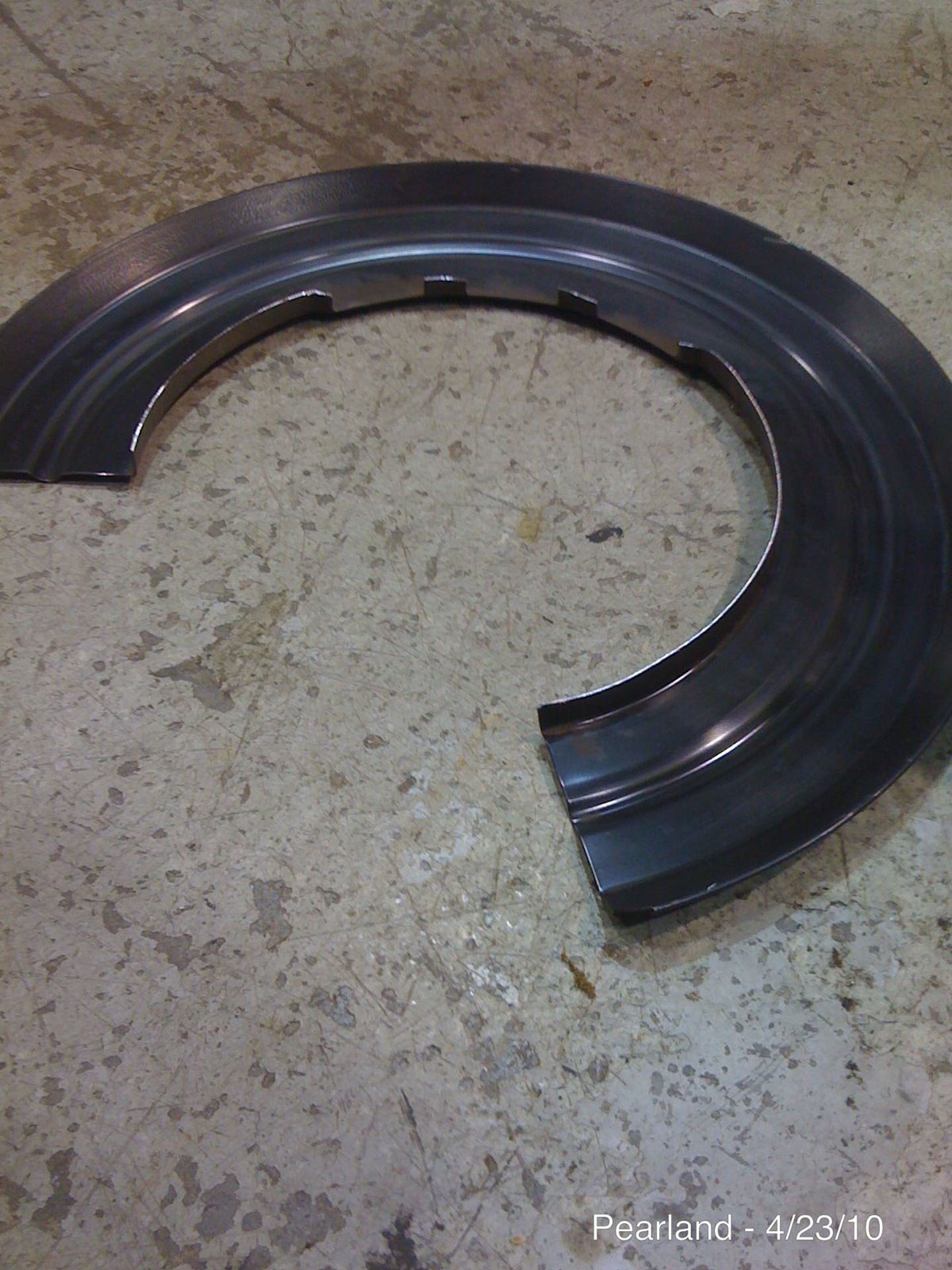

NOTES: Requires trimming of the factory dust shield for clearance. Rear hoses are about 10" long and require "cut and flare" of the existing hardline to adapter. Kit is sold with an Adjustable Proportioning Valve we suggest be installed on all pick-ups. Optional on the Excursion.

TC6R Rear Kit Options




THE FINE PRINT:

FITMENT:  It is up to the consumer to verify proper vehicle and wheel fit. Wheel clearance requirements can be found on the WHEEL FIT page in the TOOLBOX above. If you are unsure of the fit or application please call or email prior to ordering. TCE makes no guarantee of wheel clearance.

TERMS AND CONDITIONS: All sales subject to 20% restocking fee. Return shipping is on you. No credit will be given for installed, mishandled or damaged goods.

SHIPPING: Shipping charges will be applied in the Shopping Cart prior to check out. Prices are based on an average delivery zone. Additional shipping charges may apply to AK, CA and HI. Call before you order for details.
