TCE Performance Products

TCE uses offers a number of different rotor sizes, both diameter and width to address both fit and intended use. Below is a brief description of each of these rotors. Not only do diameters vary by application but so can the rotors width. Most Street Sport kits use the narrowest rotor option where the Road Race kits use the wider rotor for better heat management. However wider rotors take up valuable wheel space.



SOLID ROTOR: a flat disc with no center venting properties in it. Used in a couple of rear kit applications this part has is intended to replace smaller diameter stock parts and usually retains the factory caliper with the parking brake. Ideal for low to medium heat use applicaton.

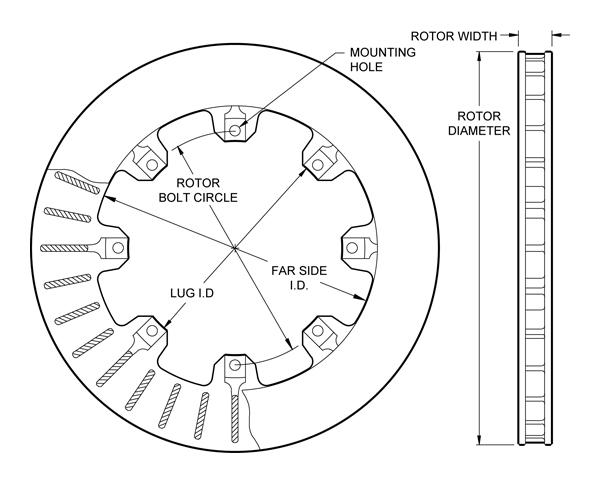

STRAIGHT VANE: A vented rotor with universal R/L applications. It has webs in the vent area which are straight. These are the least expensive of the Vented rotor designs and are often used on rear kit applications where heat management is of a medium requirement. Most factory street rotors are straight vane as well.

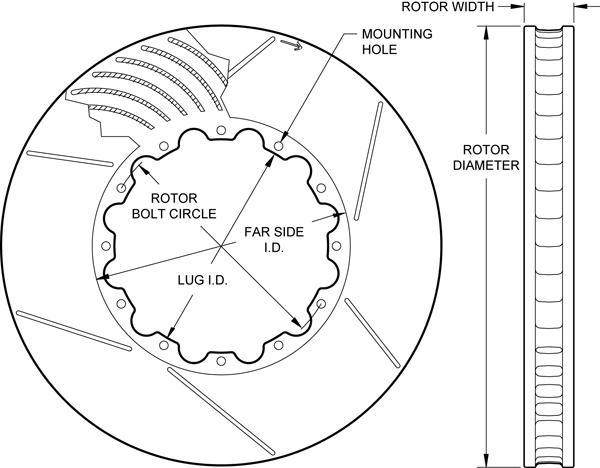

DIRECTIONAL VANE: This rotor has curved casting webs in it for improved air flow. This is the most common rotor used on all TCE kits for both street and racing applications. It is sold in a variety of diameters and various widths.




A note on rotor width: The increase in a rotor width has no impact on the brake torque of a kit, it should be considered a marker to which a kit can be improved upon for heat management. The wider rotor often has more mass, thicker ‘walls’ and more venting area than a comparable narrow version for the same application. TCE has put much effort into fitting its brake kits behind stock wheels. In this instance the narrower rotor may be the ONLY option without compromising spoke clearance. When a more brake-friendly wheel is fit then the rotor width can be expanded to take advantage of its thermal properties. In some instances the build of the kit may allow for future expansion of these rotor options, depending upon the vehicle and caliper used from the start.



Which rotors are for me? If more than one rotor option is available in a specific kit it is due to the variety of applications requested by owners or the specifics of fit behind the factory wheel and suspension. Finding the right rotor for your needs can be time consuming but well worth it in the end.

For those who do only street driving and the occasional track day, the narrow rotor will serve your needs very well. The use of a narrow rotor and its lack of thermal capacity will likely become known only when used on the track where sustained high heat saturates the rotor thus running hotter than desired. If you don’t do serious track driving or attend tracks days only once or twice a year, the value of alternate rotors may not be that great. Larger rotors weigh more as well so drag racers may find this added weight a trade for vehicle performance. For those who drive harder on canyon roads, attend SOLO events or participate often in open track events the fit a Wide rotor is a must. These kits use rotors with wider center vents and thicker walls for a substantial increase in thermal capacity. These rotors often weigh 4-5 pounds more per rotor than their respective narrow counter part. Wide rotor kits may also compromise wheel spoke clearance so please verify fit requirements.

As a general rule you cannot go wrong with the use of more rotor if there is ample room for it, but often the additional mass can be more than is really needed. For this reason offer you a wide selection of options rather than selling a one-size-fits-all kit
.




Pricing below is for TCE kits and may not reflect that of Wilwood factory rotors



TCE FRONT KIT ROTORS

Rotors are listed by Diameter, Width, Application, Side, Bolt Qty, and Bolt Circle

CALL for drilled/slotted option- $65ea

<L = Driver Side / Passenger Side = R>



Dia.  Width Applications R/L Bolt Qty. Bolt Circle $ ea.
11.5 .81 Eclipse Front Drag R/L 8 7.00 169

11.8 1.00 MINI Custom Wilwood hat (avail. 12.2" also) R 8 7.00 199

11.8  1.00 MINI Custom Wilwood hat (avail. 12.2" also) L 8 7.00 199



12.2 .810 Older Focus, SHO, Contour, Cougar and others R 8 7.625 159

12.2 .810 Older Focus, SHO, Contour, Cougar and others L 8 7.625 159

12.2  1.10 Older Focus, SHO, Contour, Cougar and others R 8 7.625 199

12.2  1.10 Older Focus, SHO, Contour, Cougar and others L 8 7.625 199





13.0  .810 Contour, Cougar, Focus, Solstice/Sky, SRT4, Fiesta, SHO, Tiburon, HHR, Cobalt , MINI R 8 7.625 198

13.0  .810 Contour, Cougar, Focus, Solstice/Sky, SRT4, Fiesta, SHO, Tiburon, HHR, Cobalt , MINI L 8 7.625 198

13.0 .810 Contour, Cougar, Focus, Solstice/Sky, SRT4, Fiesta, SHO, Tiburon, HHR, Cobalt , MINI  R 12 8.375 198

13.0  .810 Contour, Cougar, Focus, Solstice/Sky, SRT4, Fiesta, SHO, Tiburon, HHR, Cobalt , MINI  L 12 8.375 198

13.0  .920 Replaces .810 on FSL calipers only R 8 7.625 198

13.0  .920 Replaces .810 on FSL calipers only L 8 7.625 198

13.0  .920 Replaces .810 on FSL calipers only R 12 8.375 198

13.0  .920 Replaces .810 on FSL calipers only L 12 8.375 198



13.0 1.10 Contour, Cougar, Focus, Solstice/Sky, SRT4, Fiesta, SHO, Tiburon, HHR, Cobalt , MINI  R 8 7.625 199

13.0 1.10 Contour, Cougar, Focus, Solstice/Sky, SRT4, Fiesta, SHO, Tiburon, HHR, Cobalt , MINI  L 8 7.625 199

13.0  1.10 Contour, Cougar, Focus, Solstice/Sky, SRT4, Fiesta, SHO, Tiburon, HHR, Cobalt , MINI  R 12 8.375 199

13.0 1.10 Contour, Cougar, Focus, Solstice/Sky, SRT4, Fiesta, SHO, Tiburon, HHR, Cobalt , MINI  L 12 8.375 199


13.1  1.10 Marauder, MINI R 8 7.625 199

13.1  1.10 Marauder, MINI L 8 7.625 199

13.1  1.10 Marauder, MINI R 12 8.375 199

13.1  1.10 Marauder, MINI L 12 8.375 199


13.0  1.25 Impala SS  R 8 7.625 199

13.0  1.25 Impala SS L 8 7.625 199


13.06 1.25 Lightning R 12 8.375 199

13.06  1.25 Lightning  L 12 8.375 199



14.0  1.25 Lightning  R 12 8.375 259

14.0  1.25 Lightning L 12 8.375 259

14.0 1.10 Marauder R 12 8.375 259

14.0 1.10 Maruder L 12 8.375 259


16.0  1.25 Older Charger, Impala, Lightning R 12 9.875 327
16.0  1.25 Older Charger, Impala, Lightning L 12 9.875 327



12.25 1.00

Charger/Challenger Front Drag-  Standard

R&L n/a  n/a 119
12.25 1.00

Charger/Challenger Front Drag- Scalloped

R&L n/a n/a 166




TCE REAR KIT ROTORS



Dim. Width Applications R/L Bolt Qty. Bolt Circle $ ea.

11.75  .375 Focus, MINI (tce hat) R 8 7.625 157

11.75  .375 Focus, MINI (tce hat) L 8 7.625 157

11.75  .375 MINI (wilwood hat) R 8 7.00 157

11.75 .375 MINI (wilwood hat) L 8 7.00 157


11.75 .750 Contour/Cougar, Cobalt, HHR/SRT4 non p-brake R 8 7.625 152

11.75 .750 Contour/Cougar, Coblat, HHR/SRT4 non p-brake L 8 7.625 152


12.4  .810 Solstice/Sky R 8 7.625 152

12.4  .810 Solstice/Sky L 8 7.625 152

13.0  .810 Solstice/Sky R 12 8.375 198  See same spec FRONT
13.0  .810 Solstice/Sky L 12 8.375 198  See same spec FRONT

13.0  .810 Impala, Marauder, older Magnum R 8 8.938 198

13.0  .810 Impala, Marauder, older Magnum L 8 8.938 198


13.0  .810 Eclipse R 8 8.125 198

13.0  .810 Eclipse L 8 8.125 198

11.5  .375 Eclpse rear drag R/L 8 7.00 169



13.0  1.10 Lightning, Non P-Brake R 12 8.750 198

13.0  1.10 Lightning, Non P-Brake L 12 8.750 198


13.0 .750 RX8 R 10 7.00 172

13.0  .750 RX8 L 10 7.00 172



12.25 .400

Charger/Challenger Rear Drag- Standard

R&L n/a n/a 109
12.25 .400

Charger/Challenger Rear Drag- Scalloped

R&L n/a n/a 156
