Eclipse 2G Kits

NOTE: Due to age and sales volume many kits on this page are being discontinued. Limited invnetory and production may delay a build. Please call to check stock and lead time.

2G FRONT KITS: 1994-1999
2G Owners: To insure proper fit you MUST verify the hub in use on your car. All hats use a 'register ring' and that ring must match the OD of your hub for proper fit. Please see the image at right showing the later hub with two steps.

 Wilwood 12.2 Factory kit- LINK

APPLICATION: Entry level 12.2 Kit

CALL

The TCE 13" Street Kit

  • Wilwood Dyna Pro Six (DP6) 6 piston calipers
  • Choice of BLACK or RED powder coat finish
  • TCE  aluminum mount brackets
  • TCE aluminum hats
  • 13 x 1.10" Direction cast rotors
  • Gas slotted
  • BP10 pads
  • TCE spec stainless steel hose kit
  • All required hardware
  • Optional Drilled/Slotted rotors

APPLICATION: The most "all around" kit for the Street enthusiast. Offers modest weight and balance for wheel fit, light track day use and drag racing where larger wheels are fit.



FIT: Minimum Wheel Size 17"



NOTES: The most versitle offering from TCE. The DP6 offers maximum wheel clearance, a stiff caliper body and is fit to a 1.10" rotor. However pads are thinner and more difficult to change than those of the FSL for track use.



2G Eclipse 13" DP6 Kit



Pleae email/call your hub specs

The TCE 13" Track Kit
  • Wilwood Forged Super Lite (FSL) 4 piston calipers
  • Type III Grey anodized
  • TCE steel mount brackets
  • TCE aluminum hats
  • 13 x 1.10" directional cast rotors
  • Gas slotted
  • Sold WITHOUT pads
  • TCE spec stainless steel hose kit
  • All required hardware

APPLICATION: For the open track day user where demands place more stress on the caliper body. This kit is built with the proven FSL 4 piston caliper using top loading pads for quick and easy service. These wide calipers offer full 20mm thick pads for long life and improved heat rejection to the fluid. Their larger size however will greatly compromise wheel fit. Simple, effective and low cost.



FIT: Minimum Wheel Size 17"



NOTES: Sold without brake pads. Choose from compounds 7420 and add to order.

2G Eclipse 13" FSL Track Kit



The TCE 14" Aero6 Kit

  • Wilwood Aero6, 6 piston calipers
  • Choice of BLACK or RED powder coat finish
  • TCE Radial mount brackets
  • Wilwood aluminum hats
  • 14 x 1.25" directional cast rotors
  • Gas slotted
  • BP10 pads
  • TCE spec stainless steel hose kit
  • All required hardware
  • Optional Drilled and Slotted rotors

APPLICATION: Supplied with street pads however this kit is intended for the most sever open track duty where greater rotor mass is desired . The Aero6 caliper offers a massive caliper body for increased strength and heat rejection. The pads are offer nearly 10% more cubic inches of the FSL/BSL part for longer live when durability is a must.



FIT: Minimum Wheel Size 18"



NOTES: Updated in 2017 with all new radial mount brackets- no grinding of spindle ears. Also now fit with Wilwood hats and Spec37 rotors.

2G Eclipse 14" Aero6 Kit

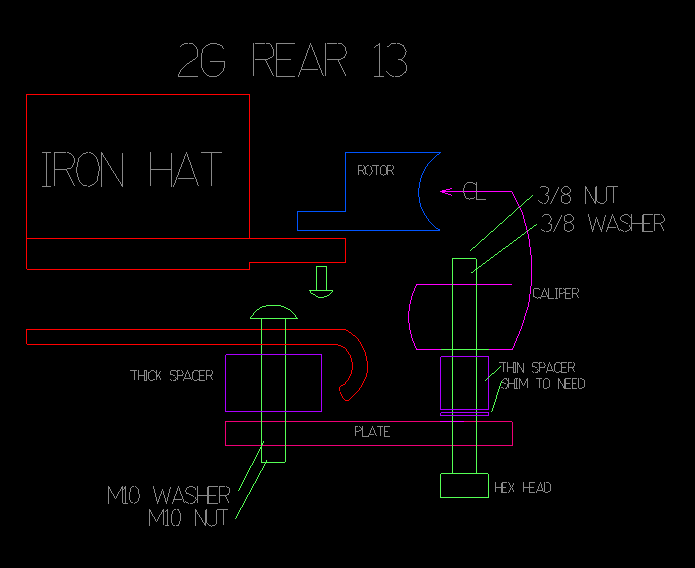

2G REAR KITS

The TCE 13" P-Brake Kit

  • Wilwood Dyna Pro Lug Mount (DPLM) 4 piston calipers
  • Choice of BLACK or RED powder coat finish
  • Optional Type III Grey Anodized
  • TCE steel mounting brackets
  • TCE steel parking brake hats
  • 13 x .810 directional cast rotors
  • Gas slotted
  • BP10 pads
  • TCE spec stainless steel hose kit
  • All required hardware
  • Optional Drilled/Slotted rotors

APPLICATION: A true all around performer for any use. Ample rotor mass for open track day use and tunable with many pad compounds. Great appearance, function and stock parking brake for street use.



FIT: Minimum Wheel Size 17"



NOTES: Retains Factory Iron Parking Brake. A non parking brake kit for race apps can be had by spcl order- call.



2G Eclipse 13" Rear P-Brake
