TCE Electronic Parking Brake (EPB) Conversion Kit

For all Wilwood rear kit owners with Drum-in-Disc (DND) parking brakes.

Take your ride to the next level with an EPB conversion!

The TCE/Wilwood EPB Conversion is a complete, simple, and effective way to mount the Wilwood EPB calipers to an older DND system found on many stock and custom rear axles. Ford, GM, Mopa and Specialty suppliers; if it has a DND kit now; this kit will update you to electric bliss!

Each TCE/Wilwood kit includes: A complete new Wilwood EPB system with calipers, controller, harness and on/off button, TCE adapter plates, an assortment of mount offset "banana" spacers and hardware to adapt to the back of your current Wilwood axle base plate. Minor assembly work is needed after the removal of the old drum brake parts however no axle removal or disassembly is needed! Then its off to the EPB instructions for the electrical needs.

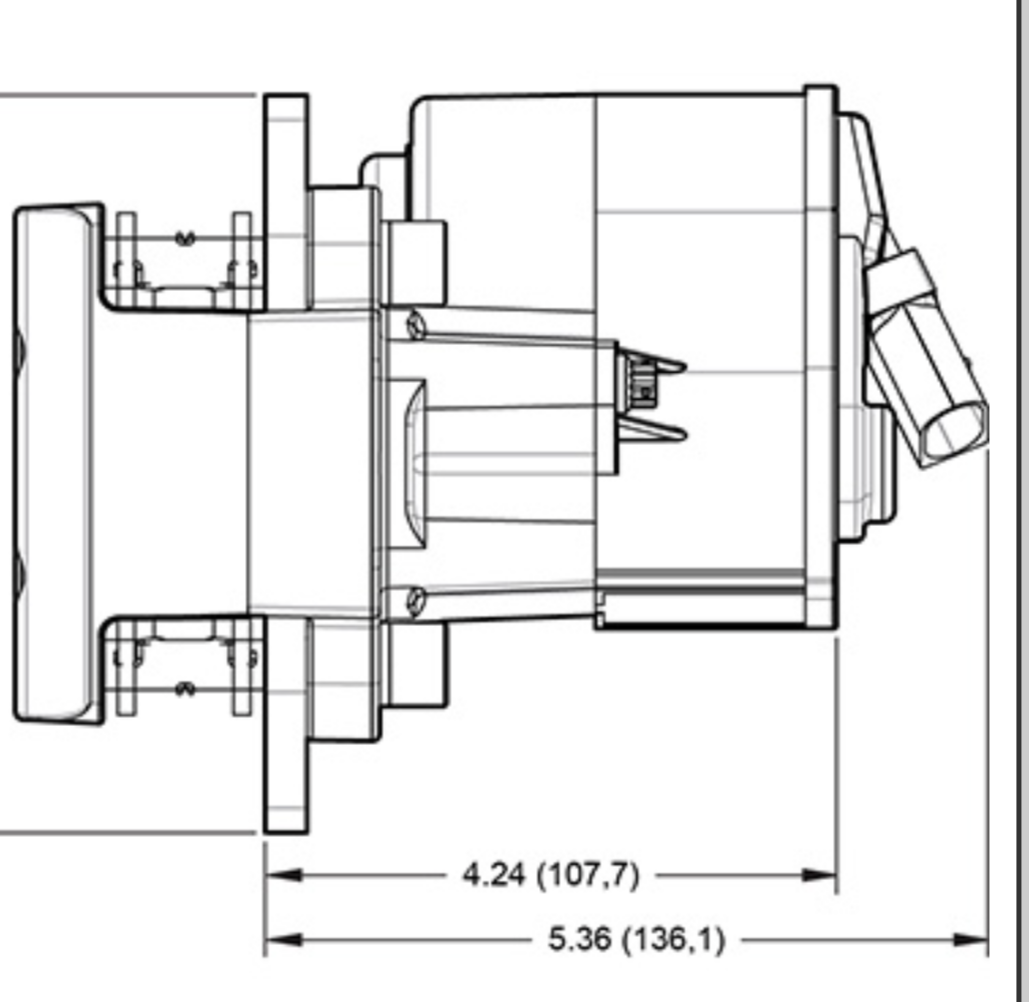

Our EPB Conversion is offered in two specs: Zero degree - mounting the calipers 180° to your existing road caliper or Twenty Five degree - Opposite yet 25° off centerline (up or down!) to allow for a variety of mounting positions to help clear suspension and axle components. There are both 11-13" flavors as well as a 14" version, covering all .810, 1.10 and 1.25" widths to fit the Wilwood factory kits. See the ordering notes below for details. You will require about 6" of clearance behind the inner surface of your current rotor for the motor. Measure this and determine which option for mounting best works for your needs. *See the drawing below.

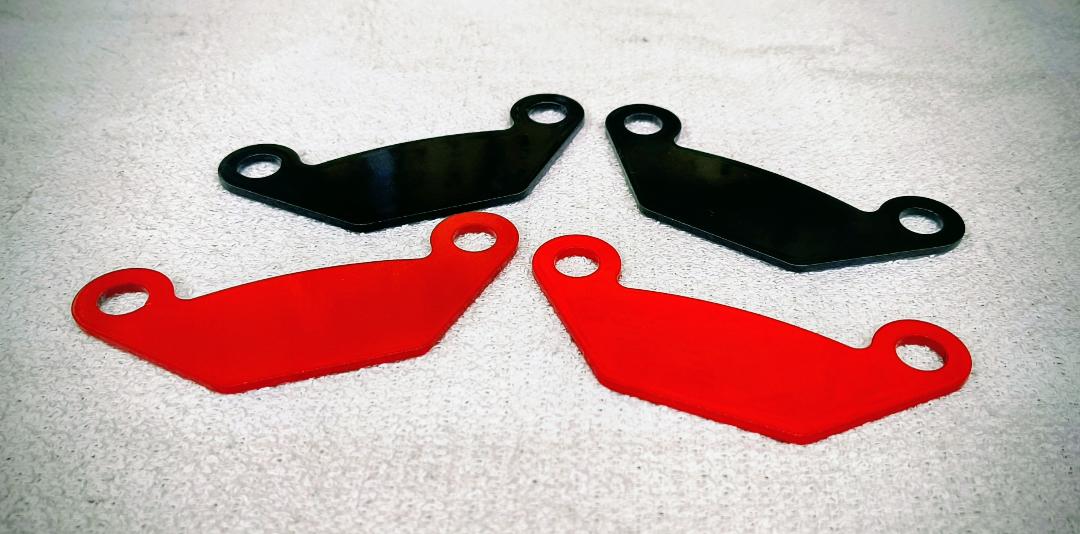

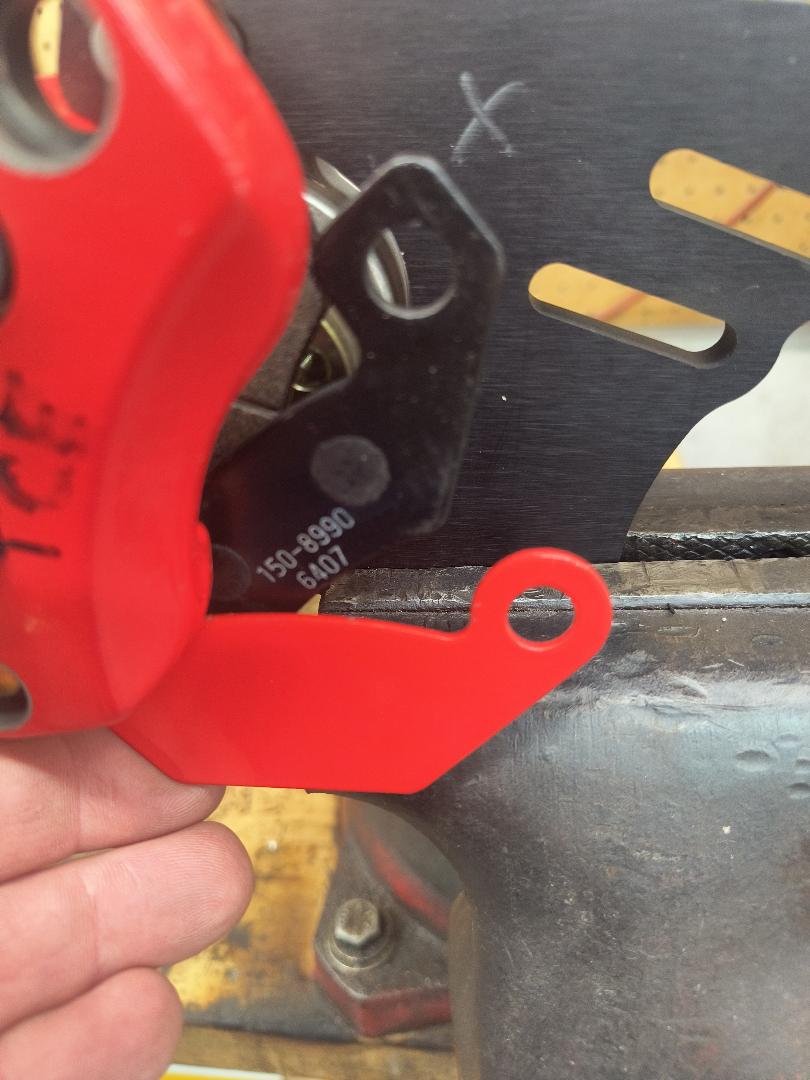

NEW!!! TCE's custom Hide-A-Pad option. A simple 2pk of color matched plates fit behind the outer pad to hide the back of the brake pad and it's numbering. Simple and effective. An easy add to your cart. Also available to all customers as a stand alone purchase. *Available only in Wilwood Red and Black.

Check our VIDEO1 and VIDEO2 for more information!

How does the EPB work? Here's our friend Mike Hamrick to show you:  VIDEO

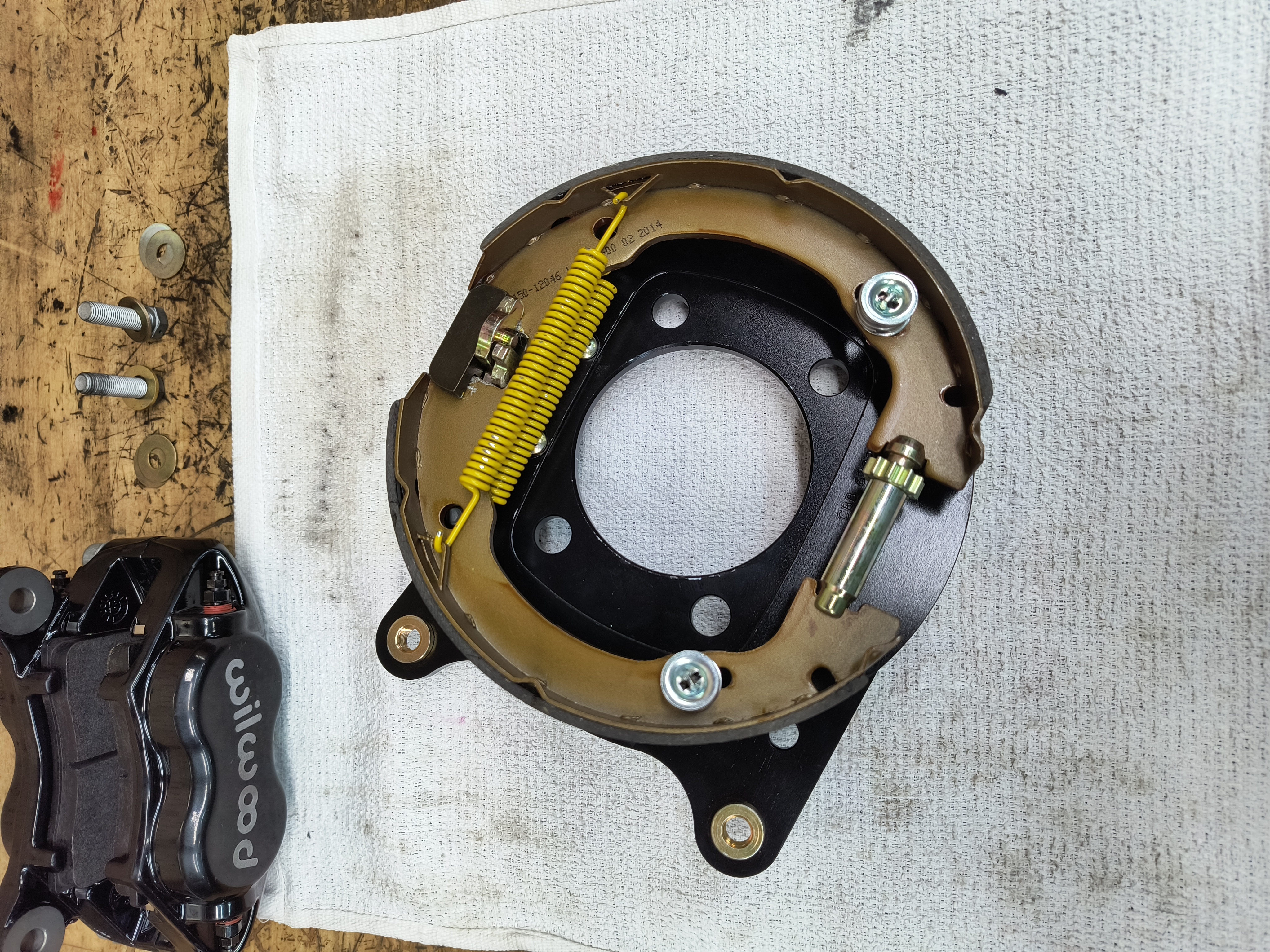

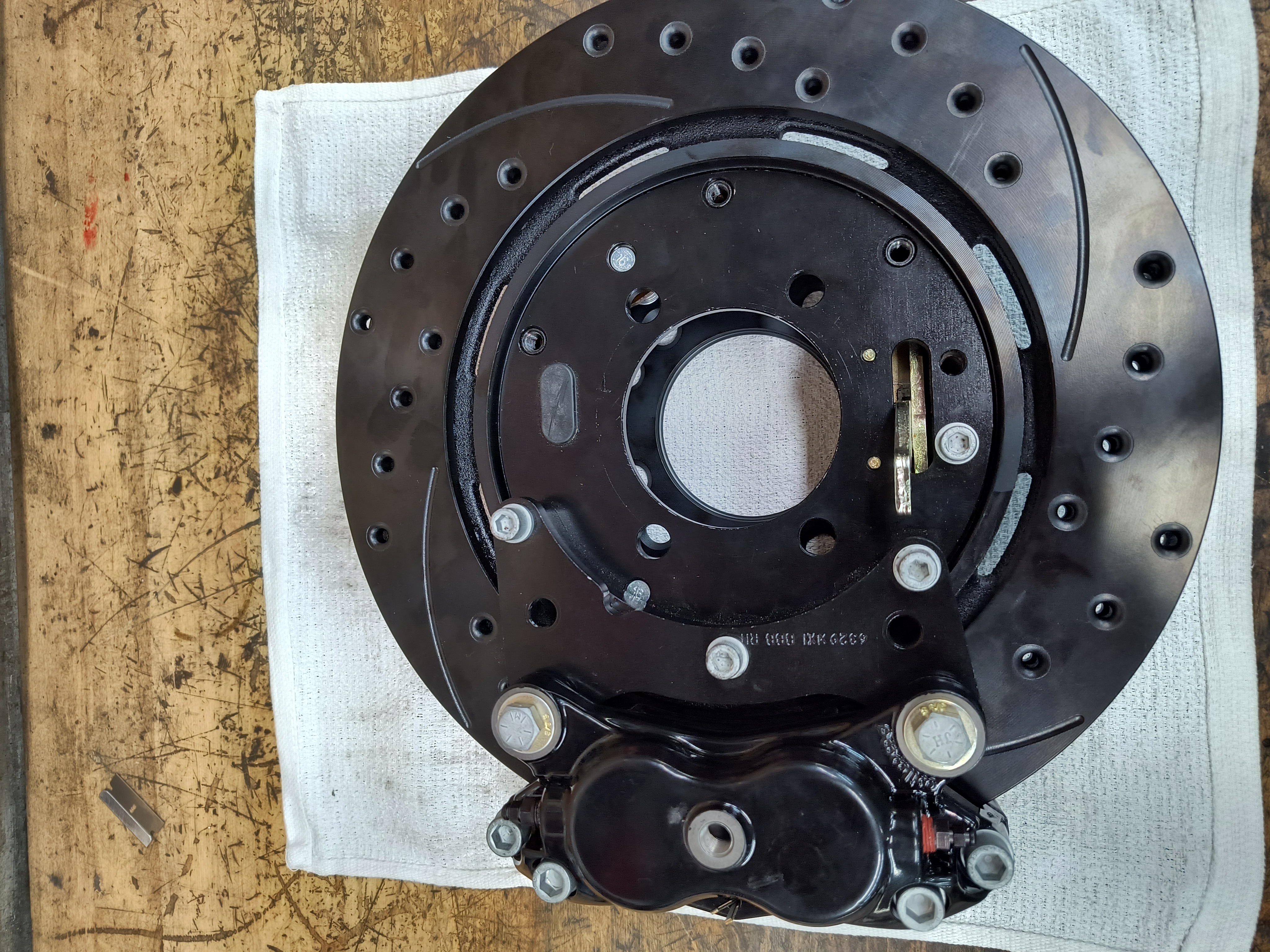

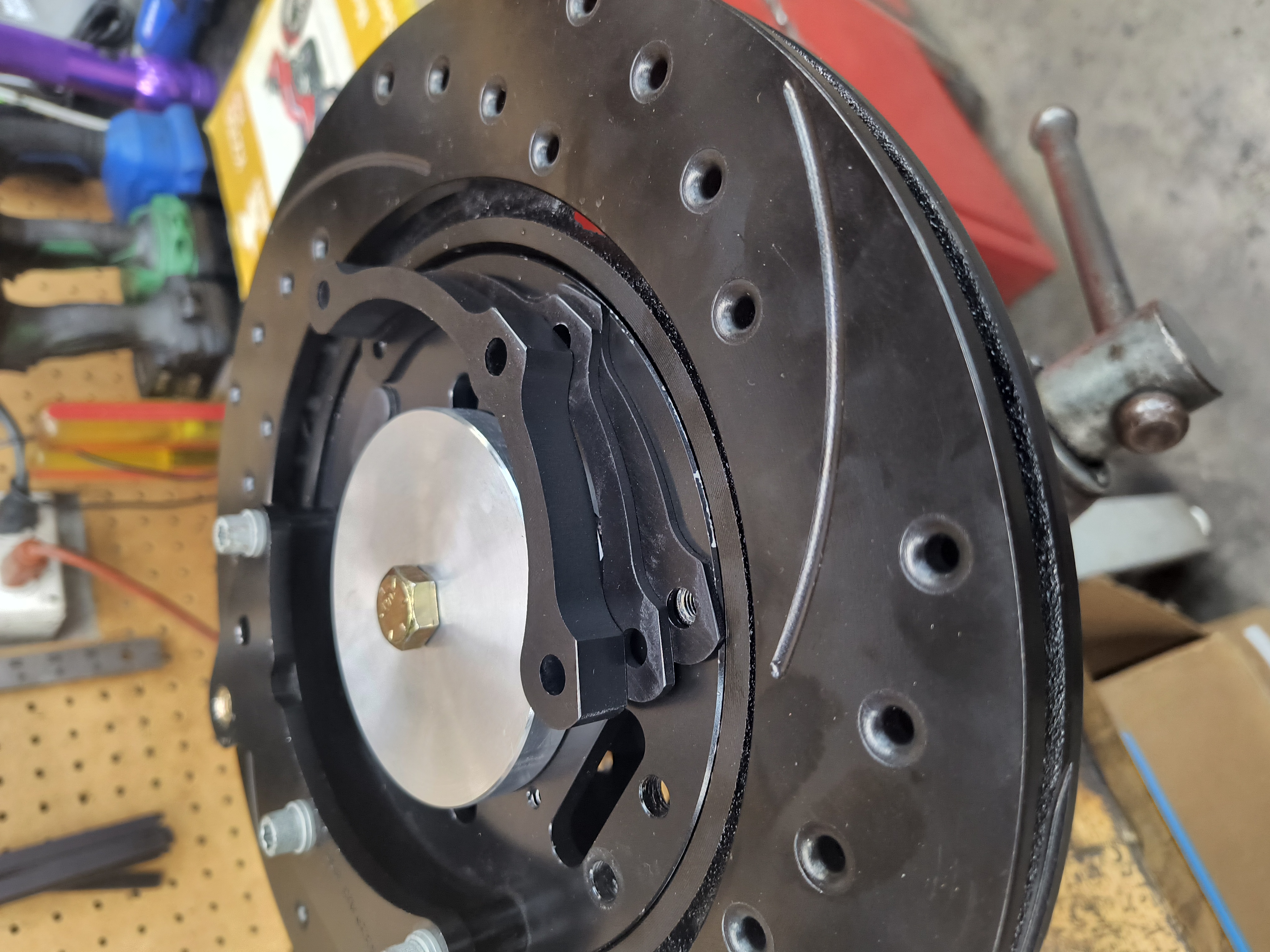

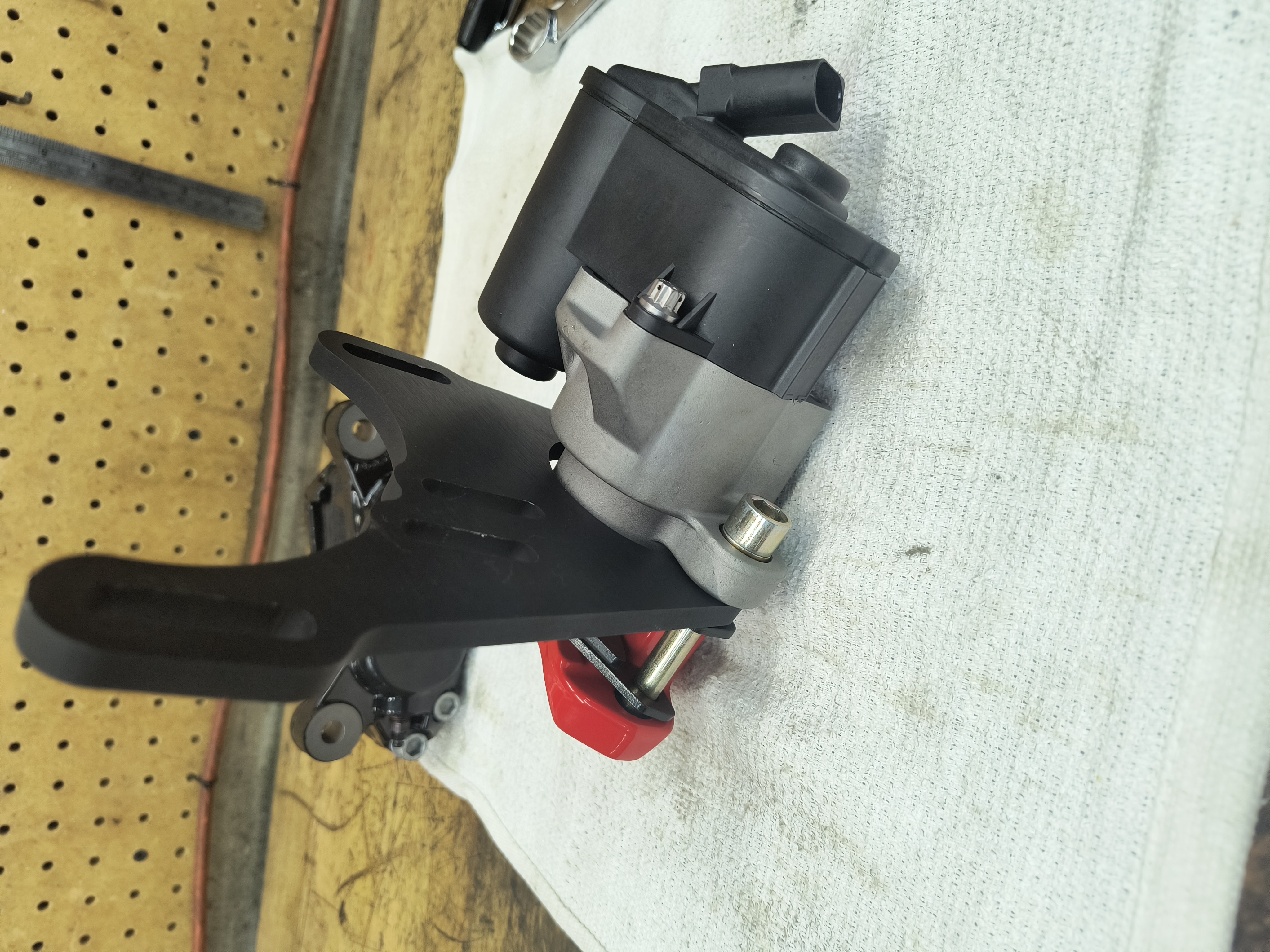

Stock DND plate to be gutted	Back side prior to install of new parts	Centering spacers as needed	Caliper bracket bolted to Caliper	Caliper and plate in place

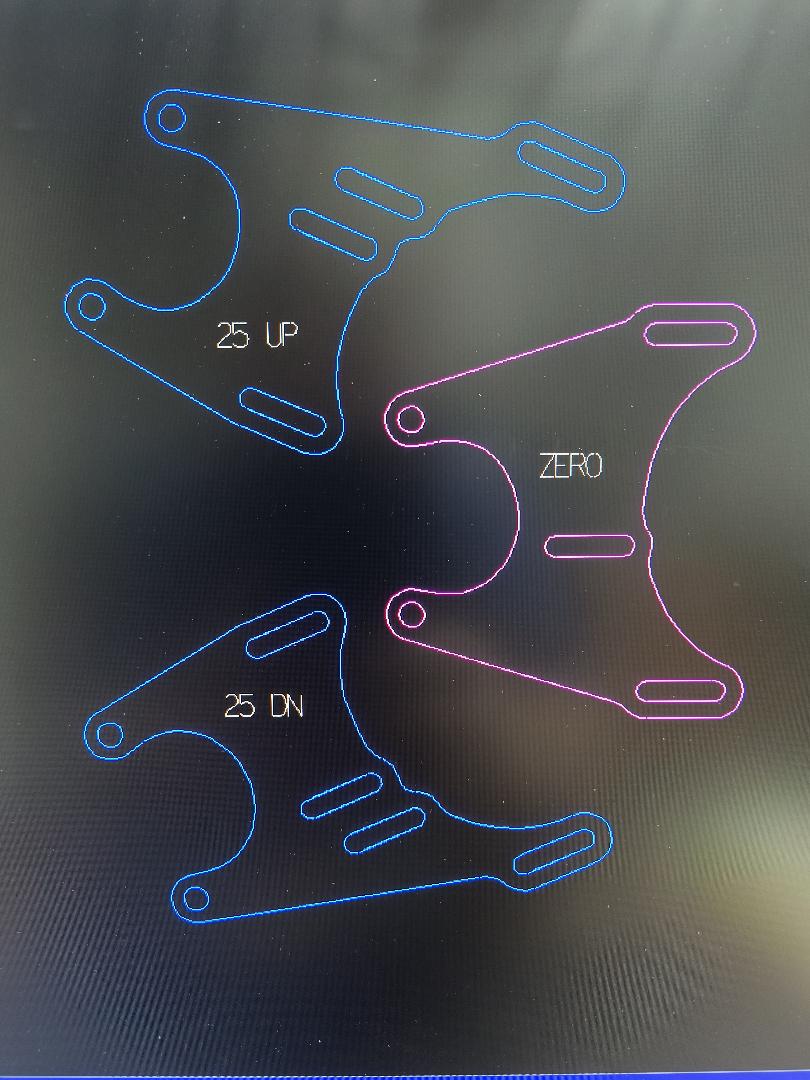

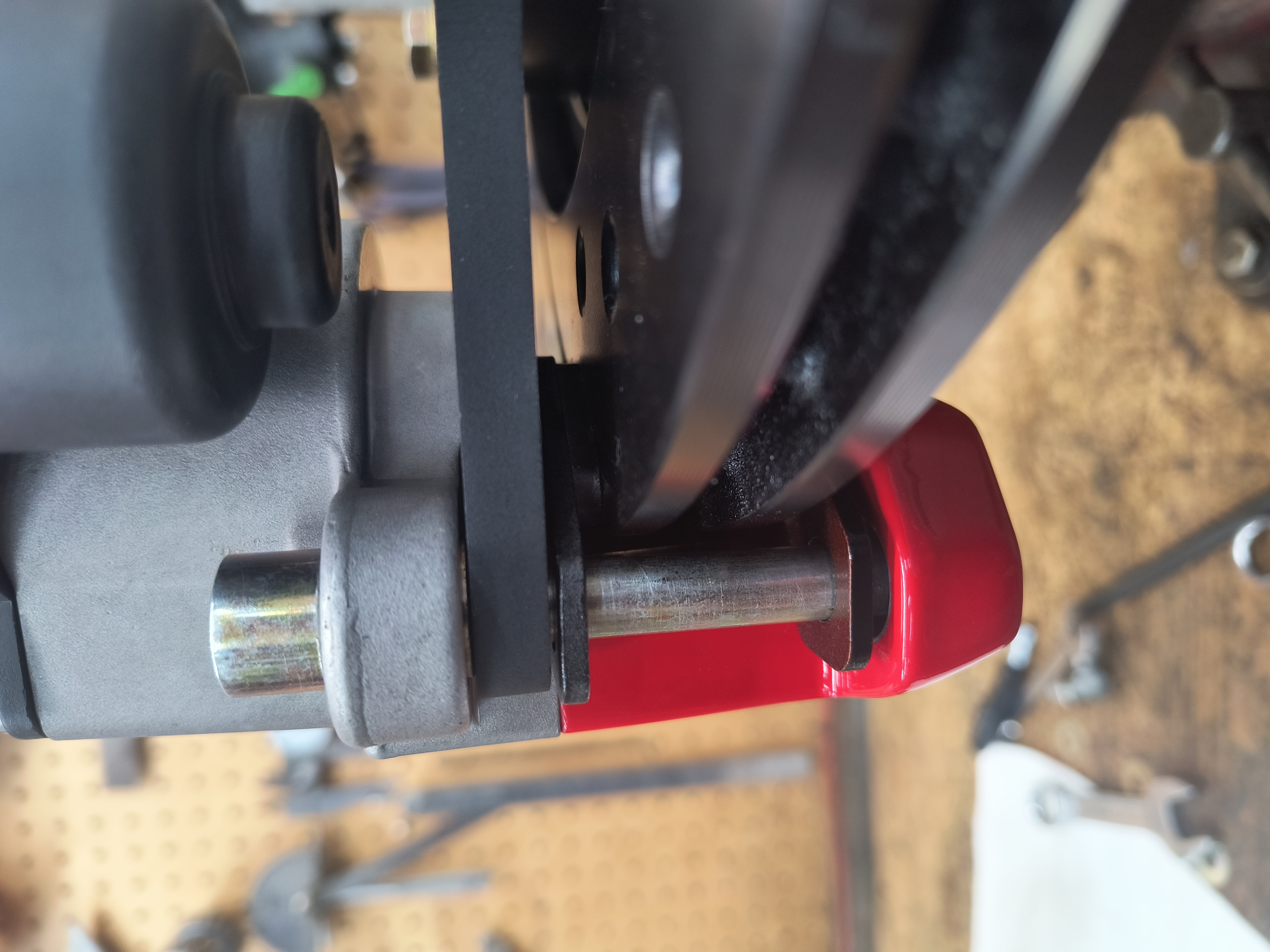

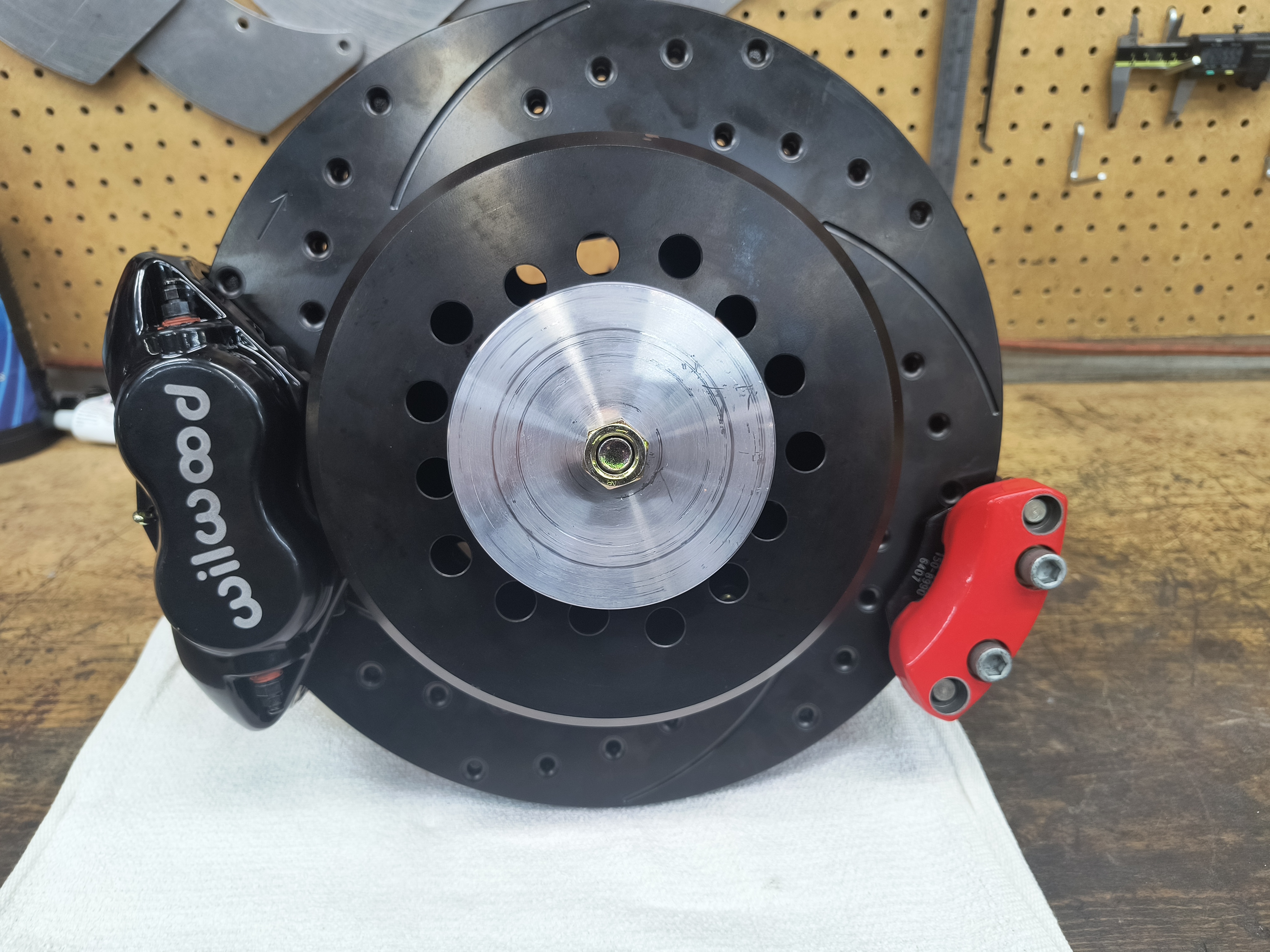

3mm pin clearance	Finished, 25° offset down shown	Component view: 0° and 25°	Visual explaination of plates	Caliper depth for reference

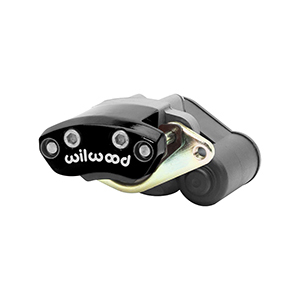

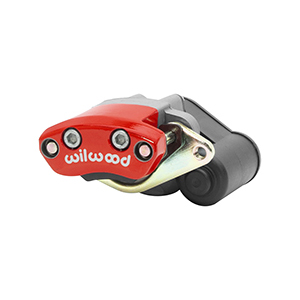

Wilwood EPB System	Standard Black or Red	EPB System Instructions	Hide-A-Pad	Hide-A-Pad

Each kit includes: Wilwood EPB system, mount brackets, assorted "banana" spacers, hardware and ground UPS. (48)

To Order:

1. Select the diameter required

2. Select your choice of mount offset: 0° or 25°

3. Select your rotor width (thickness)

4. Select the color

5. Polished option by special request $279 upcharge - CALL

For more detailed information on the Electric Parking Brake system supplied with this kit see: WILWOOD

This kit is a PARKING Brake kit. It is not to be used as an Emergency Brake or slow a moving vehicle. Its intent is to secure a stationary vehicle only.
