| FRONT KITS |
|

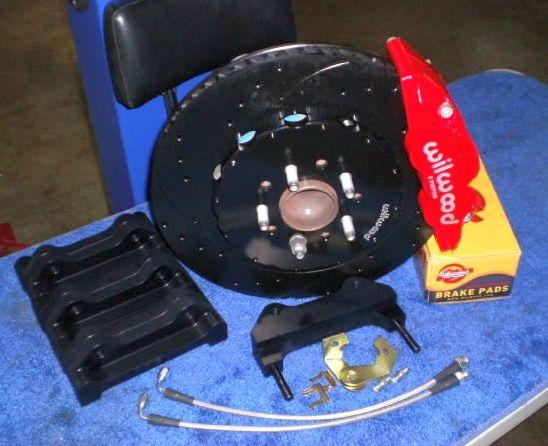

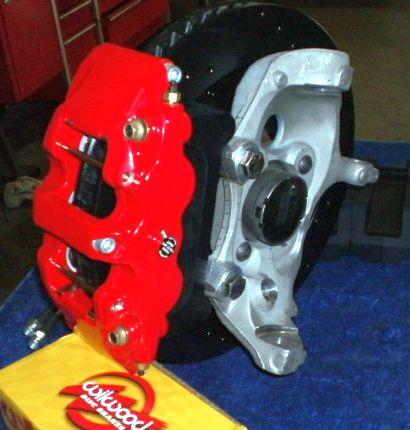

Plus 1: The TCE/Wilwood Front Caliper Kit- $989
- Wilwood FNSL6 radial mount calipers (6 piston)
- Choice of BLACK or RED powder coat finish
- BP10 street pads
- Radial mount brackets
- All required hardware

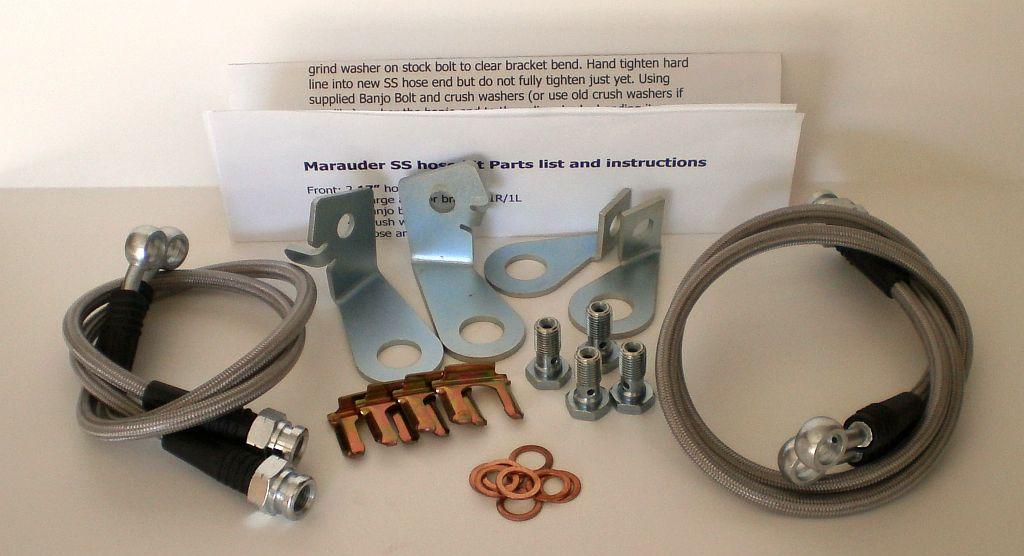

- Optional SS flex hose kit for CV and Marauder owners- ADD $50
- Optional 3/16" wheel spacer kit for stock Marauder wheels- ADD $30
|
APPLICATION: Designed for use on the stock 12" oe or aftermarket stock size rotor only. Replaces stock two piston sliding caliper offering more linear braking, superior feel and responsiveness as well a big brake appearance at a lower cost.

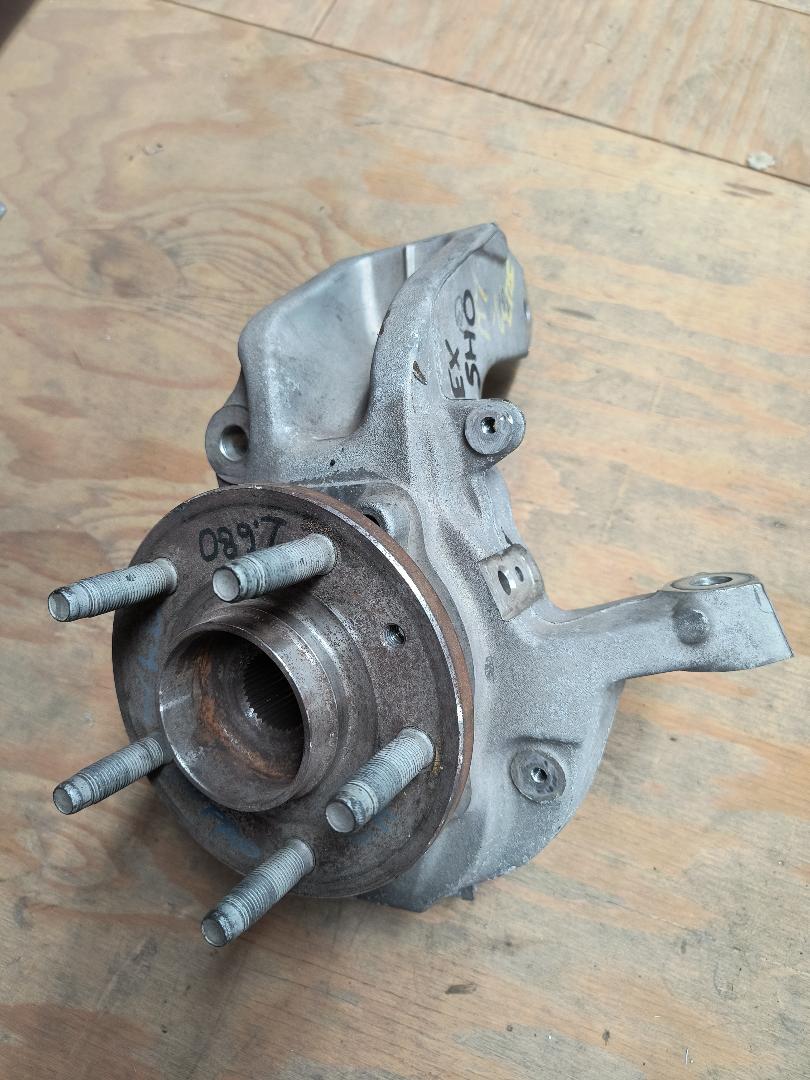

FIT: Requires 17" or larger wheels. Will require some clearance grinding of the stock aluminum spindle for bracket clearance. Wheel spacers may be needed based on wheel design.
NOTES: Please see the wheel fit page for required spoke clearance on all of these kits. Chrome MM wheels will require 3/16" spacer.
|
|
Plus 2A: The TCE/Wilwood 13" kit- $1516
- Wilwood FNSL6 calipers with stainless steel pistons (6 piston)
- Choice of BLACK or RED powder coat finish
- TCE Radial Mount brackets
- TCE spec billet aluminum rotor hats
- 13.1" x 1.10" directional cast rotors
- Gas slotted
- Wilwood BP10 pads
- TCE spec Stainless Steel braided hose kit
- All required hardware
- Optional cross drilled rotor finish- ADD $150
|
APPLICATION: Designed for maximum performance with stock wheels. Includes track and time proven six piston narrow body Wilwood calipers and TCE vented rotors and hats. Direct bolt on with minimal effort.
FIT: Requires 18" stock or aftermarket wheels. Optional wheel spacer supplied for use TBD.
NOTES: Uses TCE hats to match our rear kits.
|
|
Plus 2B: The Wilwood 12.88" kit- $call
- Wilwood FNSL6 calipers with stainless steel pistons (6 piston)
- Choice of BLACK or RED powder coat finish
- Radial Mount brackets
- Wilwood spec billet aluminum rotor hats
- 12.88" x 1.25" directional cast rotors
- Gas slotted
- Wilwood BP10 pads
- TCE spec Stainless Steel braided hose kit
- All required hardware
- Optional cross drilled rotor finish- ADD $150
|
APPLICATION: Wilwood factory replica of our popular 13" front kit. An excellent value for thoe looking for front only applications.
FIT: Stock wheels and 17" or larger alternates.
NOTES: Requires 1/8" wheel spacder for Marauder fit. Will not have complete visual compatibility to our Marauder rear kits.
|
|
Plus 3A: The TCE/Wilwood 14" kit- $1711
- Wilwood FNSL6 calipers with stainless steel pistons (6 piston)
- Choice of BLACK or RED powder coat finish
- TCE steel mount brackets
- TCE radial mount caliper brackets
- TCE spec billet aluminum rotor hats
- 14" x 1.10" directional cast rotors
- Gas slotted
- BP10 Street pads
- TCE spec Stainless Steel braided hose kit
- All required hardware
- Optional cross drilled rotor finish- ADD $150
|
APPLICATION: For the hard core user, TCE has taken the Forged Narrow Super Lite 6 and fit some custom 14" x 1.10" wide rotors to make this the first true 14" kit capable of reasonable stock wheel fit!
FIT: Requires 18" stock or aftermarket wheels. Optional wheel spacer supplied for use TBD.
NOTES: Can be converted from the P1 kit for former customers looking to increase size. Can be had in Wilwood fashion (Wilwood hats and rotors) for full matchy-matchy for use with Wilwood 9" rear kits on custom builds.
|
|
Plus 3B: The Wilwood 14" kit- $call
- Wilwood FNSL6 calipers with stainless steel pistons (6 piston)
- Choice of BLACK or RED powder coat finish
- TCE steel mount brackets
- Wilwood radial mount mount brackets
- Wilwood spec billet aluminum rotor hats
- 14" x 1.25" directional cast rotors
- Gas slotted
- BP10 Street pads
- TCE spec Stainless Steel braided hose kit
- All required hardware
- Optional cross drilled rotor finish- ADD $150
|
APPLICATION: Wilwood factory replica of our popular 14" front kit. An excellent value for thoe looking for front only applications.
FIT: Stock wheels and 17" or larger alternates.
NOTES: Requires 1/8" wheel spacder for Marauder fit. Will not have complete visual compatibility to our Marauder rear kits.
|
|

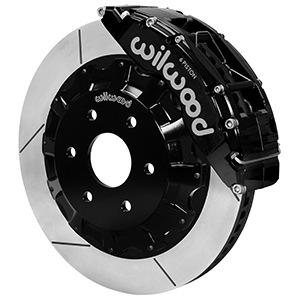

Plus 4A: The TCE/Wilwood 14" Aero6 Front Kit- $2233
- Wilwood Aero6 radial mount calipers (6 piston)
- Choice of BLACK or RED powder coat finish
- BP10 street pads
- TCE radial mount brackets
- 14 x 1.25" directional cast GT rotors
- Gas slotted
- Aluminum brake hats
- Stainless steel hose kit
- All required hardware
- Optional cross drilled rotor finish- ADD $150
|
Application: The TCE/Wilwood front kit replaces the entire front brake system with larger and wider two piece rotors, massive Aero6 calipers and stunning big brake looks. The Aero6 calipers have roughly 20% more friction material than the FNSL6 and a stiffer body to control flex under extreme conditions.
Fit: Stock and 18" and larger wheels with spacers. (not supplied) Estimated spacer for stock wheel: 10mm. Will require longer wheel studs.
Notes: Available without hose kits for custom build applications not requiring Panther chassis brackets and M10 hoses etc. You plumb it.
|
|
Plus 4B: The Wilwood 14" Aero6 Front Kit- $call
- Wilwood Aero6 radial mount calipers (6 piston)
- Choice of BLACK or RED powder coat finish
- BP10 street pads
- Wilwood radial mount brackets
- 14 x 1.25" directional cast GT rotors
- Gas slotted
- Aluminum brake hats
- Stainless steel hose kit
- All required hardware
- Optional cross drilled rotor finish- ADD $150
|
Application: Wilwood's copy of our popular 14" front kt. The Aero6 calipers have roughly 20% more friction material than the FNSL6 and a stiffer body to control flex under extreme conditions.
Fit: Stock and 18" and larger wheels with spacers. (not supplied) Estimated spacer for stock wheel: 14mm. Will require longer wheel studs.
Notes: Available without hose kits for custom build applications not requiring Panther chassis brackets and M10 hoses etc. You plumb it.
|
|
Plus 5: The TCE/Wilwood 15" Aero6 Front Kit- $2295
- Wilwood Aero6 radial mount calipers (6 piston)
- Choice of BLACK or RED powder coat finish
- BP10 street pads
- TCE radial mount brackets
- 15 x 1.25" directional cast GT rotors
- Gas slotted
- Aluminum brake hats
- Stainless steel hose kit
- All required hardware
- Optional cross drilled rotor finish- ADD $150
|
Application: The custom, larger version of the above for those with 19" or larger wheels. This is the largest standard kit TCE has produced for the Marauder yet.
Fit: Requires 19" and larger wheels with spacers. (not supplied) Estimated spacer for stock wheel: 10mm. Will require longer wheel studs.
Notes: Available without hose kits for custom build applications not requiring Panther chassis brackets and M10 hoses etc. You plumb it.
|
| REAR KITS |
|
Rear: The 14" TCE/Wilwoood kit- $1979*
- Wilwood FNSL4 calipers with stainless steel pistons (4 piston)
- Choice of RED or BLACK powder coat finish
- 14" x .81" directional cast rotors
- Gas slotted
- Iron rotor hats for parking brake
- BP10 street pads
- TCE steel mounting brackets
- TCE spec Stainless Steel braided hoses
- All required hardware
- Optional cross drilled rotor finish- ADD $150
*A $300 refundable core deposit is also required on the stock iron caliper mounts and dust plates. All cores must be returned in good condition and within 90 days from the date your kit shipped from TCE. Returns after 90 days will not be refunded.
|
APPLICATION: New for 2019, this is a larger version of our discontinued 13" kit and uses the radial mount FNSL4 caliper to accept the larger disc. Kit retains the factory parking brake.
FIT: Stock wheels and 18" or larger alternates.
NOTES: Requires disassembly and service of the differential for shimming purposes. See Core Charge note to the left. 13" kits cannot be converted to 14".
|
