TCE Performance Products


1999-2004 Ford Lightning & HD F150



FRONT KITS

ORDERING

TCE/Wilwood 14" Front Kit

  • Wilwood Aero6 differential bore calipers (6 piston calipers)
  • Choice of BLACK or RED powder coat finish
  • TCE spec radial mounting brackets
  • 14" x 1.25" directional cast rotors
  • Gas slotted
  • TCE spec billet aluminum rotor hats
  • Custom hubs with M14 studs
  • New bearings and seals
  • Wilwood BP20 pads
  • Stainless steel hose kit
  • All required hardware
  • Optional cross drilled rotor finish

Application: Building upon our success with the older 13" front kits:  Today TCE takes it to a whole new level. Now offering the full 14" Aero6 kit -- which is the most ideal kit we can produce. Massive caliper sizing and 'full size' rotors assure buyers of repeated and sure footed stopping power....time and time again.



Fit: Stock and 18" or larger wheels. Stock '99 wheels require use of optional .125" wheel spacer plate.



Notes:  Our most ideal kit for open track use where pad options, and durability are a top priority.  Sold only in M14 Stud configuration.

14" Lightning Front Kit options


TCE/Wilwood 15" Aero6 Front Kit

  • Wilwood Aero6 differential bore calipers (6 piston calipers)
  • Choice of BLACK or RED powder coat finish
  • TCE spec radial mounting brackets
  • 15" x 1.25" directional cast rotors
  • Gas slotted
  • TCE spec billet aluminum rotor hats
  • Custom hubs with M14 studs
  • New bearings and seals
  • Wilwood BP20 pads
  • Stainless steel hose kit
  • All required hardware
  • Optional cross drilled rotor finish

Application: Time marches on..and to that end today we can offer our customers a full blown 15" kit using the same proven Aero6 calipers from the above 14" front kit! These kits provide more mass, greater cooling and a yet bolder look.



Fit: Requires 19" or larger wheels.



Notes:  Former 14" customers can upgrade to this with the purchase of rotors and new 15" brackets.  Sold only in M14 Stud configuration.





4 Kits Remain

$2500 to the door (US48)

Call to order

+$135 Drilled/Slotted





This was our first 15" front kit. Prior to the SX6 calipers we supplied these kits with the same Aero6 body caliper as found on the 14" kits.

 TCE/Wilwood 15" SX6 Front Kit

  • Wilwood SX6 differential bore calipers (6 piston calipers)
  • Choice of BLACK or RED powder coat finish
  • TCE spec radial mounting brackets
  • 15" x 1.25" directional cast rotors
  • Gas slotted
  • TCE spec billet aluminum rotor hats
  • Custom hubs with M14 studs
  • New bearings and seals
  • Wilwood BP10 pads
  • Stainless steel hose kit
  • All required hardware
  • Optional cross drilled rotor finish

Application: New for 2022 this is the next gen of Big Brakes for the Lightning. The SX6 offers bold new styling and performance. With yet larger and longer lasting pads than the proven Aero6 kit above this monster will fill even the largest of wheels and style needs.



Fit: Requires 19" or larger wheels.



Notes:  Sold only in M14 Stud configuration.

15" Lightning SX6

TCE/Wilwood 16" Front Kit

  • Wilwood TC6 differential bore calipers (6 piston)
  • Choice of BLACK or RED powder coat finish
  • TCE spec radial mount bracket
  • 16" x 1.375" directional cast rotors
  • Gas slotted
  • TCE spec billet aluminum rotor hats
  • Custom hubs with M14 studs
  • New bearings and seals
  • Wilwood BP10 pads
  • Stainless steel hose kit
  • All required hardware
  • Optional cross drilled rotor finish

Application: Our largest 2G Truck kit! Massive 16" rotors and calipers over 13" tall fill even the largest wheels with quality, performance and value. Take it to the limit with this kit.



Fit: Requires 20" or larger wheels, fits stock HD truck wheel.



Notes: Great kit for street and show truck use. Not ideal for open track use due to limited pad options and tire choices for wheels.



16" Lightning Front Kit options



REAR KITS ORDERING

TCE/Wilwood 13" Rear Kit

  • Wilwood FSL calipers (4 piston)
  • Choice of BLACK or RED powder coat finish
  • Steel mounting brackets
  • 12.88" x 1.10" directional cast rotors
  • Gas slotted
  • Aluminum rotor hats
  • BP10 pads
  • Stainless steel hose kit
  • All required hardware
  • Over sized axle C-clips for controlling axle floa
  • Optional cross drilled rotor finish

Application: For those open track day buyers the 13" Rear kit is ideal. This kit offers an improvement to overheating problems found on stock rear rotors by way of our vented and gas slotted design. Responsiveness is improved with four piston calipers and pad options make track tuning a breeze.



Fit: Fits 17" or larger wheels. Stock wheels will need a wheel spacer.



Notes: This is a NON Parking Brake kit. Requires removal of axles for installation and adjustment to rear C-clips to contain axle float.

13" Lightning Rear Kit options

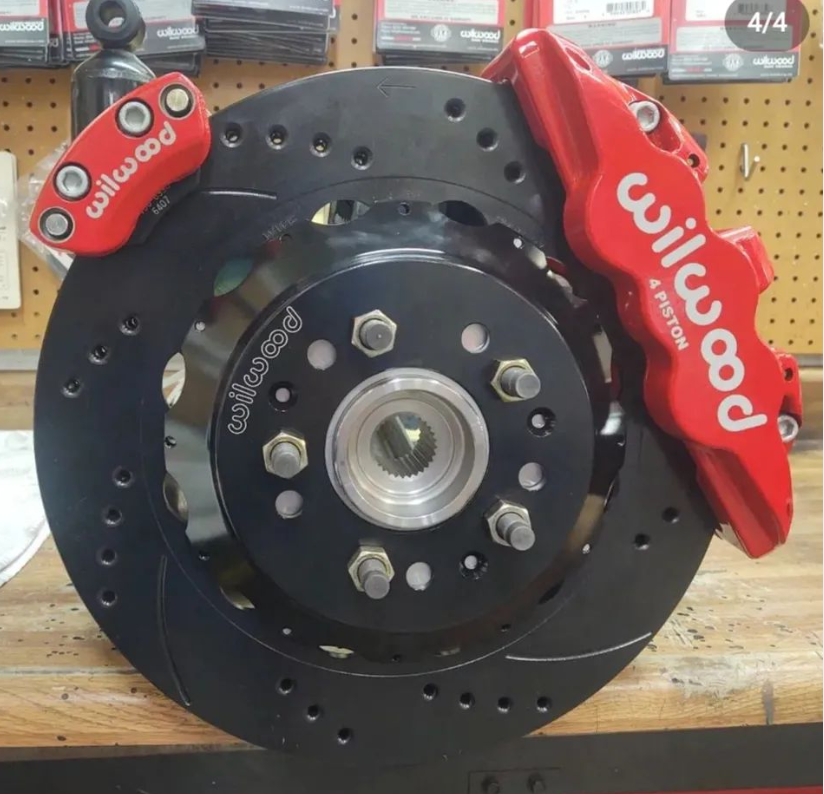

TCE/Wilwood 14.25" Rear kit

  • Wilwood Aero4 calipers (4 piston)
  • Choice of BLACK or RED powder coat finish
  • Combo Steel and Aluminum mounting brackets
  • 14.25" x 1.10" directional cast rotors
  • Gas slotted
  • Aluminum rotor hats
  • BP10 pads
  • Stainless steel hose kit
  • All required hardware
  • Over sized axle C-clips for controlling axle float
  • Optional cross drilled rotor finish
  • Optional Electronic Parking Brake

Application: New in 2023, TCE has moved on from the former 15" kit with the drum-in-disc parking brake. We simply could not get cores back and had a number of complaints about 'non matching' items in the builds. To that end we have designed an all new rear kit with the Wilwood EPB- Electronic Parking Brake. These kits uses the proven Aerolite 4 as a road going caliper and combine that with the Electronic Parking Brake for those who need or want this feature. Available with or without EPB.



Fit: Stock 18s will require 10mm wheel spacer



Notes: Requires disassembly of rear axle and C-clip adjustment. Removal of factory cables and routing of wiring for the controller. Base kit is NON parking brake. This kit should be paired with either the 15 or 16" front kit only due to brake balance requirements.

*EPB Kit only is the parking brake portion of the complete kit. For former 14.25 customers to add the EPB to their previous purchase! It will not fit any other kit but the 14.25" kit listed here.

14.25 Rear Kit Base
14.25 Rear Kit w/EPB

EPB only






THE FINE PRINT:

FITMENT:  It is up to the consumer to verify proper vehicle and wheel fit. Wheel clearance requirements can be found on the WHEEL FIT page in the TOOLBOX above. If you are unsure of the fit or application please call or email prior to ordering. TCE makes no guarantee of wheel clearance.

TERMS AND CONDITIONS: All sales subject to 20% restocking fee. Return shipping is on you. No credit will be given for installed, mishandled or damaged goods.

SHIPPING: Shipping charges will be applied in the Shopping Cart prior to check out. Prices are based on an average delivery zone. Additional shipping charges may apply to AK, CA and HI. Call before you order for details.
