Plese call/email for current pricing based on selected part number.
Cobra IRS Rear Kit With or W/O Parking Brake
The 13" Rear Kit
Wilwood FNSL4 calipers (4 piston)
Choice of BLACK or RED finish
TCE radial mount brackets w/P-Brake plates
Wilwood 12.88" directional rotors
Gas slotted
Wilwood Billet aluminum rotor hats
BP10 pads
SS hose kit
Optional cross drilled rotors
Optional Parking Brake Format includes:
Wilwood MC4 mechanical spot calipers
Wilwood universal (cut to fit) cable kit
NEW! EPB option- no cables!!

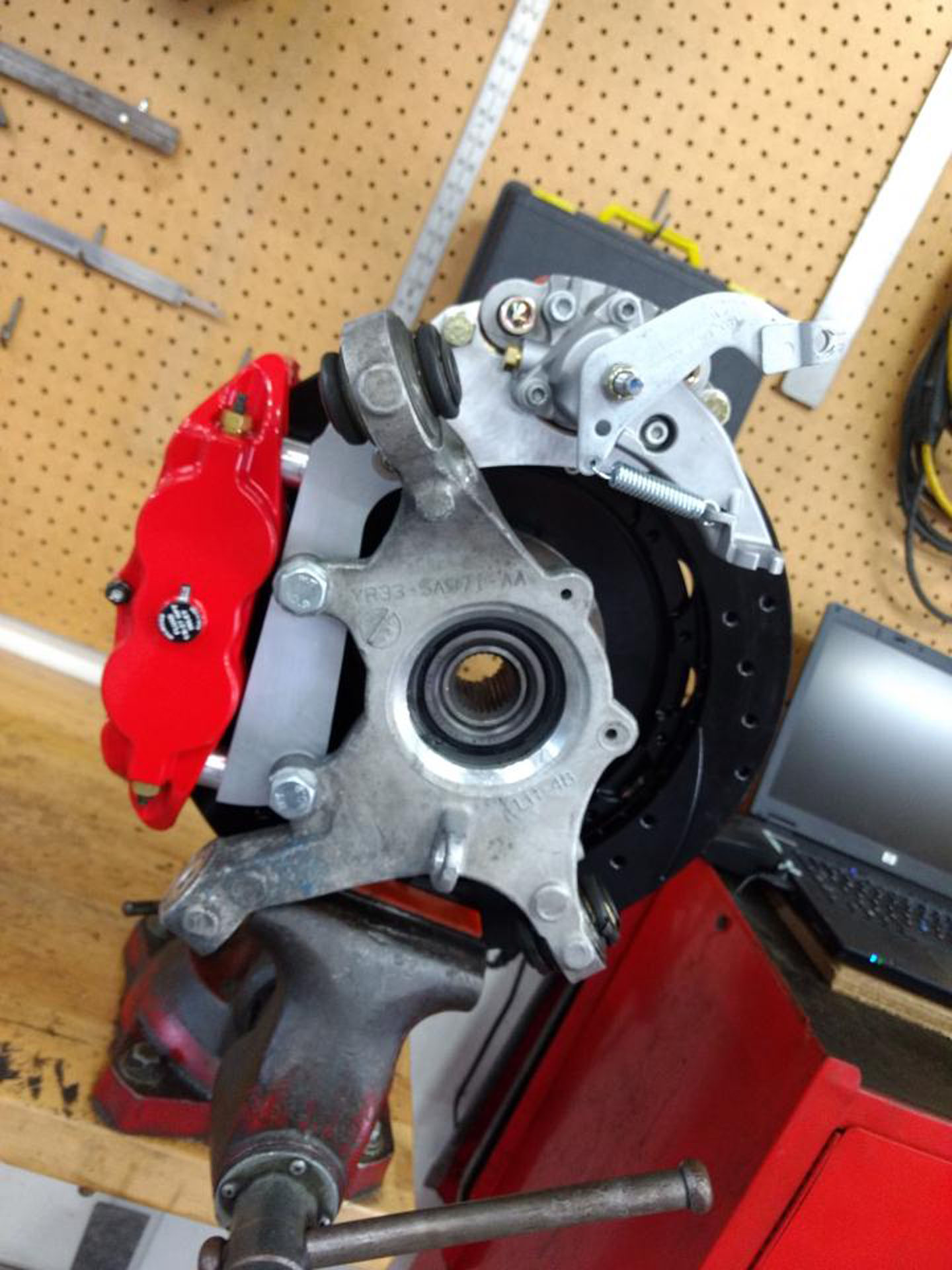

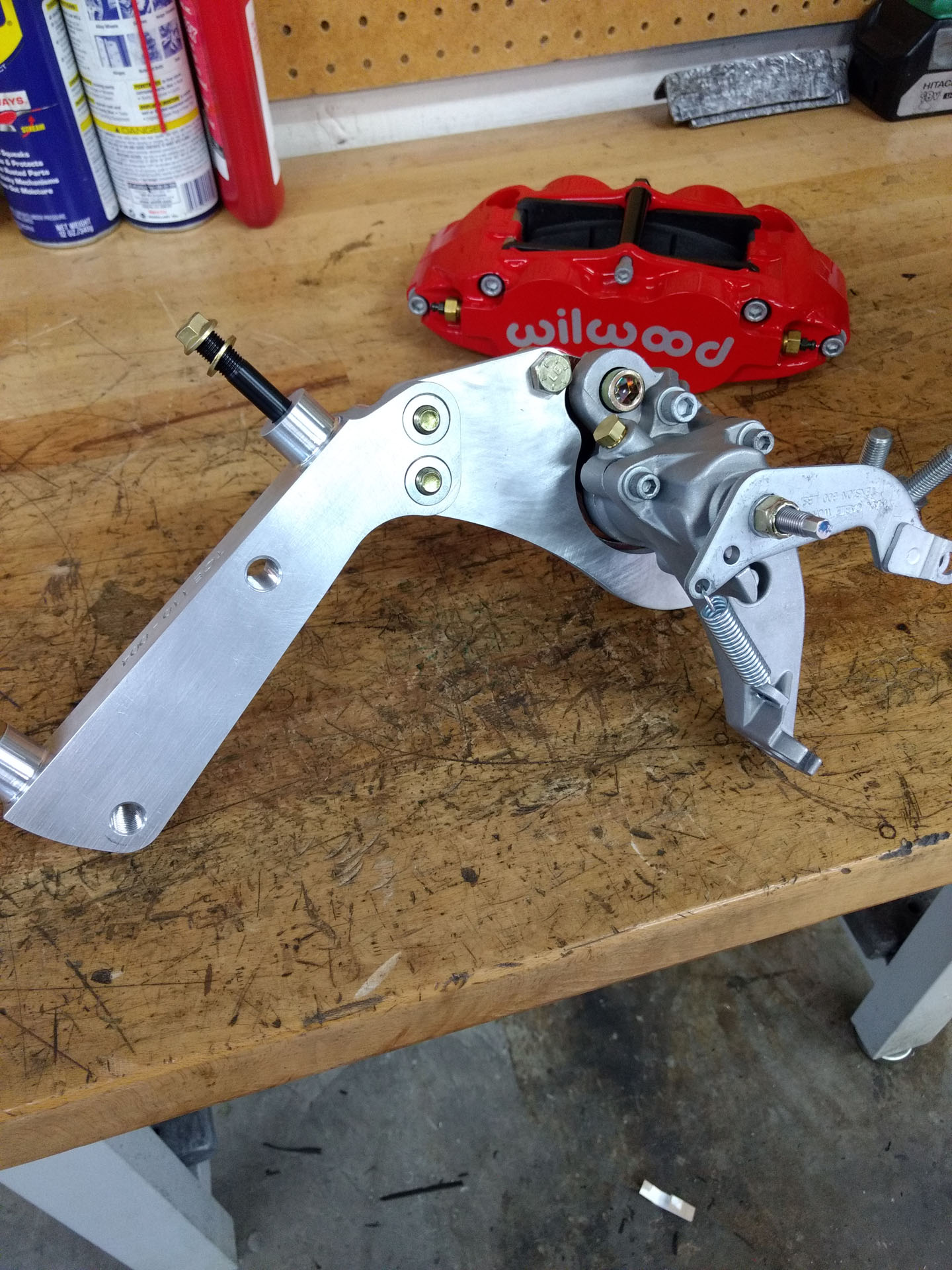

Application: This TCE/Wilwood kit combines the necessary parts to boost rear brake performance as well as keep the often required parking brake for street use. Our exclusive double mount bracket secures both the four pot caliper and the MC4 mechanical spot caliper to a 12.88" diameter disc. Options include choice of color and rotor finish.
Fit: Requires 17" or larger wheels.
Notes: Parking brake cables included with MC4 Kit, will require some creativity.

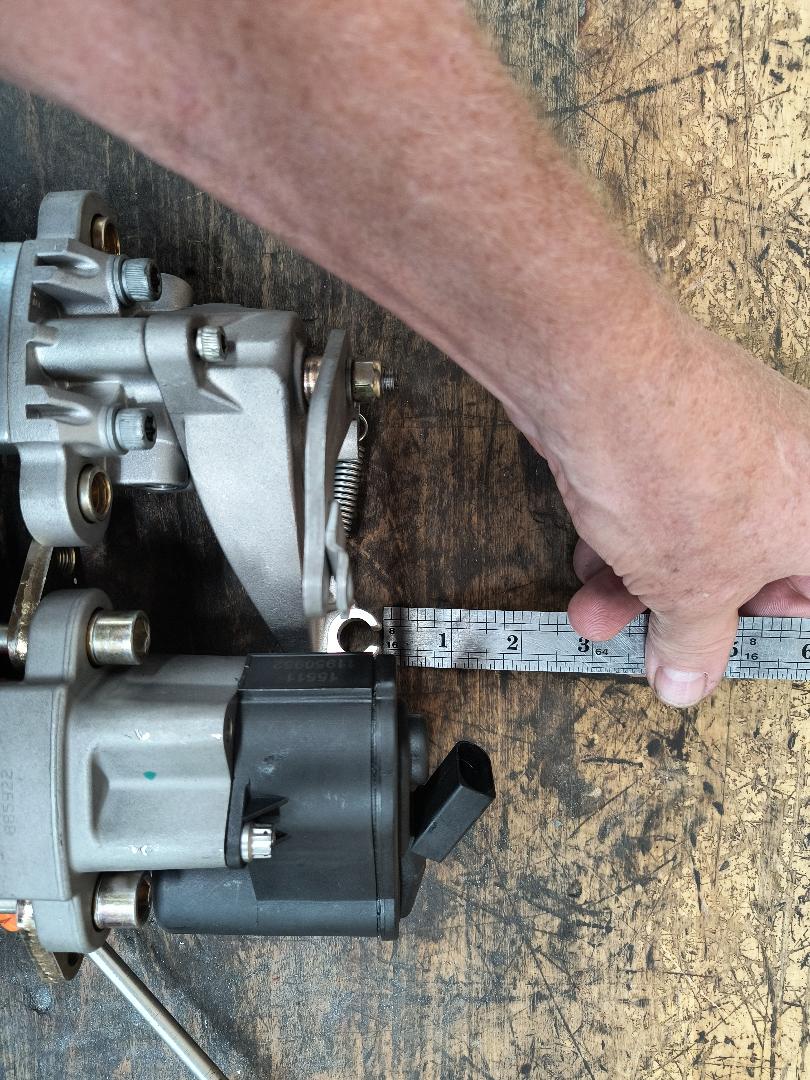

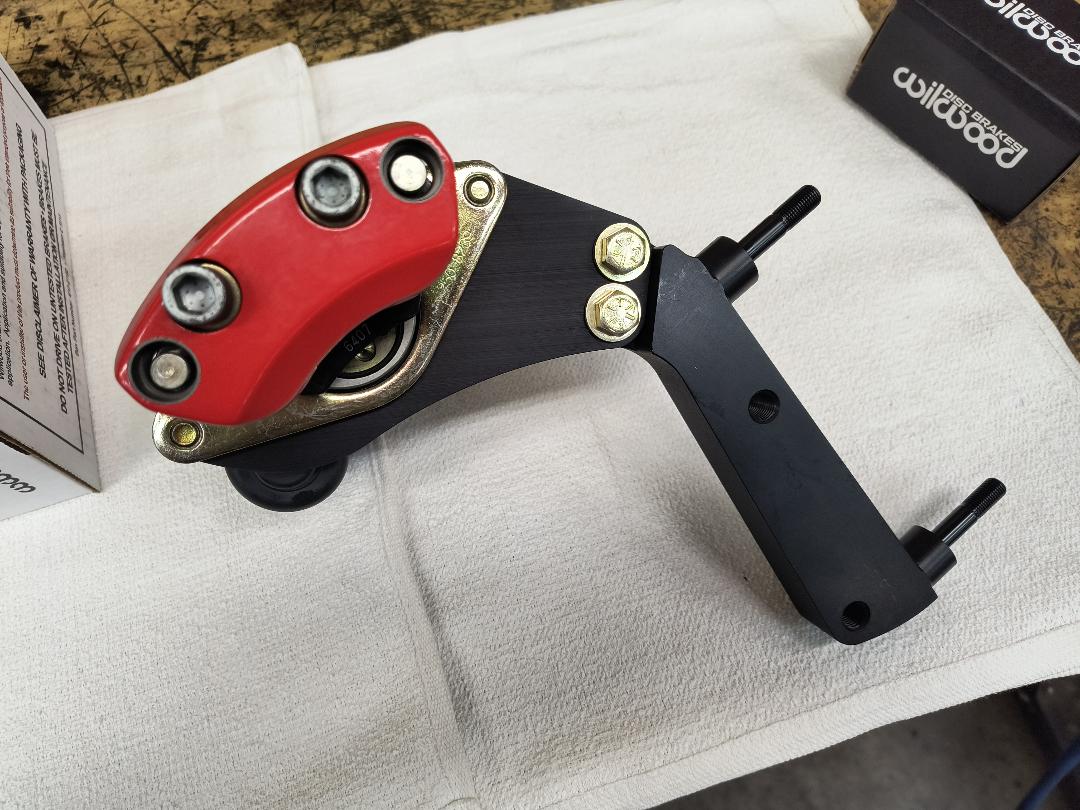

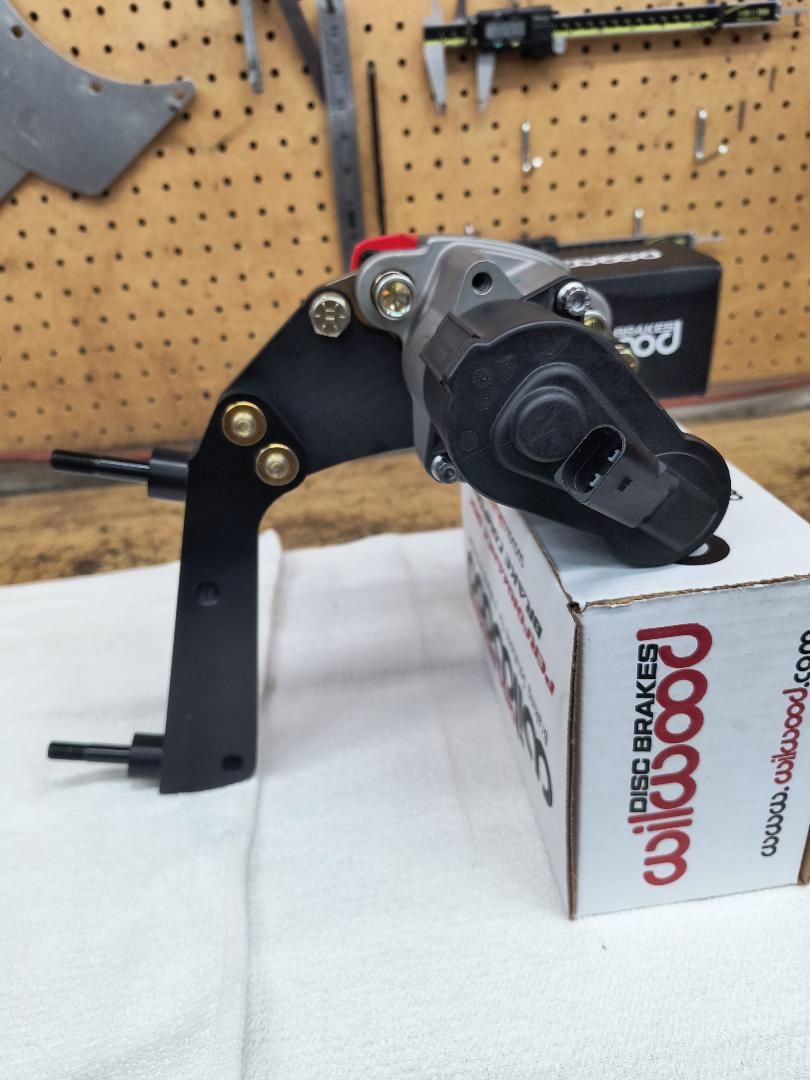

The new EPB system is the 2025 version of this kit. No more futzing with cables, the EPB is a plug and play parking brake kit. It will replace the older MC4 model shown in the images below with the motorized version of this caliper. Same mounting and nearly the same required clearances- the tip of the hex drive is nearly the same DEPTH as the back of the motor drive. The EPB can be swapped from side to side and the motor can be indexed on the caliper body offering a couple of clearance options where necessary.
FITMENT: It is up to the consumer to verify proper vehicle and wheel fit. Wheel clearance requirements can be found on the WHEEL FIT page in the TOOLBOX above. If you are unsure of the fit or application please call or email prior to ordering. TCE makes no guarantee of wheel clearance.
TERMS AND CONDITIONS: All sales subject to 20% restocking fee. Return shipping is on you. No credit will be given for installed, mishandled or damaged goods.
SHIPPING: Shipping charges will be applied in the Shopping Cart prior to check out. Prices are based on an average delivery zone. Additional shipping charges may apply to AK, CA and HI. Call before you order for details.
