For years TCE has brought you a host of options starting with the Magnum and 300C. From our simple "Caliper Kits" to a full blown 16" Front kit TCE has you covered. The popular 14" Aero6 kit proved so successful that Wilwood has put it into production and made it a factory kit- saving you some money and adding an all new rear kit to the mix! For the drag racing market TCE offers a front and rear Drag Kit allowing the fit of 15" drag wheels- yet retaining the factory parking brake making this kit suitable for both the street and strip. Check out the options below and see which ones meet your needs!
Wilwood 14.25 Aero6/Aero4 4X Kit *Now including AWD!
FITMENT: It is up to the consumer to verify both vehicle and wheel fit. Application data is available by clicking the HELP ME INSTALL IT link for both front and rear kits. Wheel fit data can be viewed on page 3 of that pdf. It is up to the consumer to determine the suitablity of use for any and all products upon their vehicle. TCE makes no claim to fit beyond the data referenced above.
AWD KITS include TCE/Wilwood front kit featuring the same components but TCE produced brackets, alternate aluminum hats and dedicated ss hoses for use on the AWD spindle. Rear kits will ship from Wilwood, Front kits will include TCE shipped product also. Mounting similar to that of the RWD application except the bracket is bolted to the outer side of the spindle and the caliper now forward of center like your stock calipers- not to the rear of the spindle as on the RWD car shown in the SHOW ME and Help me install it links. These kits also off more wheel clerance! The custom nature of this kit makes it more costly to produce.
Unsure?: If you are unsure of the fit or application please call or email so we can help you select the proper kit!
*SHIPPING: Free Ground UPS in continental USA only. No out of country sales. Please call or email for all others.
TERMS AND CONDITIONS: All sales subject to 20% restocking fee. Consumer will pay all return shipping. No credit will be given for installed, mishandled or damaged good.
SINGLE KITS, Front 2006+
The TCE Front Drag Kit
Wilwood DP four pot caliper (4 piston)
Type III Grey Anodized
BP10 street pads
TCE Radial mount brackets *Specify RT or SRT
Custom 12.25" vented rotor
Plain finish (no slots or holes)
Stainless steel hose kit
All required hardware
Optional BLACK or RED powder coat finish
Optional 2pc hat/rotor, reduces wheel stud grip range
Optional 10pc extended stud kit for NHRA rules
All options include ground UPS shipping. *Cont. US
Front Rotor Kit Only
Application: For the Drag Racing enthusiast this front kit offers a profile and low clearances needed to fit many 15" drag wheels, skinnies and slicks! Designed to be a safe daily use/race kit; making it suited for both street and track use. Optional longer wheel studs available for NHRA requirements.
Fit: All factory wheels and many 15" Drag Wheels.
Notes: Same required clearance diameter as our rear drag kit. But caliper is closer to the spokes due to the wider rotor width. Shares both pads and appearance with rear kit! Select from RT or SRT app.Hellcat/Demon: SRT Kit

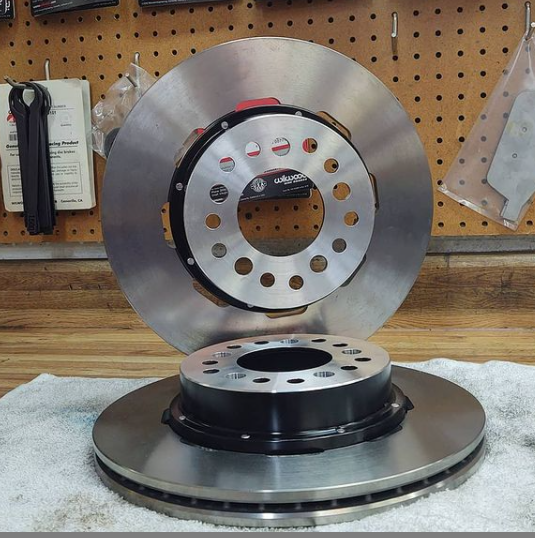

*New for 2021: TCE custom 2pc hats and rotors! These HD parts replace the common one piece cast iron rotor with a fatter and beefier rotor casting and aluminum center 'hat' section. Sold fully assembled and ready for installation. Inreases track width by .300" per side. Reduced wheel nut engagement by .300" per side.
Specs: Pair 28lbs vs 34lbs. Width increased .100".
Track width increase of 1/4" per side- verify wheel studs being used.

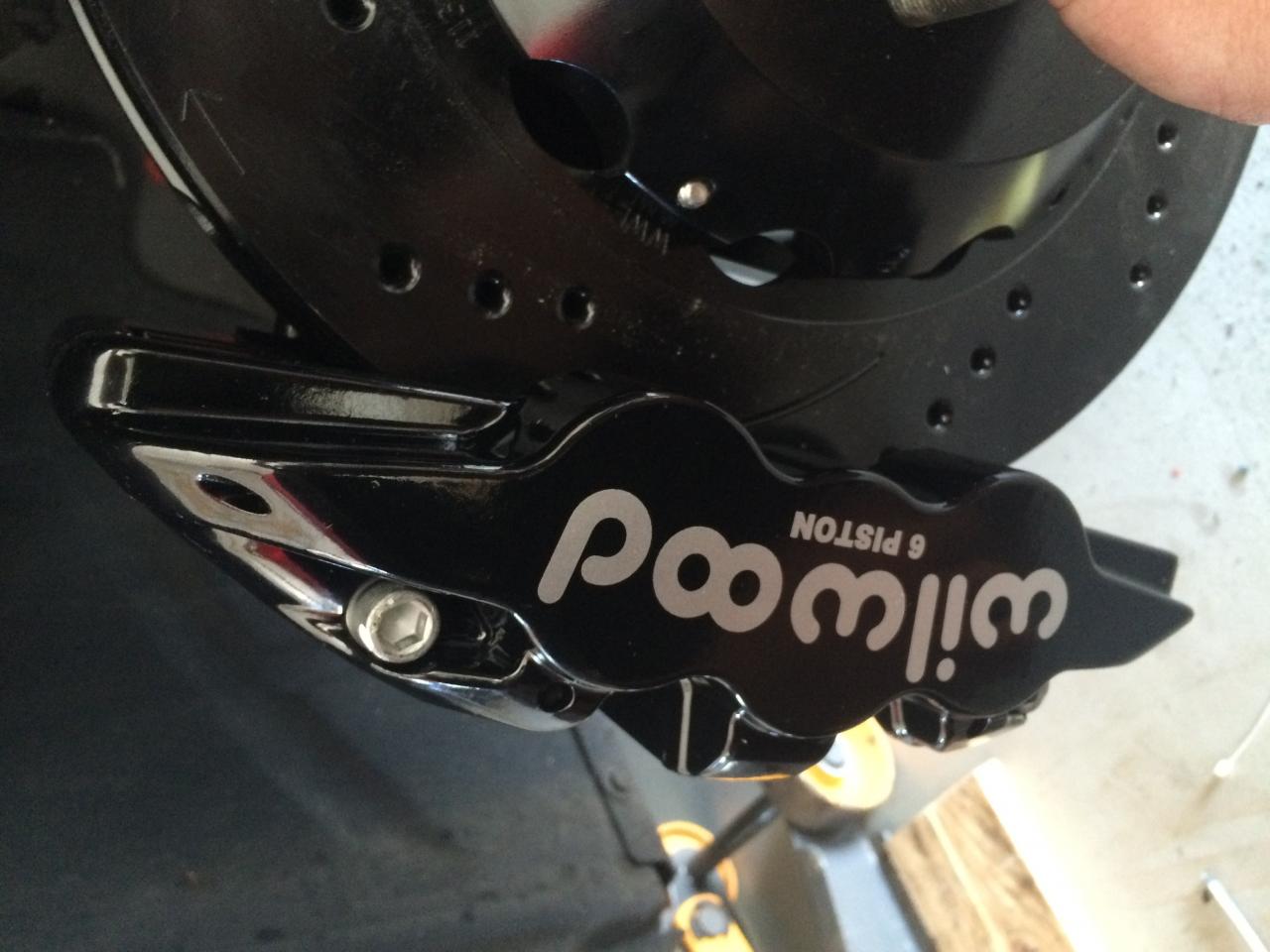

The Aero6 Front Caliper Kit RT & AWD
Wilwood Aero6 radial mount calipers (6 piston)
Choice of BLACK or RED powder coat finish
TCE spec billet aluminum radial mount brackets
BP10 street pads
Stainless steel hose kit
All required hardware
ROTORS NOT INCLUDED
See NOTES to the right
Free Shipping*
Application: Available for both RT and SRT application the Aero6 Caliper Kits are a great way to improve brake performance on a budget. For RT owners you can upgrade to 14.2" SRT rotors and our caliper kits for a low cost. For SRT owners you can remove those problematic stock calipers and have a greater choice of easily serviced pads for track use!
Fit: Fits both stock RT and SRT wheels or 18" and larger alternates.
Notes: Must specify spindle application; RT or SRT, for proper brackets. Must specify if car is AWD.
*Late 2013 and up cars have M14 mount bolts we must know if you have this. RT kit fits AWD cars also

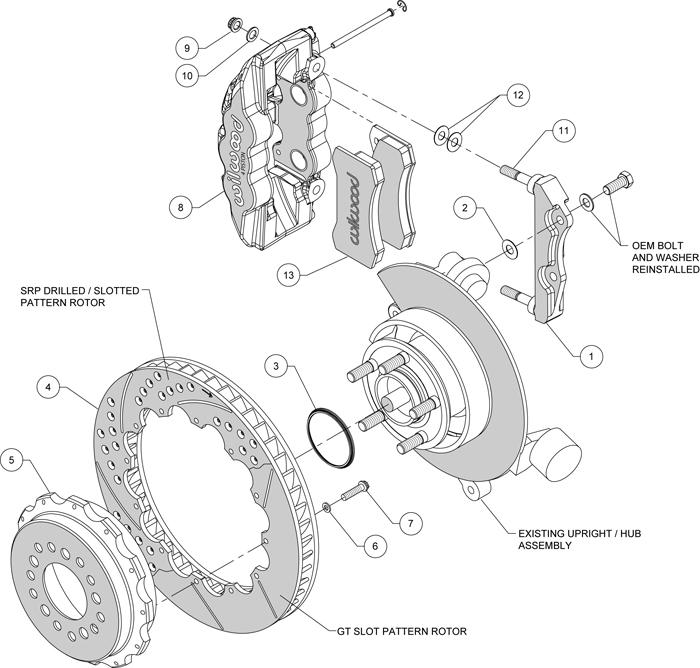

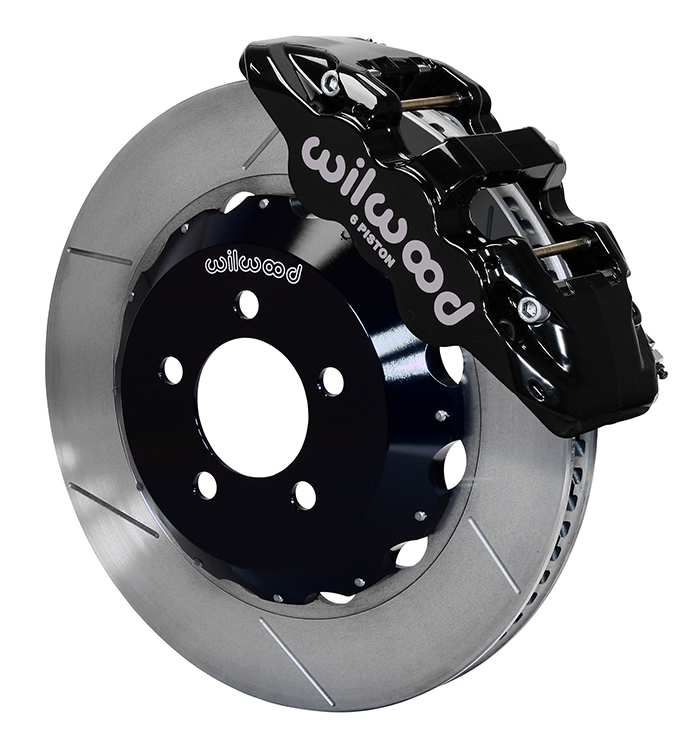

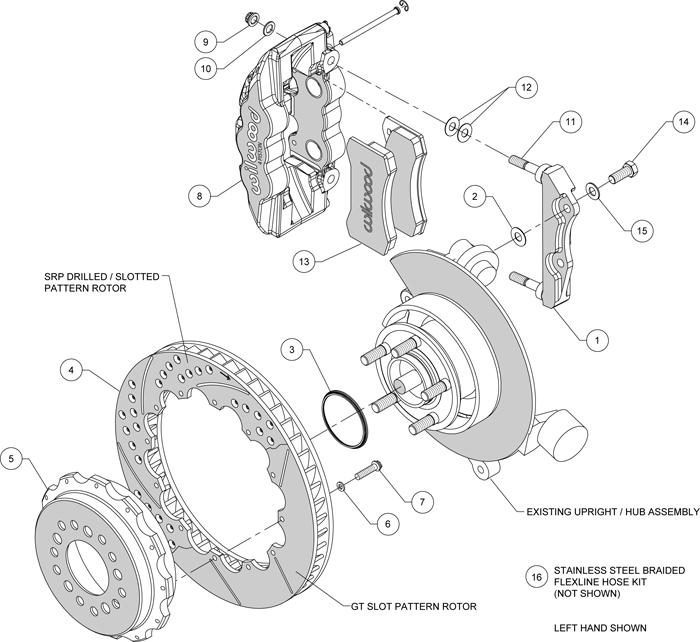

The Wilwood 14.25" Front Kit- $Call
Wilwood Aero6 radial mount calipers (6 piston)
Choice of BLACK or RED powder coat finish
BP10 street pads
Wilwood radial mount brackets
14 x 1.25" directional cast GT rotors
Gas slotted finish
Aluminum brake hats
Stainless steel hose kit
All required hardware
Optional cross drilled rotor finish- ADD $150
Application: The TCE/Wilwood and Wilwood factoryfront kits replaces the entire front brake system with their two piece rotors, massive Aero6 calipers and stunning big brake looks. This is the front 'half' of the 4X Kit from the table above. For complete details plese click the various links in that table.
Fit: Stock and 18" and larger wheels.
Notes: Does not fit SRT. This is ONE HALF of the 4X kit above.

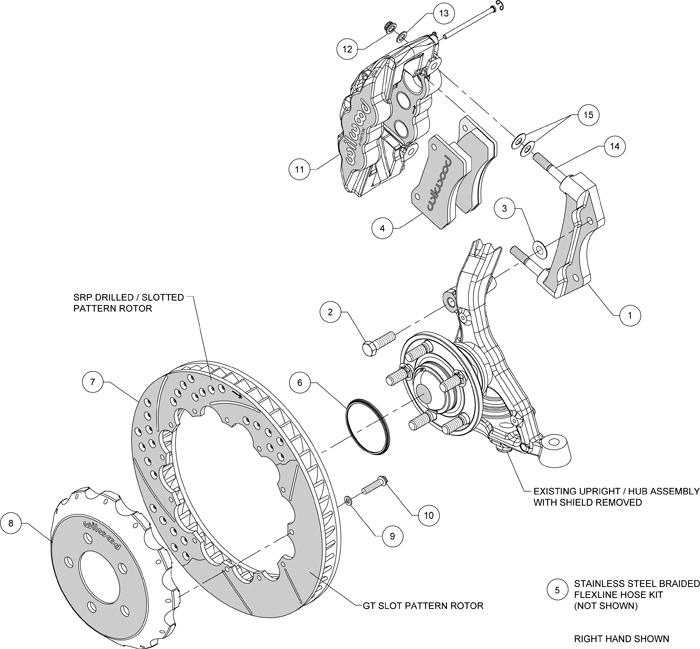

The TCE/Wilwood 14.25" AWD Front Kit- $2223
Wilwood Areo6 radial mount calipers (6 piston)
Choice of BLACK or RED powder coat finish
BP10 street pads
TCE radial mount brackets
14 x 1.25" directional cast GT rotors
Gas slotted finish
Aluminum brake hats
Stainless steel hose kit
All required hardware
Optional cross drilled rotor finish- ADD $150
Application: The TCE/Wilwood and Wilwood factoryfront kits replaces the entire front brake system with their two piece rotors, massive Aerolite6 calipers and stunning big brake looks. This is the front 'half' of the 4X Kit from the table above. For complete details plese click the various links in that table. The AWD kit is specific to the needs of the AWD car due to the use of different front spindles. The calipers are front mounted to TCE brackets, an alternate aluminum hat is used and different ss hoses supplied.
Fit: Stock and 18" and larger wheels.
Notes: Fits AWD thru 2014.Does not fit SRT.

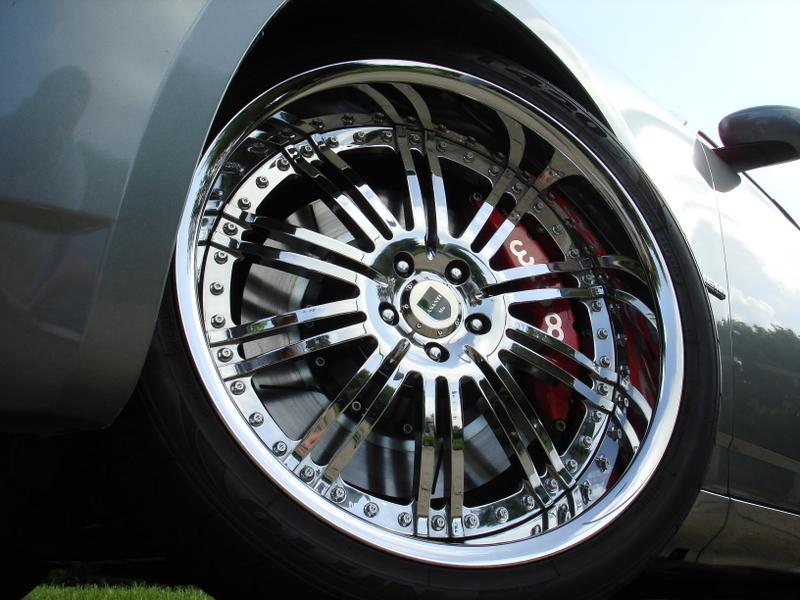

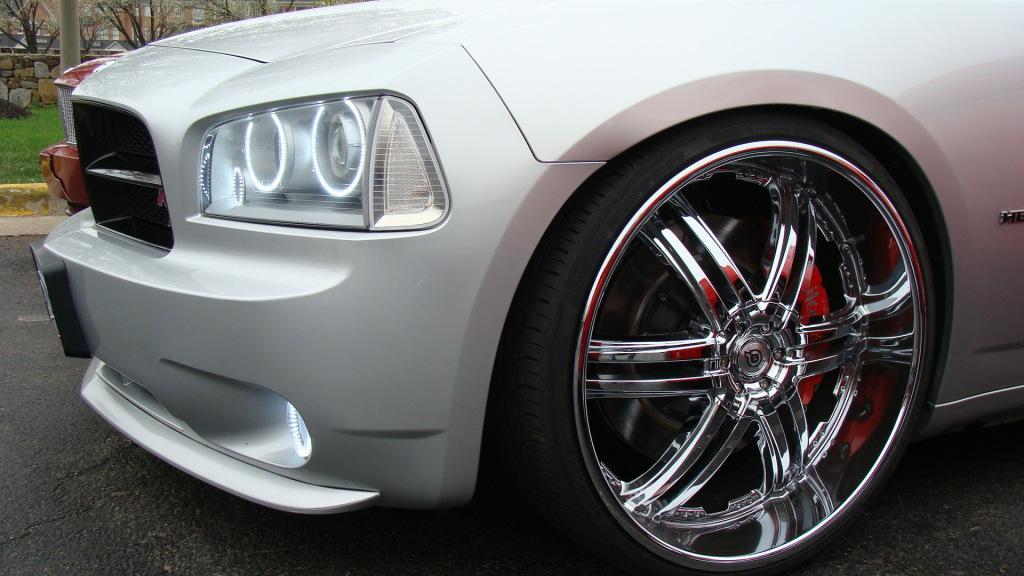

The TCE/Wilwood 16" Front Kit- $2689
Wilwood TC6r radial mount calipers (6 piston)
Choice of BLACK or RED powder coat finish
BP10 street pads
TCE radial mount brackets
16 x 1.375" directional cast GT rotors
Gas slotted finish
Aluminum brake hats
Stainless steel hose kit
All required hardware
Optional cross drilled rotor finish- ADD $150
Application: TCE limited production 16" Front Monster Kit. Taking it to the limit TCE combines huge 16" rotors with Wilwood's proven six piston truck calipers for stunning looks and unsurpassed brake performance.
Fit: Stock and 20" and larger wheels.
Notes: Available for both RT and SRT
SINGLE KITS, Rear 2006+

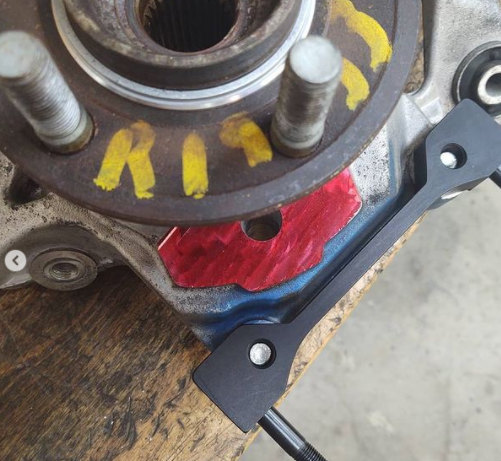

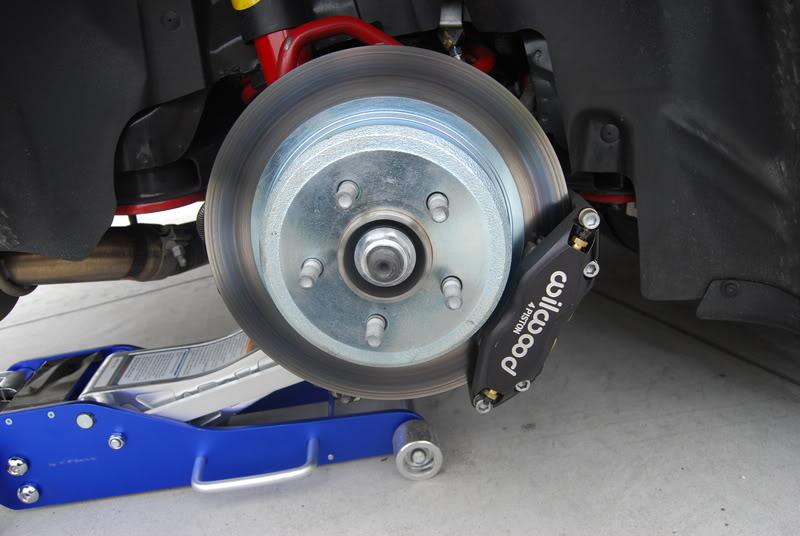

The TCE Rear Drag Kit

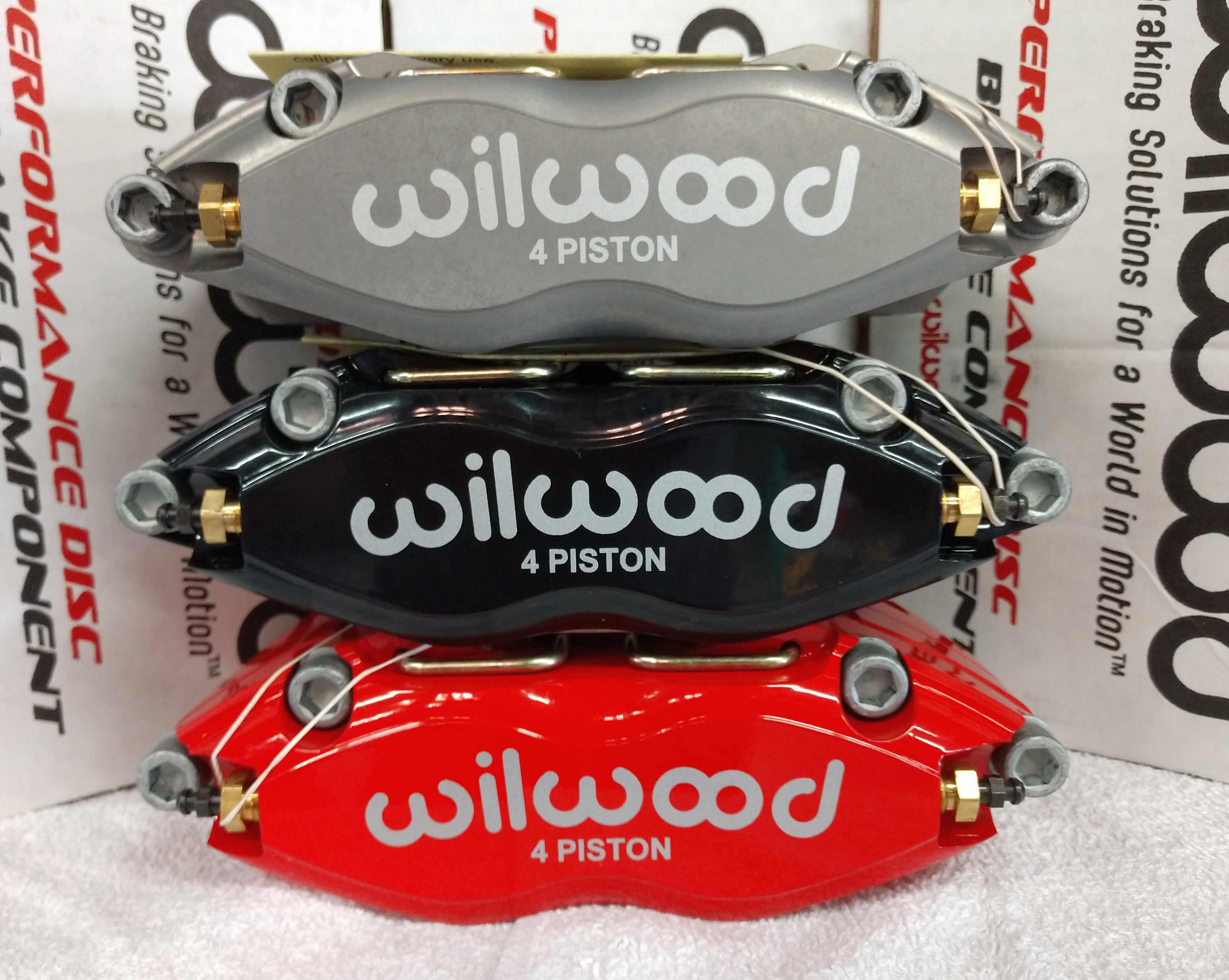

Wilwood DP four pot caliper (4 piston)
Type III Grey Anodized
BP10 street pads
TCE Radial mount brackets *Specify RT or SRT
Custom 12.25" rotor
Plain finish (no slots or holes)
Retains stock parking brake
Stainless steel hose kit
All required hardware
Optional BLACK or RED powder coat finish
Optional scalloped rotor- ADD $150
Optional 2pc hats/rotors
All options include ground UPS shipping. *Cont. US
Rear Rotor Kit Only
Application: For the Drag Racing enthusiast this rear kit offers low profile and low clearances needed to fit 15" Drag wheels and slicks! Incorporating an iron hat our rear rotors retain the factory parking brake making it safe for both street and track use.
Fit: All factory wheels and many 15" Drag Wheels. Minimum wheel barrel diameter: 13.7"
Notes: Drag wheels known to have other clearance issue with regard to suspension components so please consult your supplier. Wheels from Bogart and Weld fit our brake kit. RT application requires some cleancing of the stock radius arm washer and nut. Specify RT or SRT. Hellcat: SRT

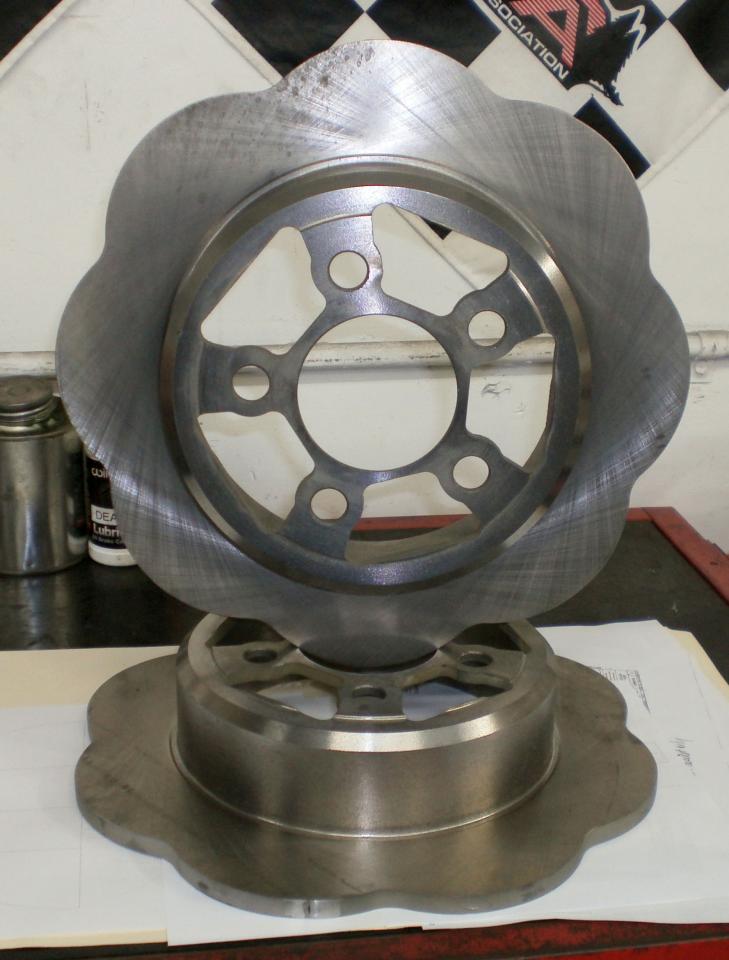

*Scalloped rotors for track use only, not safe for street and may allow debris into the parking brake area. Allow 2wks build time.

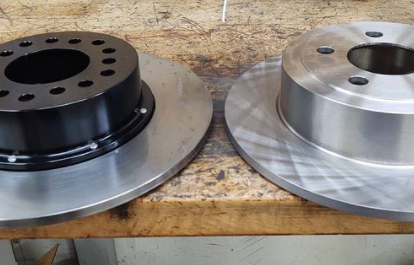

*New for 2021: TCE 2pc hats and rotors! Further weight savings and durability these 2pc parts replace your stock rotor directly and totally eliminate the parking brake parts for yet more weight reduction. Fully assembled and ready to bolt on.
Specs: Pair 19lbs vs 28 stock plus loss of shoes and hardware. NON p-brake only! Stock track and rotor width retained.
The Aero4 Rear Caliper Kit
Wilwood Aero4 radial mount calipers (4 piston)
Choice of BLACK or RED powder coat finish
TCE spec billet aluminum radial mount brackets
BP10 street pads
Stainless steel hose kit
All required hardware
ROTORS NOT INCLUDED
Free Shipping*
Application: New for 2016 this kit fits the same Aero body caliper like our front kit with the larger factory Brembo 13.8" rear discs. Like our popular Aero6 front kit this is a complete bolt on for all RT knuckles and produces a 'hybrid' brake kit of sorts. TCE supplies the calipers, you supply the rotors.
Fit: All stock and 18" and larger wheels. Requires use of any stock SRT8 rear "Brembo" style rotor.
Notes: Rotors not included.
Application: RT ONLY

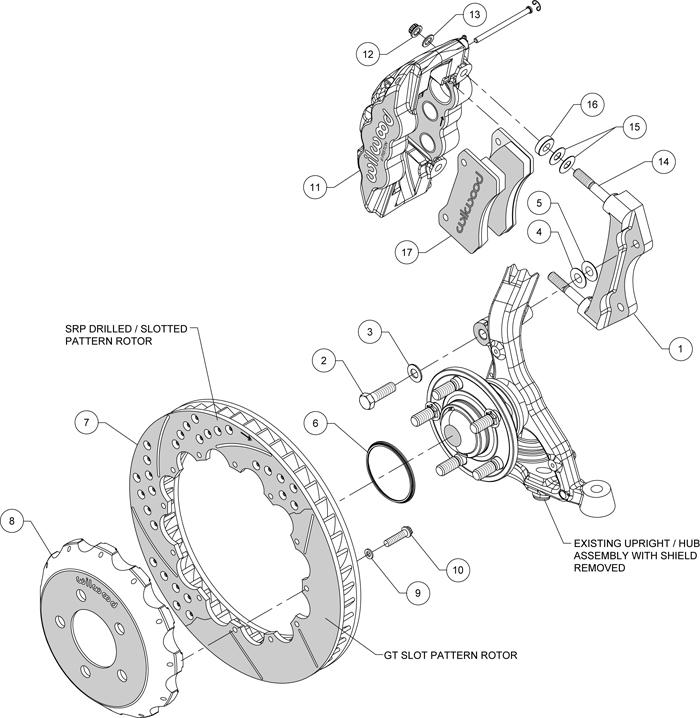

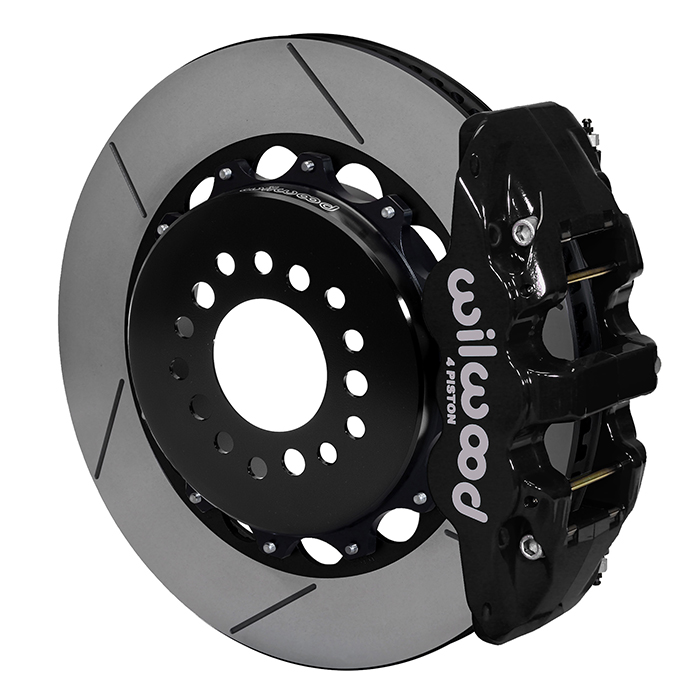

The Wilwood 14.25" Rear Kit- $Call
Wilwood Aero4 radial mount calipers (4 piston)
Choice of BLACK or RED powder coat finish
BP10 street pads
Wilwood radial mount brackets
14 x 1.25" directional cast GT rotors
Gas slotted finish
Iron parking brake hats
Stainless steel hose kit
All required hardware
Optional cross drilled rotor finish- ADD $150
Application: Wilwood factoryrear kits replaces the entire rear brake system with two piece rotors, massive Aero4 calipers and stunning big brake looks. This is the rear 'half' of the 4X Kit from the table above. For complete details plese click the various links in that table.
Fit: Stock and 18" and larger wheels. Retains factory parking brake.
Notes: Does not fit SRT. This is ONE HALF the 4X kit above.
