FRONT KITS 1997-2002
|
|
TCE/Wilwood 14.25" Aero6 Front

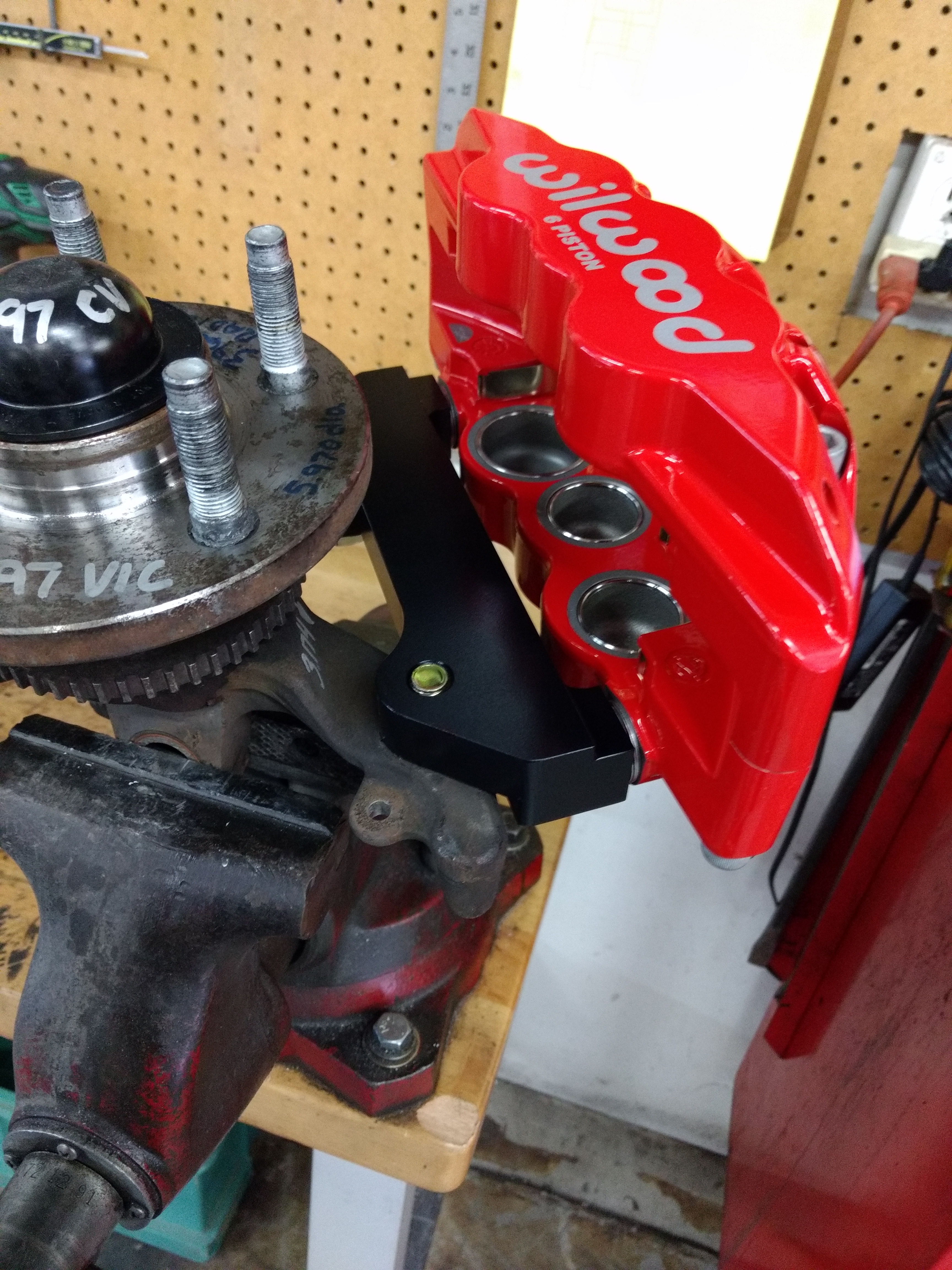

- Wilwood Aero6 radial mount calipers (6 piston)
- Choice of BLACK or RED powder coat finish
- BP10 street pads

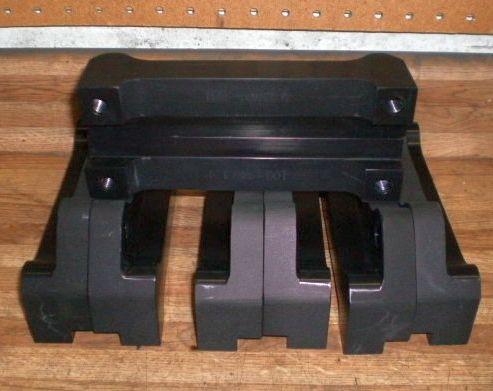

- Wilwood radial mount brackets
- 14 x 1.25" directional cast GT rotors
- Gas slotted finish
- Aluminum rotor hats
- All required hardware
- Optional cross drilled rotor finish
- Hose kt NOT included due to varying applications
|
APPLICATION: Designed for maximum performance and 18" wheels this kit is a simple radial mount bolt on. Street and track proven products packaged to meet the demands of custom builders. Based on a 1.25" wide rotor and full body size calipers the 14.25" kit is the ground floor for those truck builders using 18" or larger wheels. We suggest the move to 15" rotors for those running 20s but yes it comes at a premium price.
FIT: Requires 18" or larger wheels.
NOTES: Please see the wheel fit page for required spoke clearance on all of these kits.
|
|
|

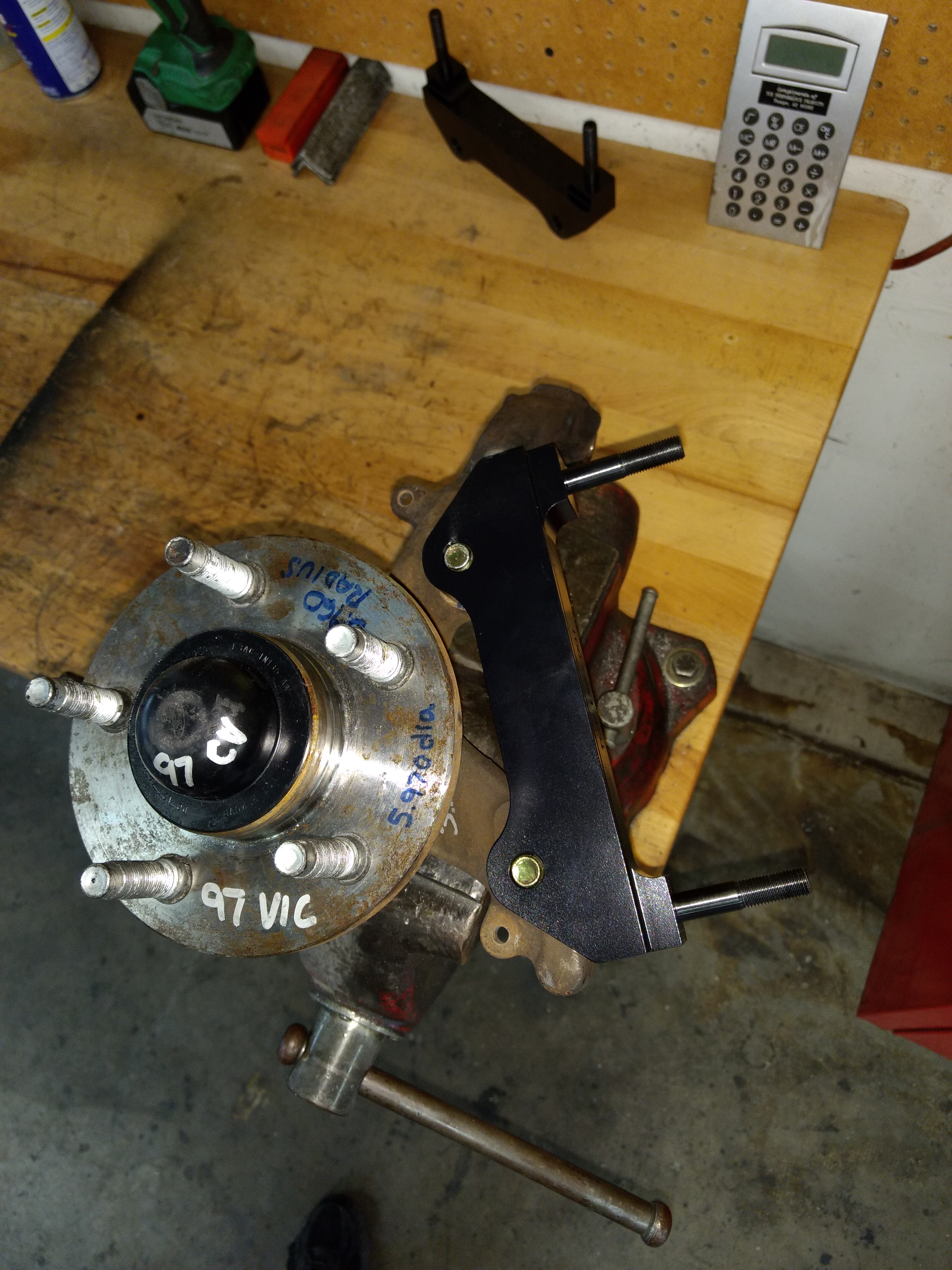

TCE/Wilwood 15" Aero6 Front
- Wilwood Aero6 radial mount calipers (6 piston)
- Choice of BLACK or RED powder coat finish
- BP10 street pads
- TCE radial mount brackets
- 15 x 1.25" directional cast GT rotors
- Gas slotted finish
- Aluminum rotor hats
- All required hardware
- Optional cross drilled rotor finish
- Hose kit NOT included due to varying applications
|
APPLICATION: A larger version of the above kit, this monster takes it to a full 15" front rotor.
FIT: Requires 19" or larger wheels.
NOTES: Please see the wheel fit page for required spoke clearance on all of these kits.
|
|
|
FRONT KITS 2003-End
|
|

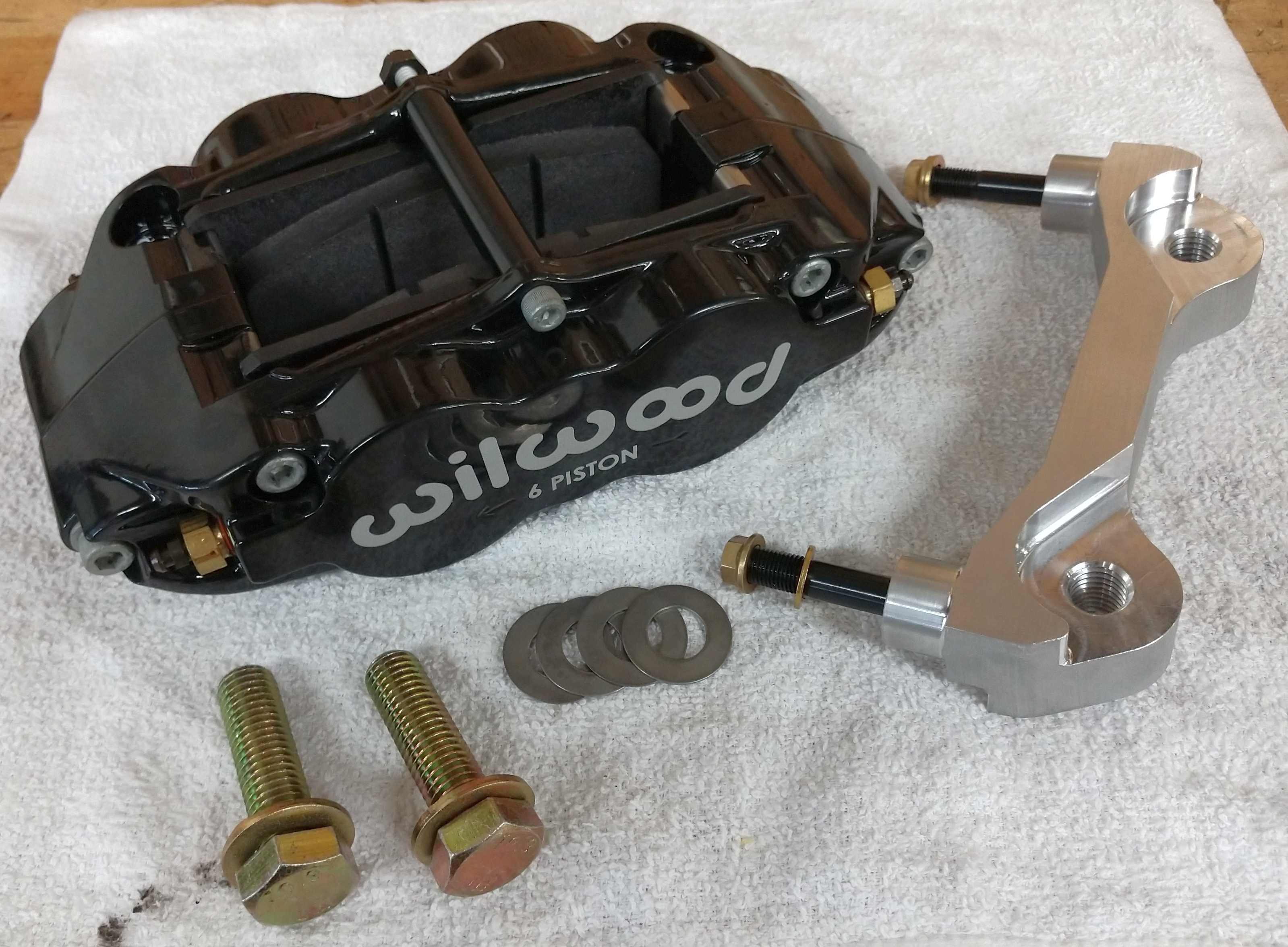

TCE/Wilwood Front Caliper Kit
- Wilwood FNSL6 radial mount calipers (6 piston)
- Choice of BLACK or RED powder coat finish
- BP10 street pads
- Radial mount brackets
- All required hardware
- Hose kt NOT included due to varying applications.
|

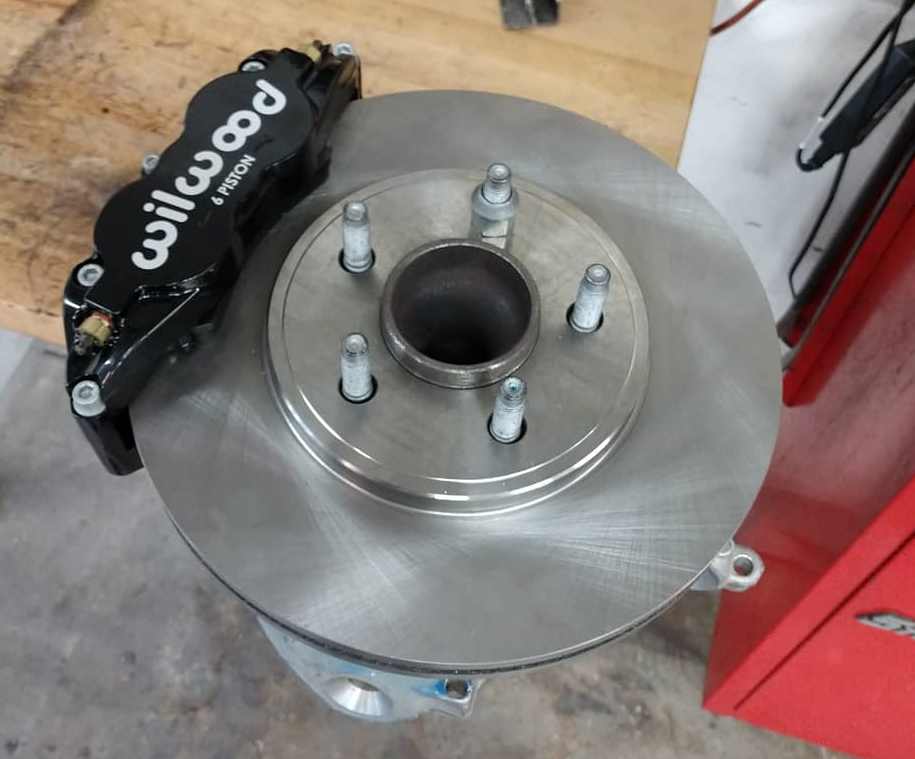

APPLICATION: Designed for use on the stock 12" oe or aftermarket stock size rotor only. Replaces stock two piston sliding caliper offering more linear braking, superior feel and responsiveness as well a big brake appearance at a lower cost.
FIT: Requires 17" or larger wheels.

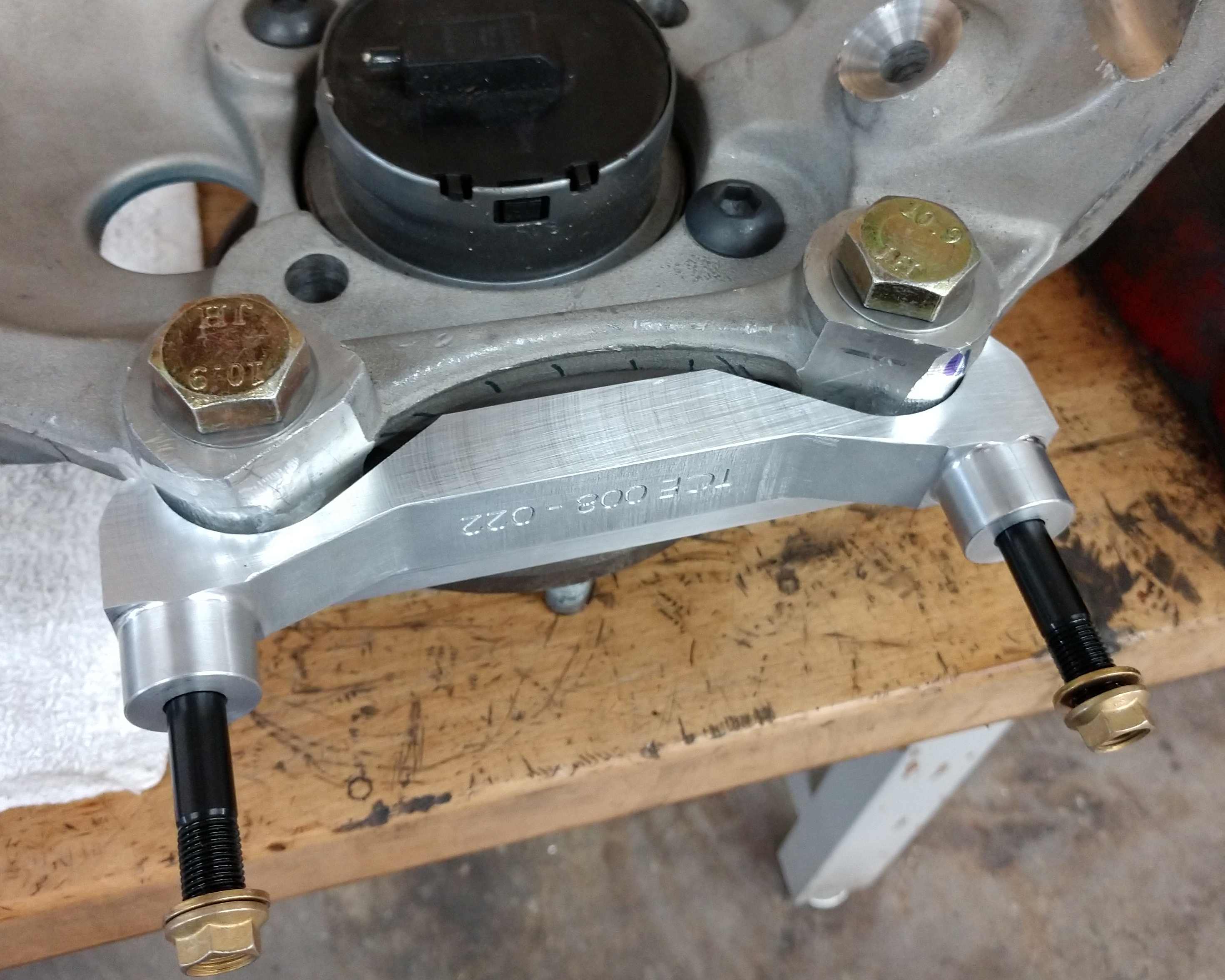

NOTES: Please see the wheel fit page for required spoke clearance on all of these kits. Will require grinding of the stock aluminum knuckle for bracket clearance. No way around it...see imagebelow.
|
|
|
Wilwood Factory 14" FNSL6 Front
- Wilwood FNSL6 radial mount calipers (6 piston)
- Choice of BLACK or RED powder coat finish
- BP10 street pads
- Radial mount brackets
- 14 x 1.25" directional cast GT rotors
- Gas slotted finish
- Aluminum rotor hats
- All required hardware
- Optional cross drilled rotor finish
- Hose kt NOT included due to varying applications.
|
APPLICATION: Designed for wheel clearance the FNSL6 offers more spoke clearance than the Aero6 kit below. The same full 14 x 1.25" rotor for thermal mass but a smaller caliepr body.
FIT: Requires 18" or larger wheels.
NOTES: Please see the wheel fit page for required spoke clearance on all of these kits.
|
|
|
Wilwood Factory 14" Aero6 Front
- Wilwood Aero6 radial mount calipers (6 piston)
- Choice of BLACK or RED powder coat finish
- BP10 street pads
- Wilwood radial mount brackets
- 14 x 1.25" directional cast GT rotors
- Gas slotted finish
- Aluminum rotor hats
- All required hardware
- Optional cross drilled rotor finish
- Hose kt NOT included due to varying applications.
|
APPLICATION: Designed for maximum performance and 18" wheels this kit is a simple radial mount bolt on. Street and track proven products packaged to meet the demands of custom builders. Keeping the same 14" rotor from the Plus 2 but moving to the larger body Aerolite caliper line.
FIT: Requires 18" or larger wheels.
NOTES: Please see the wheel fit page for required spoke clearance on all of these kits.
|
|
|

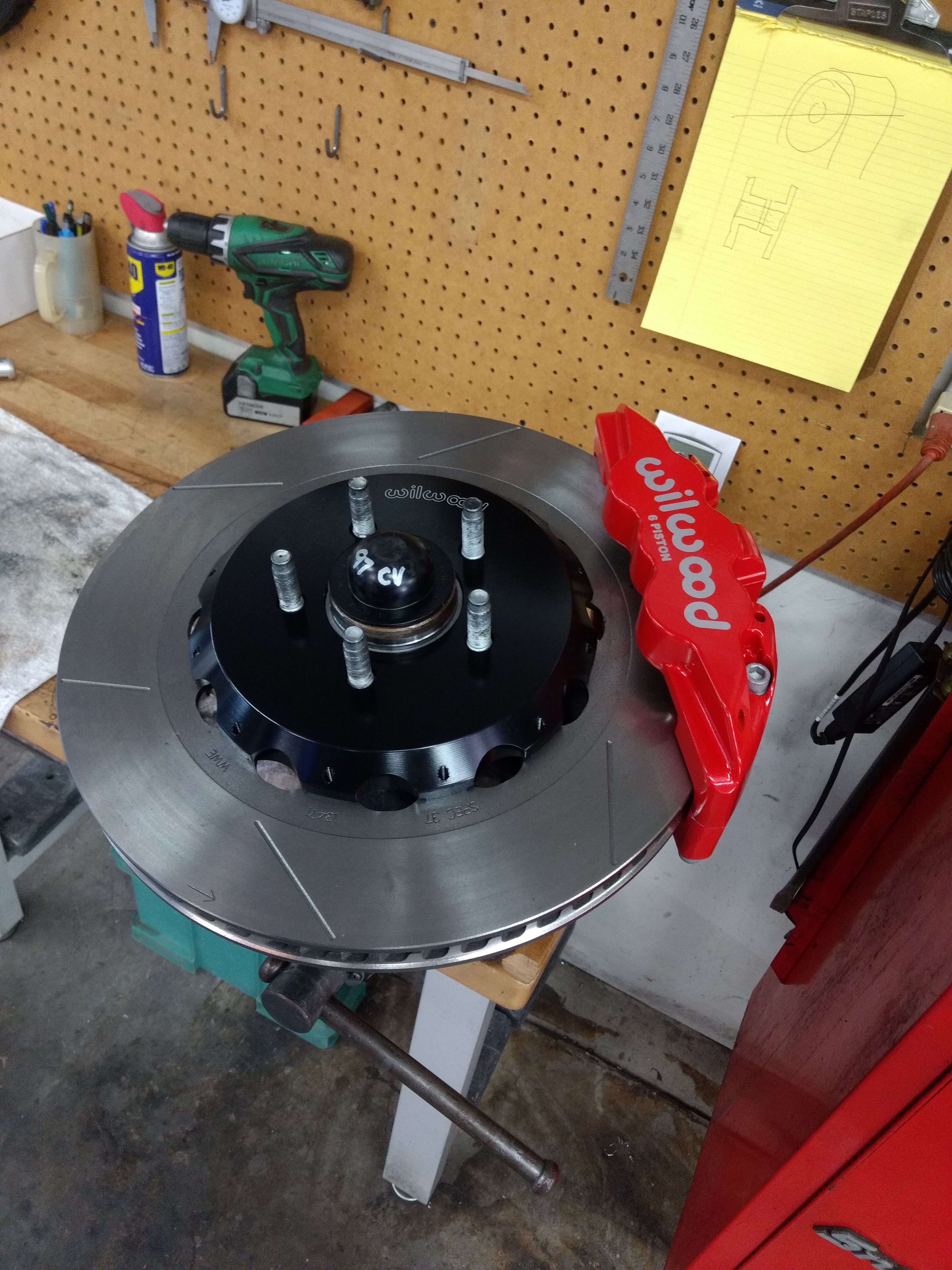

TCE/Wilwood 15" Aero6 Front
- Wilwood Aero6 radial mount calipers (6 piston)
- Choice of BLACK or RED powder coat finish
- BP10 street pads
- TCE radial mount brackets
- 15 x 1.25" directional cast GT rotors
- Gas slotted finish
- Aluminum rotor hats
- All required hardware
- Optional cross drilled rotor finish
- Hose kit NOT included due to varying applications
|
APPLICATION: A larger version of the above kit, this monster takes it to a full 15" front rotor.
FIT: Requires 19" or larger wheels.
NOTES: Please see the wheel fit page for required spoke clearance on all of these kits.
|
|
|

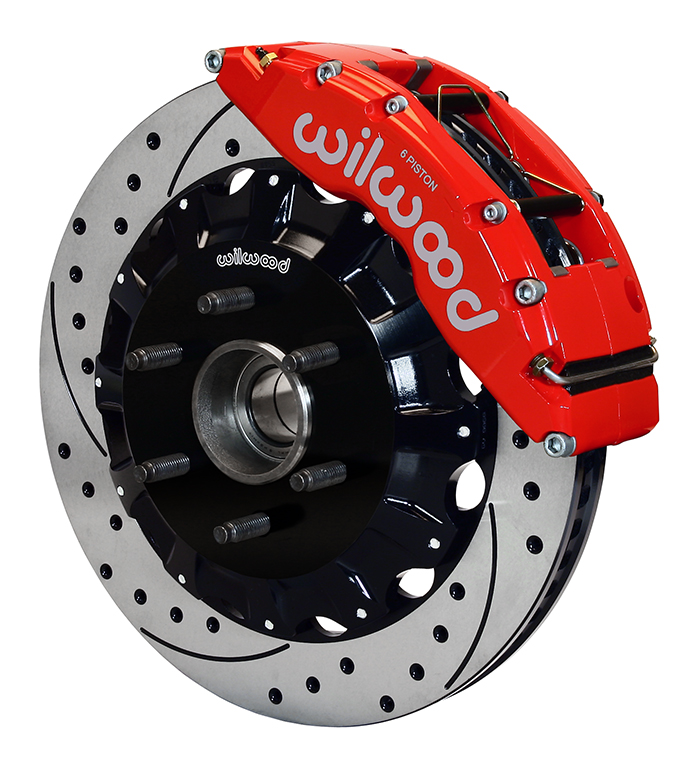

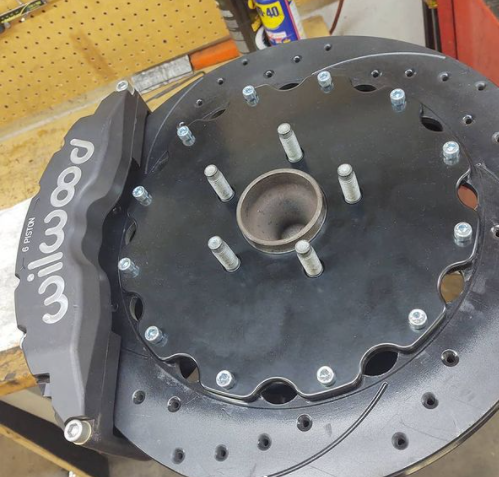

TCE/Wilwood 16" TC6R Front
NOT AVAILABLE UNTIL LATE AUGUST
- Wilwood TC6R radial mount calipers (6 piston)
- Choice of BLACK or RED powder coat finish
- BP10 street pads
- TCE radial mount brackets
- 16 X 1.375" directional cast GT rotors
- Gas slotted finish
- Aluminum rotor plate
- All required hardware
- Optional cross drilled rotor finish
- Hose kit NOT included due to varying applications
|
APPLICATION: The largest front kit available for the Panther platform. Based on similar kits usd on our truck and Caprice kits this one's huge!
FIT: Requires 20" or larger wheels.
NOTES: Very aggressive fitment due to the use of a rotor plate and zero hat offset. Please see the wheel fit page for required spoke clearance on all of these kits.
|
|
