TCE Performance Products


 Chevrolet Corvette C5

To see the complete line of Wilwood kits click HERE

Below are the most popular kits for the C5




TCE has combined the popular Aero6 front Caliper Kit with the matching FNSL Rear Caliper Kit. These kits are engineered for factory 13.4 and 14.0" front rotors plus factory 13.0 and 13.4" rear rotors. For those not wishing to spend hundreds of dollars on 2pc hats and rotors these kits make for a very compelling purchase! TCE offers these kit in single axle or our exclusive "4X Kit" format servicing both axles. For the more demanding driver all kits are availabe with Wilwood's ThermLock Piston Technology for a minimal up charge. All kits include our own dedicated SS braided hose kits with no chassis adapters necessary. Optional 13.4" Z06 rear kits are sold with a longer stud and spacer kit- customer to remove and replace the studs supplied by Wilwood.

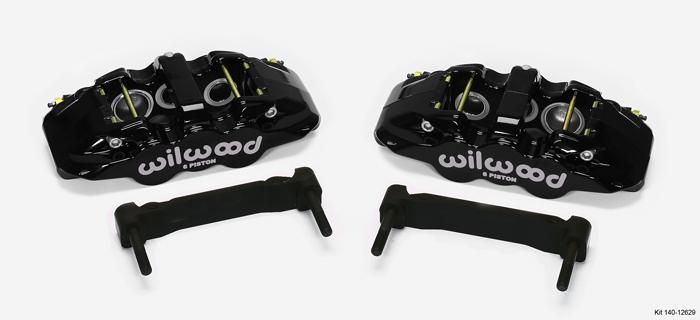

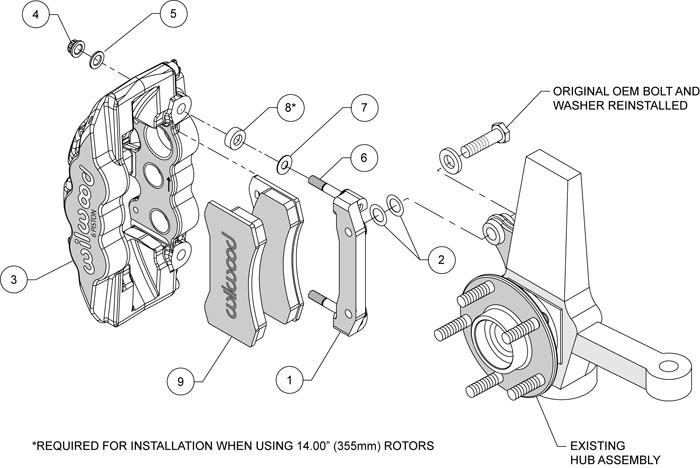

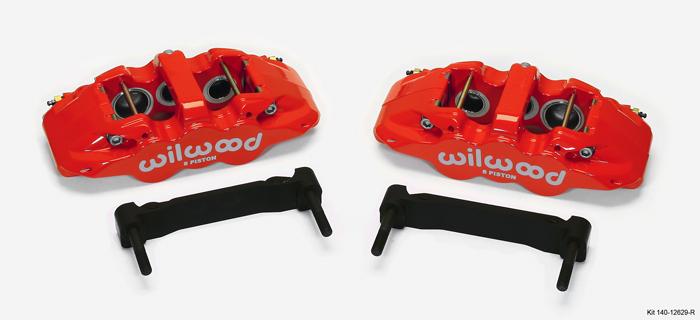

Wilwood Aero6

Front Caliper Kit

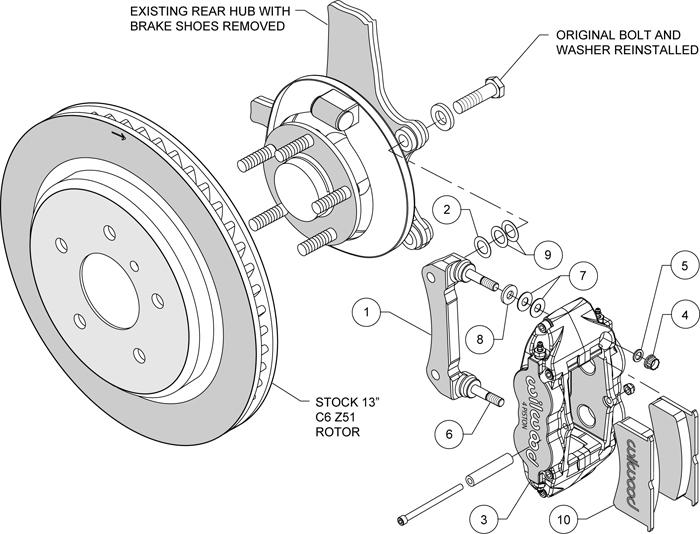

TCE/Wilwood FNSL4

Rear Caliper Kit

Combo Aero6/FNSL4  4X

With Parking Brake

Front Kit w/Hoses Rear Kit w/Hoses Front and Rear Kit Combo w/Hoses
Click FRONT or REAR for full details Click FRONT or REAR for full details Click FRONT or REAR for full details
FRONT REAR FRONT REAR











Help me install it Help me install it Help me install it Help me install it
Show me! Show me! Show me! Show me!
141-12629.H 141.14026.H 141.12629.14026.HH
Select options (C5)

Select options (C5)
Select options (C5)






More options: Complete Front and Rear 4X Big Brake Kits

These 14 and 15" front and rear kits feature the Aerolite line of calipers with larger bodies and brake pads providing greater stiffness and pad life for the demands of the track user. Requires 18 and 19" wheels (for the 15" kit) these kits while very streetable enhance all day track use with far greater rotor mass. For the more demanding driver all kits are availabe with Wilwood's ThermLock Piston Technology for a minimal up charge- please call. All kits include our own dedicated SS braided hose kits with no chassis adapters necessary.

Wilwood 14/14

Aero6/Aero4  4X Kit

Wilwood 15/14

Aero6/Aero4  4X Kit

Front & Rear Kit Combo '97-'04 w/Hoses Front & Rear Kit Combo '97-'04 w/Hoses
For full kit descriptions click FRONT or REAR below For full kit descriptions click FRONT or REAR below
FRONT REAR FRONT REAR
Help me install it Help me instll it Help me install it Help me instll it
Show me! Show me! Show me! Show me!
Kit No. 141-15705.11119 Kit No. 141-13903.11119
Select options (C5)
Select options (C5)





For dedicated track day users these Aerolite caliper shod kits come prefit with Thermlock pistons and optional Nickel finish for improved thermal benefits as well as the 6620 (20mm) brake pads for longer life. Also available by special order: a four piston version of these kits for sanctioning bodies limiting piston quantity in their rule books- call for details.. ThermLock Piston Technology



Wilwood 14/13

Aero6/FNSL4  RACE 4X Kit

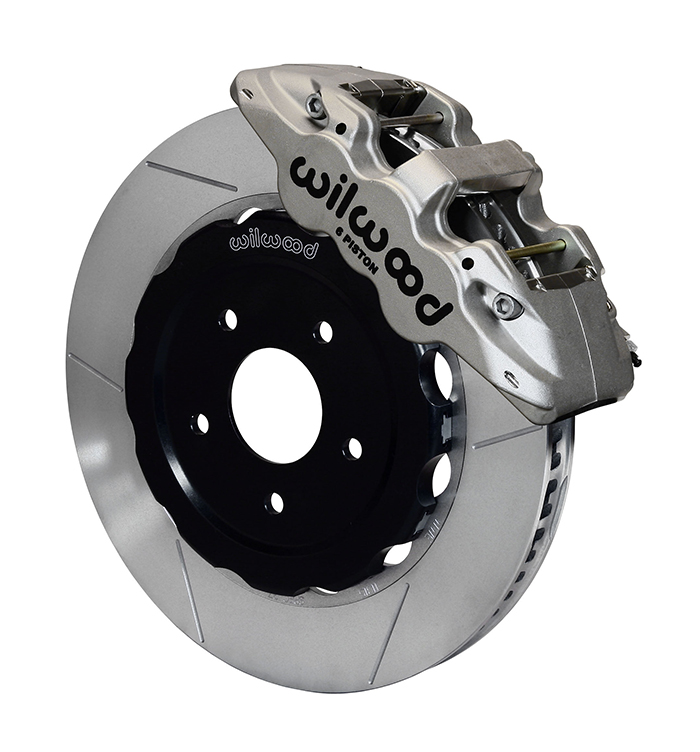

Wilwood 14 Aero6 Front

Budget Kit

Front & Rear Kit Combo '97-'04 w/Hoses Front Kit '97-'04 w/Hoses
For full kit descriptions click FRONT or REAR below For full kit descriptions click FRONT or REAR below
FRONT REAR FRONT REAR

N/A

Type III anodized body, 20mm pads, full floating tee nut hat/rotor, Thermlock pistons, BP30 pads.



NOTE: Maximum wheel pad diameter 6.00" due to hat shape.



Type III anodized body, aluminum hats, Thermlock pistons, BP30 pads.



Non parking brake kit.

Type III anodized body, 20mm pads, snap ring floating rotors, SS pistons, BP30 pads. All wheel pad fitment.



Reported to fit 18 x 10.5" C5Z rear wheels when being used on the front of the car.

Help me install it Help me install it Help me install it
Show me! Show me! Show me!
Kit No. 141-13743.10638 Kit No. 141-14557-H
Select options (C5)
Select options (C5)



THE FINE PRINT:

FITMENT:  It is up to the consumer to verify proper vehicle and wheel fit. Wheel clearance requirements can be found on the WHEEL FIT page in the TOOLBOX above. If you are unsure of the fit or application please call or email prior to ordering. TCE makes no guarantee of wheel clearance.

TERMS AND CONDITIONS: All sales subject to 20% restocking fee. Return shipping is on you. No credit will be given for installed, mishandled or damaged goods.

SHIPPING: Shipping charges will be applied in the Shopping Cart prior to check out. Prices are based on an average delivery zone. Additional shipping charges may apply to AK, CA and HI. Call before you order for details.
