Chevrolet Corvette
TCE offers the full line of Wilwood factory kits for your Corvette!
For C6/Z06 Owners:

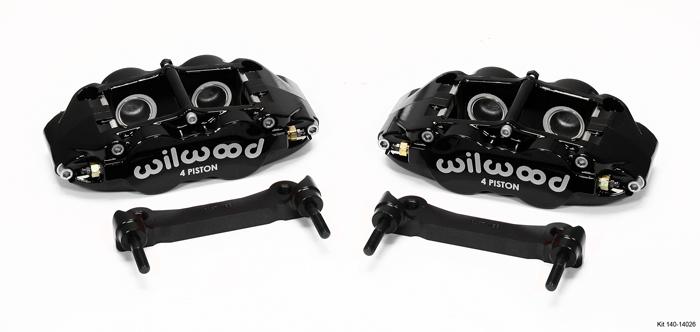

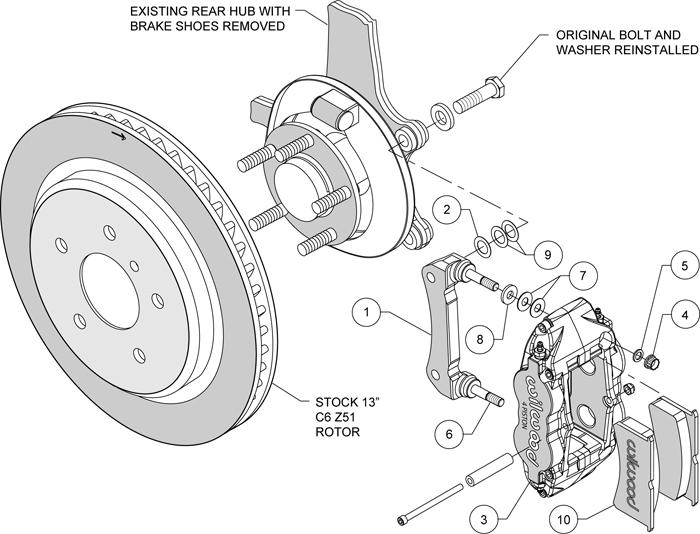

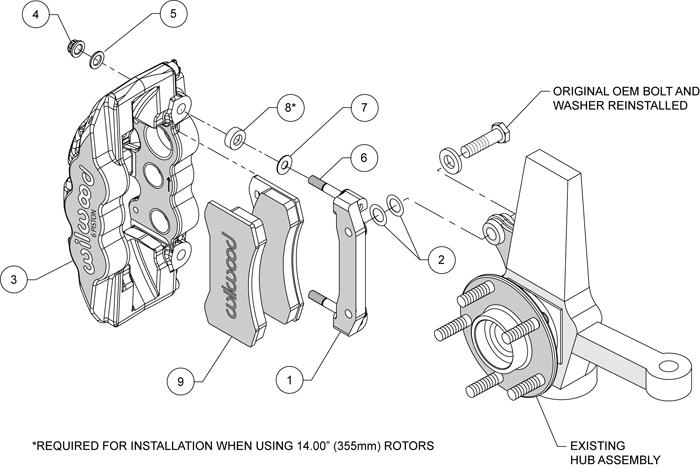

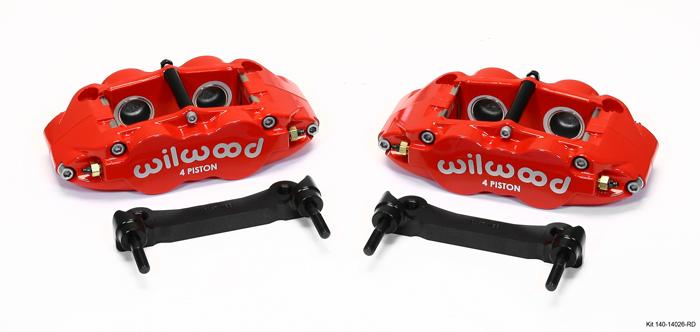

C5 and C6 Direct Fit Caliper Kits!
Replace those old, non responsive sliding calipers with these direct oe replacement four pots! Wilwood's four piston front and four piston rear calipers are a simple and effective bolt on for all C5 and C6 Corvettes. Add the responsiveness, feel and function of four piston calipers to your car in a matter of hours! Fits stock 12.8 and 12.0 rotors only. Don't be put off by the higher cost of complete big brake kits...this package is a simple and effective enhancement to both appearance and performance. So easy! Sold in 4X form with SS hose kit for the complete install.
*Available with Wilwood SRP (Drilled/Slotted- ONLY) oe spec replacement rotors- please call.
*Requires the use of Z06 or similar "brake friendly wheels"- see wheel fit infomation in Help Me Install It link
Want more? TCE/Wilwood Front, Rear and 4X Caliper Kits!

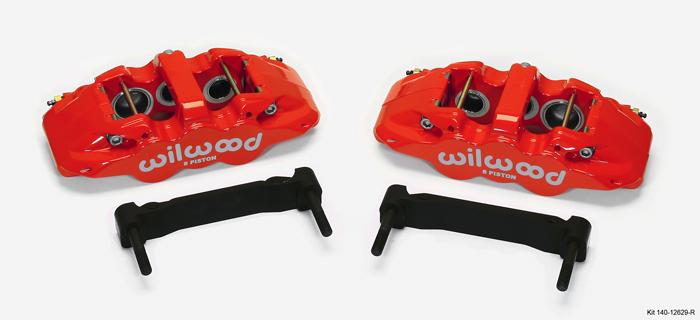

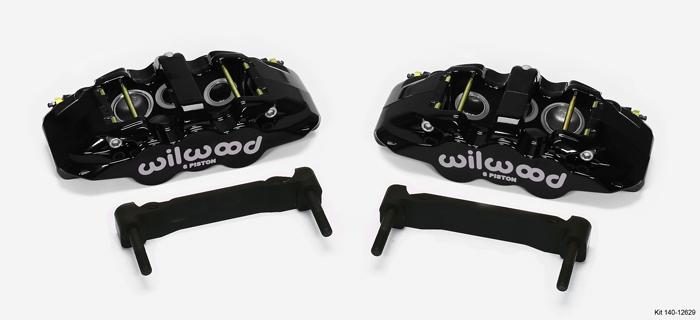

TCE has combined the popular Aero6 front Caliper Kit with our matching FNSL Rear Caliper Kit. These kits are engineered for factory 13.4 and 14.0" front rotors plus factory 13.0 and 13.4" rear rotors. For those not wishing to spend hundreds of dollars on 2pc hats and rotors these kits make for a very compelling purchase! TCE offers these kit in single axle or our exclusive "4X Kit" format servicing both axles. For the more demanding driver all kits are availabe with Wilwood's ThermLock Piston Technology for a minimal up charge. All kits include our own dedicated SS braided hose kits with no chassis adapters necessary. Customers wishing to use the 13.4" Z06 rear rotor must call to place their order so we can effect the necessary changes. The added cost of this change is $100.
More options: Complete Front and Rear 4X Big Brake Kits

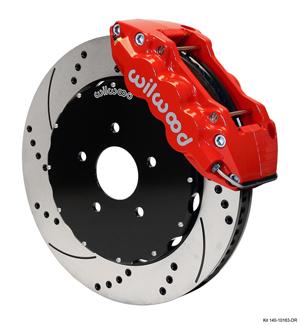

These 13 and 14" front and rear kits feature the Forged Narrow Superlite line of calipers offering a good balance of street creed and low profile for optimum wheel fit. Ideal for buyers of street, autocross and light track day use where weight savings trump overall mass. For the more demanding driver all kits are availabe with Wilwood's ThermLock Piston Technology for a minimal up charge- please call. All kits include our own dedicated SS braided hose kits with no chassis adapters necessary.

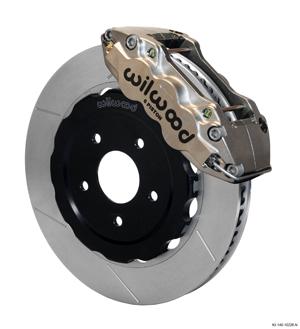

These 14 and 15" front and rear kits feature the Aerolite line of calipers with larger bodies and brake pads providing greater stiffness and pad life for the demands of the track user. Requires 18 and 19" wheels (for the 15" kit) these kits while very streetable enhance all day track use with far greater rotor mass. For the more demanding driver all kits are availabe with Wilwood's ThermLock Piston Technology for a minimal up charge- please call. All kits include our own dedicated SS braided hose kits with no chassis adapters necessary.
For dedicated track day users these Aerolite caliper shod kits come prefit with Thermlock pistons and optional Nickel finish for improved thermal benefits as well as the 6620 (20mm) brake pads for longer life. Also available by special order: a four piston version of these kits for sanctioning bodies limiting piston quantity in their rule books- call for details. ThermLock Piston Technology
|
Wilwood 14/13
Aero6/FNSL4 RACE 4X Kit
|

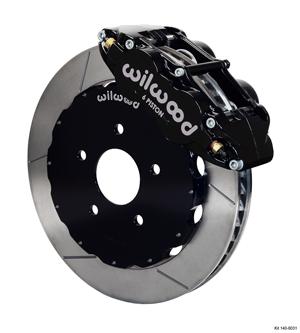

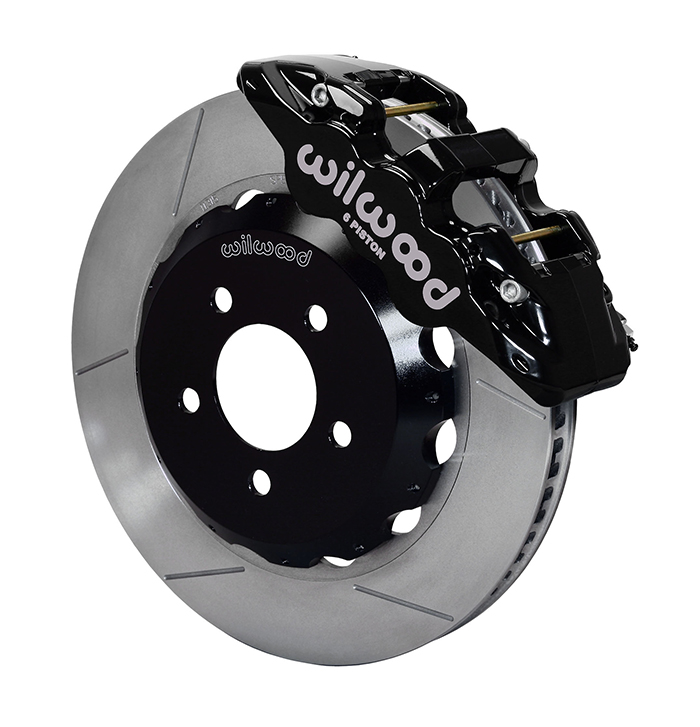

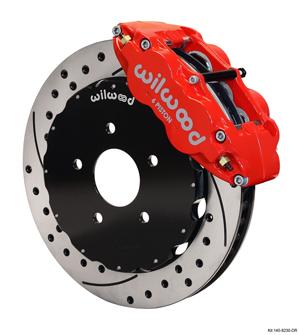

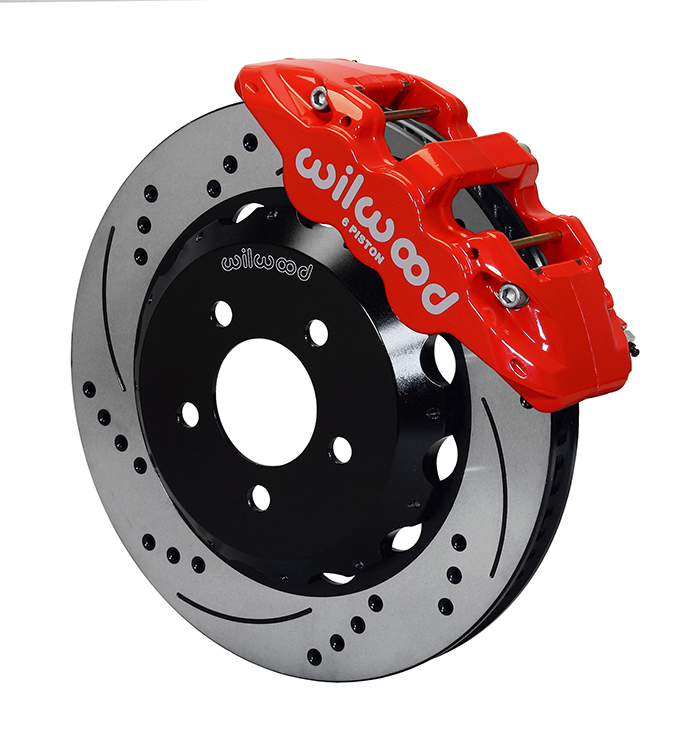

Wilwood 14 Aero6 Front
Budget Race Kit
|
| Front & Rear Kit Combo '05-'13 w/Hoses |
Front '05-'13 w/Hoses |
| For full kit descriptions click FRONT or REAR below |
For full kit descriptions click FRONT or REAR below |
| FRONT |
REAR |
FRONT |
REAR |
 |
 |
|
N/A |
|
Type III anodized body, 20mm pads, full floating hat/rotor, Thermlock pistons, BP30 pads.
NOTE: Maximum wheel pad diameter 6.00" due to hat shape.
|
Type III anodized body, aluminum hats, Thermlock pistons, BP30 pads.
Non parking brake kit.
|
Type III anodized body, 20mm pads, fixed mount rotors, ss pistons, BP30 pads. All wheel pad fitment.
|
| Help me install it |
Help me install it |
Help me install it |
|
| Show me! |
Show me! |
Show me! |
|
| FREE SHIPPING* |
FREE SHIPPING* |

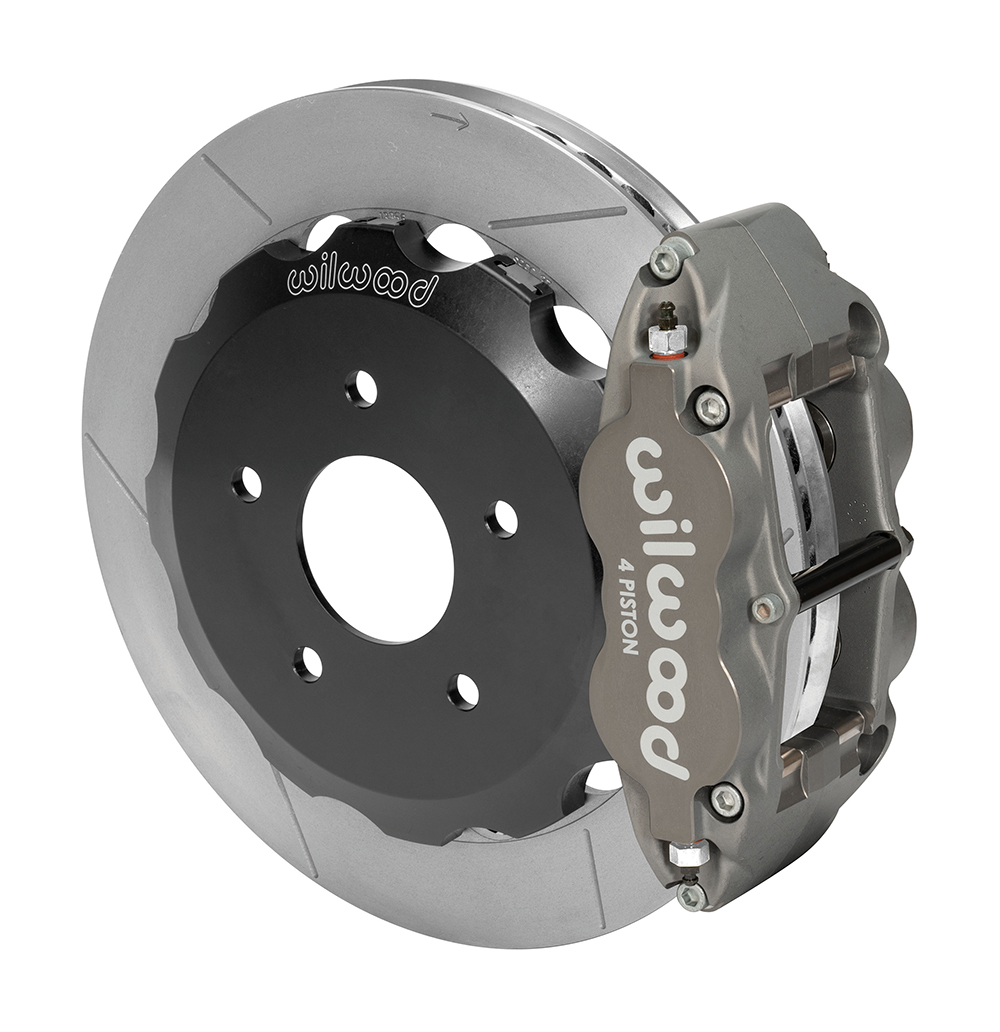

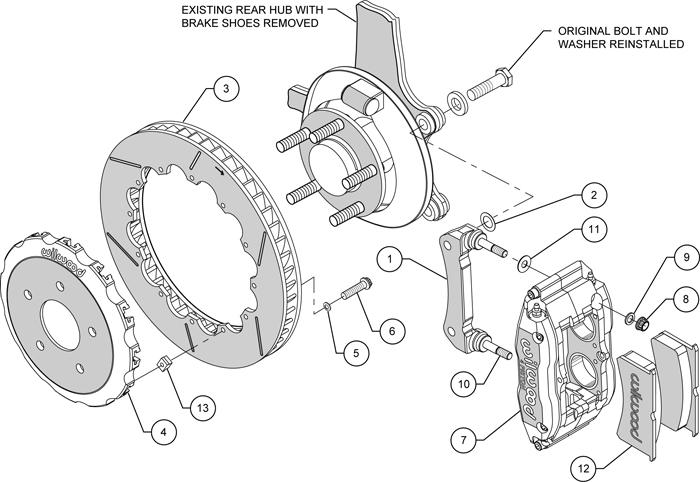

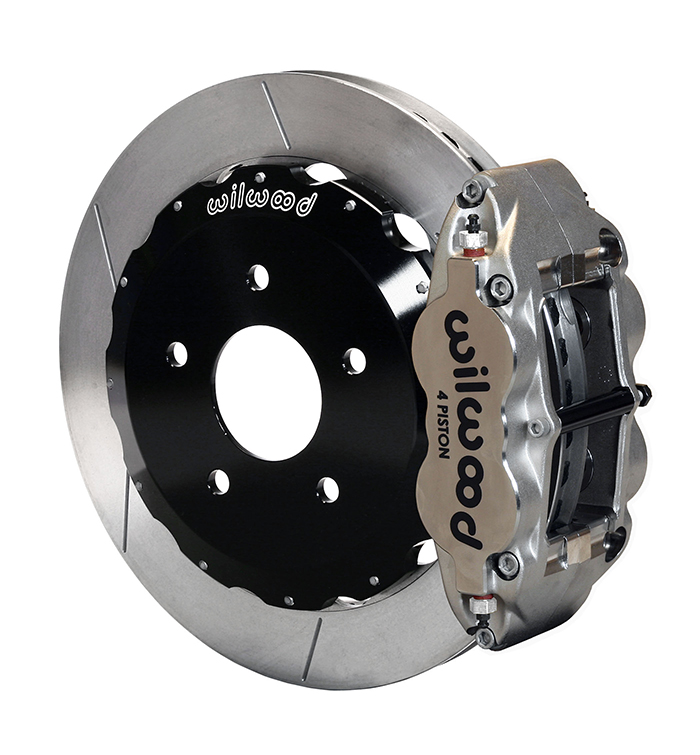

| Kit No. 141-13743.10638 |
Kit No. 141-14557-H |
|
|
|
FITMENT: It is up to the consumer to verify both vehicle and wheel fit. Application data is available by clicking the HELP ME INSTALL IT link for both front and rear kits. Wheel fit data can be viewed on page 3 of that pdf. It is up to the consumer to determine the suitablity of use for any and all products upon their vehicle. TCE makes no claim to fit beyond the data referenced above.
Unsure?: If you are unsure of the fit or application please call or email so we can help you select the proper kit!
*SHIPPING: Free Ground UPS in continental USA only. No out of country sales. Please call or email for all others.
TERMS AND CONDITIONS: All sales subject to 20% restocking fee. Consumer will pay all return shipping. No credit will be given for installed, mishandled or damaged good.
Complete Front and Rear 4X Big Brake Kits
These 13 and 14" front and rear kits feature the Forged Narrow Superlite line of calipers offering a good balance of street creed and low profile for optimum wheel fit. Ideal for buyers of street, autocross and light track day use where weight savings trump overall mass. For the more demanding driver all kits are availabe with Wilwood's ThermLock Piston Technology for a minimal up charge. All kits include our own dedicated SS braided hose kits with no chassis adapters necessary.
These 14.25 and 15" front and rear kits feature the Aerolite line of calipers with larger bodies and brake pads providing greater stiffness and pad life for the demands of the track user. Requires 18 and 19" wheels (for the 15" kit) these kits while very streetable enhance all day track use with far greater rotor mass. For the more demanding driver all kits are availabe with Wilwood's ThermLock Piston Technology for a minimal up charge. All kits include our own dedicated SS braided hose kits with no chassis adapters necessary.
For dedicated track day users these Aerolite caliper shod kits come prefit with Thermlock pistons and optional Nickel finish for improved thermal benefits as well as the 6620 (20mm) brake pads for longer life. Also available by special order: a four piston version of these kits for sanctioning bodies limiting piston quantity in their rule books.- call for details.
Complete Front and Rear 4X Big Brake Kits
These 13 and 14" front and rear kits feature the Forged Narrow Superlite line of calipers offering a good balance of street creed and low profile for optimum wheel fit. Ideal for buyers of street, autocross and light track day use where weight savings trump overall mass. For the more demanding driver all kits are availabe with Wilwood's ThermLock Piston Technology for a minimal up charge. All kits include our own dedicated SS braided hose kits with no chassis adapters necessary.
These 14.25 and 15" front and rear kits feature the Aerolite line of calipers with larger bodies and brake pads providing greater stiffness and pad life for the demands of the track user. Requires 18 and 19" wheels (for the 15" kit) these kits while very streetable enhance all day track use with far greater rotor mass. For the more demanding driver all kits are availabe with Wilwood's ThermLock Piston Technology for a minimal up charge. All kits include our own dedicated SS braided hose kits with no chassis adapters necessary.
For dedicated track day users these Aerolite caliper shod kits come prefit with Thermlock pistons and optional Nickel finish for improved thermal benefits as well as the 6620 (20mm) brake pads for longer life. Also available by special order: a four piston version of these kits for sanctioning bodies limiting piston quantity in their rule books.- call for details.
|
